Prepare Sprung Running Board For Installation - An88.30-D-0014-01TS
Model 907.6
except code CB2 (Comfort air suspension)
except code IR2 (Wheelbase 3250 mm)
except code JB6 (Parking package with 360-degree camera)
except code JB7 (Parking Package with reversing camera)
except code Q10 (Cross member for coupling)
except code Q20 (Trailer hitch (jaw-type))
except code Q22 (Trailer coupling, rigid coupling head)
except code Q24 (Trailer cross member NAFTA, towing capacity 5000Ibs)
except code Q50 (Trailer coupling with removable ball-type head)
except code QA0 (Trailer hitch 2.8 t towing capacity, bolted)
except code QA2 (NAFTA trailer crossmember, towing capacity 7500 lbs)
except code QA3 (Vehicle pre-installation for trailer load up to 3500 kg)
except code QA7 (Trailer hitch for increased towing capacity 3.5 t)
except code QA8 (Trailer hitch for increased towing capacity 2.8 t/3.0 t)
except code QA9 (Cross member with integral step)
except code QW1 (Omission of longitudinal member reinforcement)
except code R65 (Spare wheel bracket below frame end)
except code W73 (Rear door step)
except code W75 (Step, wide, at rear end)
except code ZG1 (Engageable all-wheel drive)
except code ZG3 (Engageable all-wheel drive with gear reduction)
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA88.30-N-1002-03TS | Screw/nut, leaf springs to plate | Nm | 94 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA88.30-N-1003-03TS | Screw/nut, leaf springs to running board | Nm | 55 |

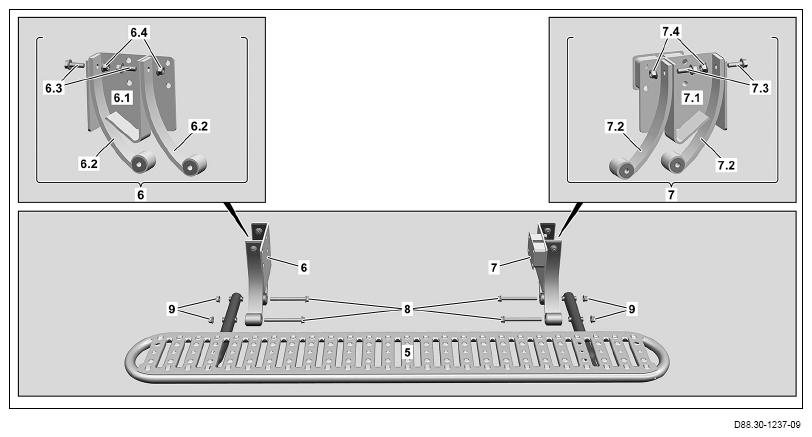

- Position leaf springs (6.2) on plate (6.1).
- Guide bolts (6.3), as shown, through leaf springs (6.2) and plate (6.1).
- Install nuts (6.4)
Counterhold bolts (6.3).
- Position leaf springs (7.2) on plate (7.1).
- Guide bolts (7.3), as shown, through leaf springs (7.2) and plate (7.1).
- Install nuts (7.4)
- Guide bolts (8), as shown, through spring elements (6, 7) and running board (5).
- Install nuts (9)
