Retrofit Front Mud Flaps - An88.30-D-0011TS

Model 907

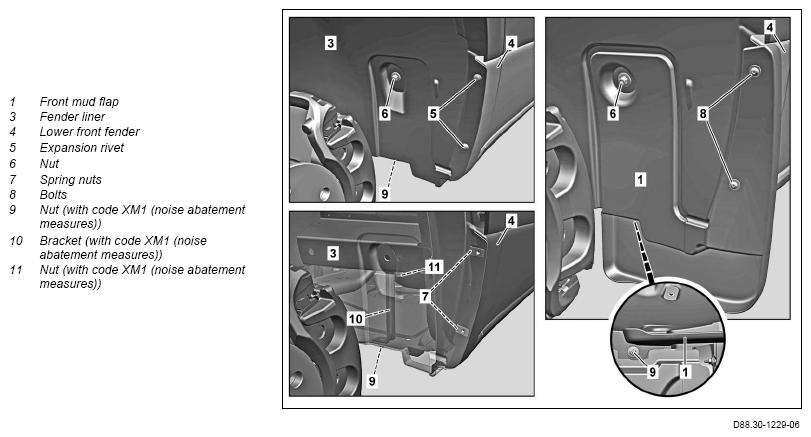

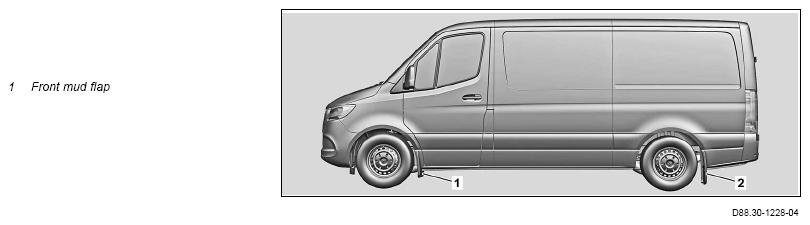

Shown on model 907.633, left side of vehicle

Shown on model 907.633 with code XM1 (noise abatement measures), left side of vehicle

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove
1	Raise vehicle. Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
			AR00.60-D-1000-04TS
2	Remove protective strips from the front right and left fenders.		AR88.80-D-1040TS
3	Remove right and left expansion rivets (5).
4	Remove right and left nuts (6).
5	Remove right and left nuts (9).	Model 907 with code XM1 (Noise reduction)
	Install
6	Retrofit adhesive films for the front right and left mud flaps (1).		AN88.30-D-0011-01TS
		Cleaner	*BR00.45-Z-1025-04A
7	Install right and left brackets (10).	Model 907 except code XM1 (Noise reduction) To do this, attach nuts (11).
8	Install right and left lock nuts (7).	To do this, lift corresponding fender liner (3).
9	Retrofit front right and left mud flaps (1).	To do this, screw in screws (8) and attach nuts (6, 9).
10	Lower vehicle.
11	Enter special equipment into online vehicle data card.	Designation of the affected special equipment: Code P47 (front mud flap). Attach note "front mud flap retrofitted as per AN88.30-D-0011 TS" to KG 88 under field organization texts.
