Passenger Seats - SN91.21-D-0001-01AL

Model 907

with code ZL3 (National version for Latin America)

Passenger seats in the bus

All variants of the passenger seats have been revised and reduce the weight by approx. 10 %.

The passenger seats in the bus are available in the Comfort, Luxury, and Premium designs.

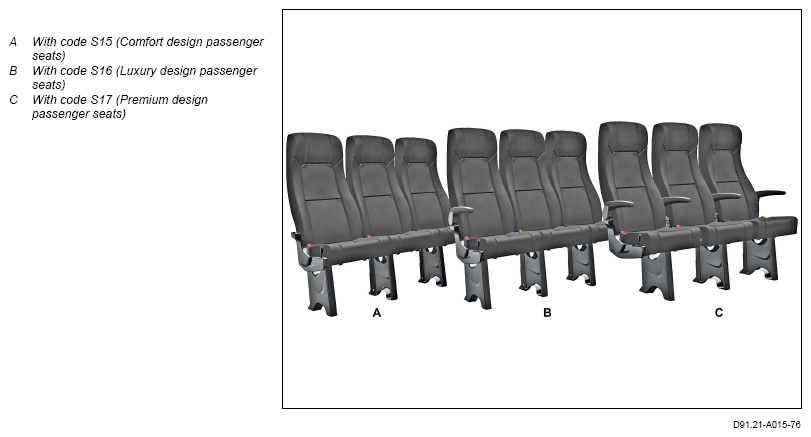

G13791940
OVERVIEW OF PASSENGER SEATS IN BUS

Code Version Equipment Seat upholstery
S15 (Comfort design passenger seats) 3-passenger bench seat (seat width 440 mm), 3-passenger bench seat, narrow (seat width 410 mm), 4-passenger bench seat (seat width 440 mm for inner seat and 410 mm for outer seat) Model 907 Code VF6 (ARTICO man-made leather black)
S16 (Luxury design passenger seats) Individual seat (seat width 440 mm), 2-passenger bench seat (seat width 440 mm), 3-passenger bench seat (seat width 440 mm), 3-passenger bench seat, narrow (seat width 410 mm) Armrest on aisle side, Adjustable seat backrest, Map pocket Code VF4 (Caluma black fabric)
Model 907 4-passenger bench seat (seat width 440 mm, inner seat) - Model 907
S17 (Premium design passenger seats) 2-passenger bench seat (seat width 470 mm), 3-passenger bench seat (seat width 470 mm) Armrests on all seats, Adjustable seat backrest, Map pocket Code VF5 (Leather/Caluma black fabric)

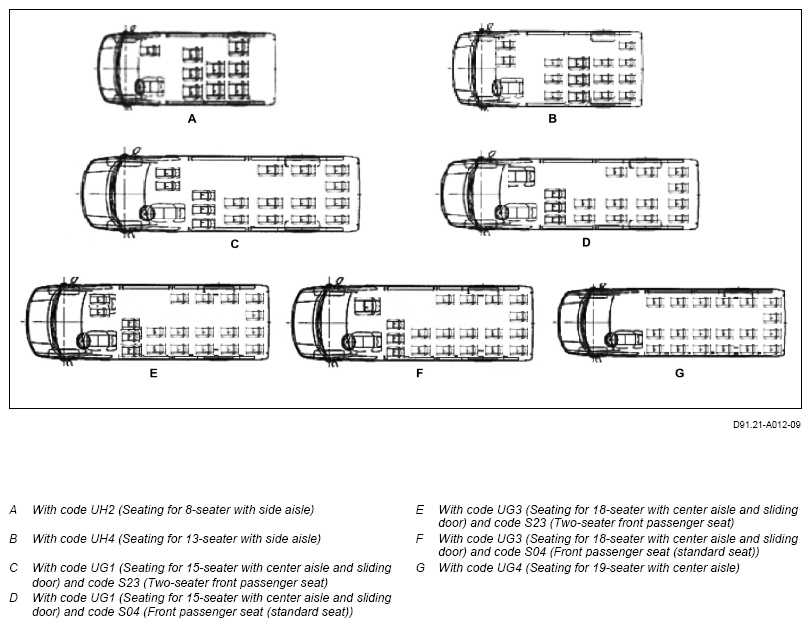

G13791941

Seating variants for buses

OVERVIEW OF SEATING VARIANTS FOR BUSES

Model Seating Number of passenger seats/front passenger seats Equipment
907.843 With code UH2 (Seating for 8-seater with side aisle) 8/1 With code S04 (Front passenger seat (standard seat)),
With code UT2 (Seat rail system),
With code S17 (Premium design passenger seats)
Model 907 With code UH4 (Seating for 13-seater with side aisle) 13/2 With code S23 (Two-seater front passenger seat),
With code UT1 (Rear seat mount, fixed point) or with code UT2 (Seat rail system),
With code S15 (Comfort design passenger seats), With code S16 (Luxury design passenger seats)
907.855 With code UG1 (Seating for 15-seater with center aisle and sliding door) 15/2 With code S23 (Two-seater front passenger seat),
With code UT1 (Rear seat mount, fixed point) or with code UT2 (Seat rail system),
With code S16 (Luxury design passenger seats)
Model 907 Model 907 15/1 With code S04 (Front passenger seat (standard seat)),
With code UT1 (Rear seat mount, fixed point) or with code UT2 (Seat rail system),
With code S16 (Luxury design passenger seats)
907.857 With code UG3 (Seating for 18-seater with center aisle and sliding door) 18/2 With code S23 (Two-seater front passenger seat),
With code UT1 (Rear seat mount, fixed point) or with code UT2 (Seat rail system),
With code S16 (Luxury design passenger seats)
Model 907 Model 907 18/1 With code S04 (Front passenger seat (standard seat)),
With code UT1 (Rear seat mount, fixed point) or with code UT2 (Seat rail system),
With code S16 (Luxury design passenger seats)
Model 907 With code UG4 (Seating for 19-seater with center aisle) 19/0 With code S99 (Omission of front passenger seat base), With code UT1 (Rear seat mount, fixed point) or with code UT2 (Seat rail system),
With code S16 (Luxury design passenger seats)
