Glue Heat Mat On Driver's Seat Cushion Padding - Ar91.30-D-0017-01TS

Model 907

with code S02 (Driver's seat)

with code H16 (Seat heater for driver)

with code SB9 (Driver's seat plus)

except code SB1 (Luxury driver's seat)

except code SB3 (Suspension seat, comfort version, driver's seat)

except code SF1 (Driver's seat electrically adjustable)

The attachment procedure must take place at an ambient temperature between 15 and 30 °C. It must be ensured that all affected component parts comply with these temperatures.

Otherwise adhesion problems can occur at the adhesively bonded connections.

Do not use any additional workshop equipment such as adhesives, adhesive films or similar.

Otherwise malfunctions can occur and people can be put at risk.

The complete adhesive strength is only produced by pressing the bonding surfaces.

The bonding surfaces of the front section of the heat mat (1) must not come into contact with foreign substances before or during the attachment procedure.

Otherwise damage occurs to the front section of the heat mat (1).

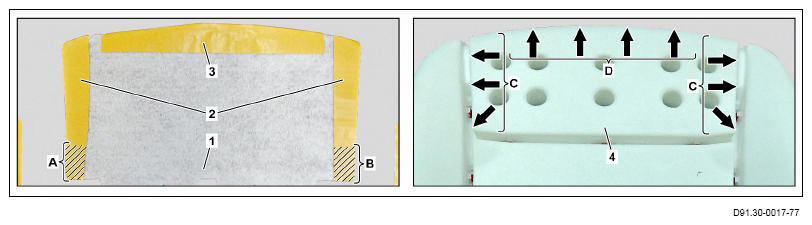

1. Detach films (2) on front section of heat mat (1) and fold down (areas A and B).

   WIS Service Media

   wsm://04 201900 60

   To do so, align outer edges of bonding surfaces (areas A and B) to edges (areas C).

   WIS Service Media

   wsm://04_201900_61

2. Detach foil (3) on front section of heat mat (1).
3. Position front section of heat mat (1) on seat cushion padding (4).

   The correct positioning of the front section of the heat mat (1) at the edges (areas C) must be ensured.

   Otherwise, this negatively affects durability and reliability.

4. Attach front section of heat mat (1) to seat cushion padding (4).

   Press on front section of heat mat (1) without any creases.

   Otherwise damage occurs to the front section of the heat mat (1).

   The correct positioning of the front section of the heat mat (1) at the edges (areas C and D) must be ensured.

   Otherwise, this negatively affects durability and reliability.

   For this, detach films (2) in stages from front section of heat mat (1) and press front section of heat mat (1) on seat cushion padding (4) (areas C and D).

   The bonding surfaces of the center section of the heat mat (1) must not come into contact with foreign substances before or during the attachment procedure.

   Otherwise damage occurs to the center section of the heat mat (1).

5. Press fabric tabs (5) into cutout (6).

   The retaining clips for the seat cushion cover must be exposed.

   Otherwise correct mounting of the seat cushion cover is not guaranteed.

   To do so, use long wedge.

   WIS Service Media

   wsm://04 201900 63

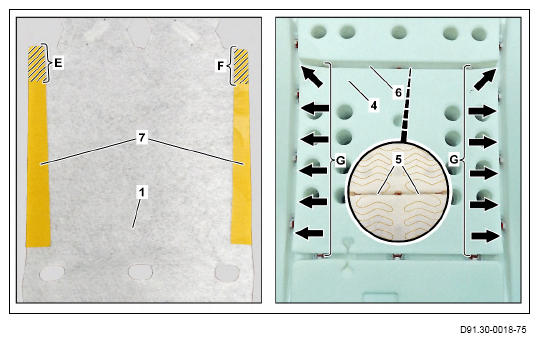

6. Detach films (7) on center section of heat mat (1) and fold down (areas E and F).

   WIS Service Media

   wsm://04_201900_62

7. Position center section of heat mat (1) on seat cushion padding (4).

   The correct positioning of the center section of the heat mat (1) at the edges (areas G) must be ensured. Otherwise, this negatively affects durability and reliability.

   To do so, align outer edges of bonding surfaces (areas E and F) to edges (areas G).

8. Attach center section of heat mat (1) to seat cushion padding (4).

   Press on center section of heat mat (1) without any creases.

   Otherwise damage occurs to the center section of the heat mat (1).

   The correct positioning of the center section of the heat mat (1) at the edges (areas G) must be ensured.

   Otherwise, this negatively affects durability and reliability.

   For this, detach films (7) in stages from center section of heat mat (1) and press center section of heat mat (1) on seat cushion padding (4) (areas G).

   WIS Service Media

   wsm://04 201900 64

   There must be no tension on the electrical wiring harness (8).

   Otherwise damage occurs to the rear section of the heat mat (1).

   The bonding surfaces of the rear section of the heat mat (1) must not come into contact with foreign substances before or during the attachment procedure.

   Otherwise damage occurs to the rear section of the heat mat (1).

   WIS Service Media

   wsm://04_201900_65

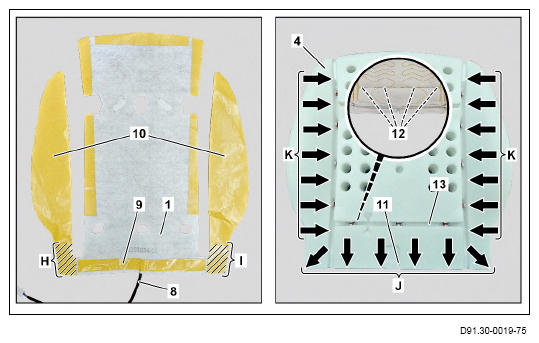

   Depiction of operation steps 10, 11, 12

9. Detach foil (9) on rear section of heat mat (1).
10. Detach films (10) on rear section of heat mat (1) and fold down (areas H and I).
11. Position rear section of heat mat (1) on seat cushion padding (4).

    The correct positioning of the rear section of the heat mat (1) at the edges (areas J) must be ensured.

    Otherwise, this negatively affects durability and reliability.

    To do so, align outer edges of the bonding surfaces (areas H and I) to edges (area J).

12. Route electrical wiring harness (8) on seat cushion padding (4).

    To do so, press electrical wiring harness (8) into cutout (11).

13. Attach rear section of heat mat (1) to seat cushion padding (4).

    Press on rear section of heat mat (1) without any creases.

    Otherwise damage occurs to the rear section of the heat mat (1).

    The correct positioning of the rear section of the heat mat (1) at the edges (areas K) must be ensured.

    Otherwise, this negatively affects durability and reliability.

    For this, detach films (10) in stages from rear section of heat mat (1) and press rear section of heat mat (1) on seat cushion padding (4) (areas J and K).

14. Press fabric tabs (12) into cutout (13).

    The retaining clips for the seat cushion cover must be exposed.

    Otherwise correct mounting of the seat cushion cover is not guaranteed.

    To do so, use long wedge.
