Remove/Install Center Seat Belt Of Passenger Bench Seat - Ar91.40-D-1208TS

MODEL 907.6/7

with code U62 (Seats pass. comp. 3-seat bench 1st row narrow)

with code U63 (Seats passenger compartm. 3seater bench 2nd row)

with code U64 (Seat pass. comp. 3seat bench 3rd row)

with code U65 (Seats pass. comp. 3seat bench 1st row)

with code UC3 (Pass. comp. seating, 3-seater bench/narrow 2nd row)

with code UD6 (Passenger seats, 4-seater bench 3rd row)

with code UR9 (3-passenger bench seat, Comfort, 3rd row)

with code UY1 (3-passenger bench seat, Comfort, 1st row, narrow)

with code UY2 (3-passenger bench seat, Comfort, 2nd row, narrow)

with code UY3 (4-passenger bench seat, Comfort, 3rd row)

with code UY4 (3-passenger bench seat, Comfort, 1st row)

with code UY5 (3-passenger bench seat, Comfort, 2nd row)

MODEL 907.745

with code U3S (Passenger compartment seats, 3-passenger bench seat, narrow, 3rd row)

with code U3Y (3-passenger bench seat, Comfort, 3rd row, narrow)

with code UD7 (Passenger compart. seating, 4-seater bench 4th row)

with code UY6 (4-passenger bench seat, Comfort, 4th row)

Shown with code U60 (Rear passenger compartment seats, 2-passenger bench seat, 1st row)

Shown with code U60 (Rear passenger compartment seats, 2-passenger bench seat, 1st row)

	Risk of injury  . Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove backrest padding (3)	Model 907.6/7 with code U62 (Rear passenger compartment seating, 3-passenger bench seat, 1st row, narrow) or with code U63 (Rear passenger compartment seating, 3-passenger bench seat, 2nd row) or with codeU64 (Rear passenger compartment seating, 3-passenger bench seat, 3rd row) or with code U65 (Rear passenger compartment seating, 3-passenger bench seat, 1st row) or with code UC3 (Rear passenger compartment seating, 3-passenger bench seat, 2nd row, narrow) or with code UD6 (Rear passenger compartment seating, 4-passenger bench seat, 3rd row) or with code UY3 (4-passenger bench seat, comfort, 3rd row) Model 907.745 with code U3S (Rear passenger compartment seating, 3-passenger bench seat, narrow, 3rd row) or with code UD7 (Rear passenger compartment seating, 4-passenger bench seat, 4th row) or with code UY6 (4-passenger bench seat, comfort, 4th row)	AR91.21-D-0002TSS
		Model 907.6/7 with code UR9 (3-passenger bench seat, comfort, 3rd row) or with code UY1 (3-passenger bench seat, comfort, 1st row, narrow) or with code UY2 (3-passenger bench seat, comfort, 2nd row, narrow) or with code UY4 (3-passenger bench seat, comfort, 1st row) or with code UY5 (3-passenger bench seat, comfort, 2nd row) model 907.745 with code U3Y (3-passenger bench seat, comfort, 3rd row, narrow)	AR91.21-D-0013TSK

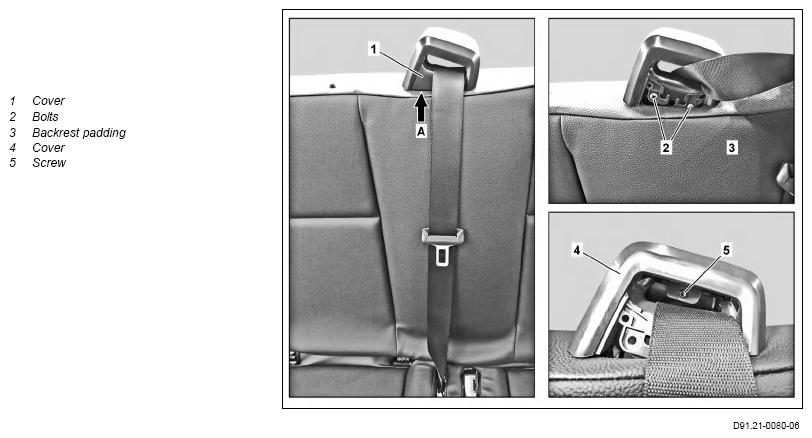

2	Remove cover (1)	Model 907.6/7 with code UD6 (Passenger seats, 4-seater bench 3rd row) Model 907.6/7 with code UY3 (4-passenger bench seat, Comfort, 3rd row) Model 907.745 with code UD7 (Passenger compart. seating, 4-seater bench 4th row) Model 907.745 with code UY6 (4-passenger bench seat, Comfort, 4th row) Remove cover (1). To do so, unclip cover (1) with long wedge starting at position (arrow A). Long wedge	Fig 1
3	Remove cover (4)	Model 907.6/7 with code UD6 (Passenger seats, 4-seater bench 3rd row) Model 907.6/7 with code UY3 (4-passenger bench seat, Comfort, 3rd row) Model 907.745 with code UD7 (Passenger compart. seating, 4-seater bench 4th row) Model 907.745 with code UY6 (4-passenger bench seat, Comfort, 4th row) Remove corresponding trim (4). To do this, remove screws (2, 5). At the left screw (2), press seat backrest padding (3) downwards until the left screw (2) is accessible.
4	Remove cover (6)	Model 907.6/7 with code UD6 (Passenger seats, 4-seater bench 3rd row) Model 907.6/7 with code UY3 (4-passenger bench seat, Comfort, 3rd row) Model 907.745 with code UD7 (Passenger compart. seating, 4-seater bench 4th row) Model 907.745 with code UY6 (4-passenger bench seat, Comfort, 4th row) Remove corresponding trim (6). To do so, press seat backrest padding (3) downwards and unclip trim (6) from seat backrest frame (7).

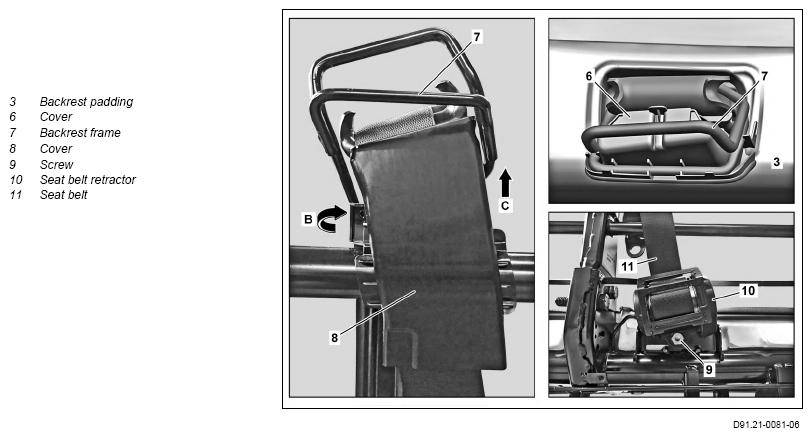

5	Remove trim (8) from seat backrest frame (7) (arrows B, C)	Model 907.6/7 with code UD6 (Passenger seats, 4-seater bench 3rd row) Model 907.6/7 with code UY3 (4-passenger bench seat, Comfort, 3rd row) Model 907.745 with code UD7 (Passenger compart. seating, 4-seater bench 4th row) Model 907.745 with code UY6 (4-passenger bench seat, Comfort, 4th row) Remove corresponding trim (8).
6	Remove seat belt (11) with seat belt retractor (10) Notes on self-locking nuts and bolts	Model 907.6/7 with code UD6 (Passenger seats, 4-seater bench 3rd row) Model 907.6/7 with code UY3 (4-passenger bench seat, Comfort, 3rd row) Model 907.745 with code UD7 (Passenger compart. seating, 4-seater bench 4th row) Model 907.745 with code UY6 (4-passenger bench seat, Comfort, 4th row) Remove corresponding seat belt (11) with seat belt retractor (10).	AH00.00-N-0001-01A
		To do s, remove bolt (9). Then remove seat belt retractor (10) upwards. Bolt, seat belt retractor to seat frame for passenger bench seat	*BA91.40-N-1003-02TS
7	Install in the reverse order
	Check
8	Perform function check of seat belt (11)	Model 907.6/7 with code UD6 (Passenger seats, 4-seater bench 3rd row) Model 907.6/7 with code UY3 (4-passenger bench seat, Comfort, 3rd row) Model 907.745 with code UD7 (Passenger compart. seating, 4-seater bench 4th row) Model 907.745 with code UY6 (4-passenger bench seat, Comfort, 4th row) Perform function check of corresponding seat belt (11).

Number	Designation		Model 907.6/7
BA91.40-N-1003-02TS	Bolt, seat belt retractor to seat frame for passenger bench seat	Nm	40
