Remove/Install Front Seat Side Airbag - Ar91.60-D-0699TS

Model 907

with code SH1 (Thorax/pelvis side-impact airbag, driver)

Model 907

with code SH2 (Thorax/pelvis side-impact airbag, front passenger)

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove seat backrest shell for front seat.		AR91.10-D-1916TS
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3	Detach ground line of on-board electrical system battery.	Before conducting any maintenance operations, switch off ignition, disconnect battery negative pole then wait for at least 3 minutes.	AR54.10-D-0029TS
4	Detach ground line from additional battery.	Model 907 with code E2I (Auxiliary battery for retrofit consumers, vehicle interior), model 907 with code E2M (Auxiliary battery for retrofit consumers, engine compartment) except code E2I (Auxiliary battery for retrofit consumers, interior compartment) Model 907 with code E2I (Auxiliary battery for retrofit consumer, interior)	AR54.10-D-0004TS
		Model 907 with code E2M (Auxiliary battery for retrofit consumer, engine compartment) except code E2I (Auxiliary battery for retrofit consumer, interior)	AR54.10-D-0004TSR

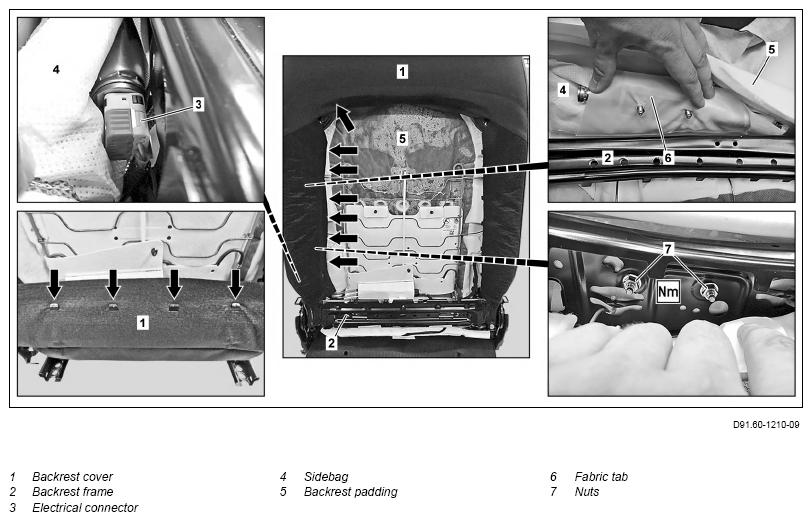

5	Partially remove seat backrest cover (1) from seat backrest frame (2).	: Check for correct installation position of seat backrest cover (1).
6	Detach seat backrest padding (5) in left lower area from seat backrest frame (2).	Carefully detach seat backrest padding (5) from seat backrest frame (2). Otherwise, the seat backrest padding (5) will be damaged. : Check for correct installation position of seat backrest padding (5).
7	Release and disconnect electrical connector (3) using a suitable tool.
8	Remove nuts (7). Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		Nut sidebag to backrest frame	*BA91.60-D-1006-01TS
9	Remove side airbag (4).	Carefully detach seat backrest padding (5) from seat backrest frame (2). Otherwise, the seat backrest padding (5) will be damaged. To do so, detach seat backrest padding (5) from seat backrest frame (2) (arrows). Finally, remove side airbag (4) from seat backrest frame (2) and remove fabric tab (6) of seat backrest cover (1) from side airbag (4).
10	Install in the reverse order.
