Remove/Install Left Seat Belt Buckle Of Front Passenger Bench Seat - Ar91.40-D-1529TS

Model 907

with code S23 (Co-driver's seat double seat)

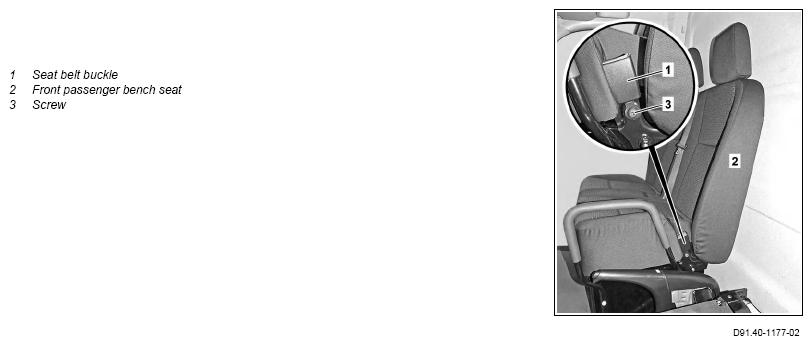

G13792145
  Notes on carrying out repair work in the vehicle interior   AH68.00-N-0001-01S
REMOVINGINSTALLING Remove/install
1 Remove left seat belt buckle (1) from front passenger bench seat (2)
Notes on self-locking nuts and bolts IMPORTANT For this, remove the screw (3). AH00.00-N-0001-01A
  TORQUE SPECIFICATION Bolt, seat belt buckle on seat frame for front passenger bench seat *BA91.40-N-1009-03TS
2 Install in the reverse order
INSPECT Check
3 Check seat belt buckle (1) for proper operation
TORQUE SPECIFICATION SEAT BELT BUCKLE, SEAT BELT, SEAT BELT END FITTING, SEAT BELT HEIGHT ADJUSTER

Number Designation Model 907
BA91.40-N-1009-03TS Bolt, seat belt buckle on seat frame for front passenger bench seat Nm 35
