Remove/Install Seat Anchorage At Rear On Passenger Bench Seat - Ar91.21-D-3773TS

MODEL 907.6/7

with code U60 (Seats passenger compartm. 2seater bench 1st row)

with code U61 (2-passenger bench seat, 2nd row)

with code U62 (Seats pass. comp. 3-seat bench 1st row narrow)

with code U63 (Seats passenger compartm. 3seater bench 2nd row)

with code U64 (Seat pass. comp. 3seat bench 3rd row)

with code U65 (Seats pass. comp. 3seat bench 1st row)

with code U69 (2-passenger bench seat, 3rd row)

with code UC3 (Pass. comp. seating, 3-seater bench/narrow 2nd row)

with code UD6 (Passenger seats, 4-seater bench 3rd row)

with code UR8 (Pass. compt. seats, 2seat bench 2nd row, luxury)

with code UR9 (3-passenger bench seat, Comfort, 3rd row)

with code US1 (2-passenger bench seat, comfort, 1st rear row)

with code UT4 (Passenger compartment seats, 2-passenger bench seat, 3rd row, Comfort)

with code UY1 (3-passenger bench seat, Comfort, 1st row, narrow)

with code UY2 (3-passenger bench seat, Comfort, 2nd row, narrow)

with code UY3 (4-passenger bench seat, Comfort, 3rd row)

with code UY4 (3-passenger bench seat, Comfort, 1st row)

with code UY5 (3-passenger bench seat, Comfort, 2nd row)

MODEL 907.745

with code U3S (Passenger compartment seats, 3-passenger bench seat, narrow, 3rd row)

with code U3Y (3-passenger bench seat, Comfort, 3rd row, narrow)

with code UD7 (Passenger compart. seating, 4-seater bench 4th row)

with code UY6 (4-passenger bench seat, Comfort, 4th row)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove respective passenger bench seat.		AR91.21-D-4425TS

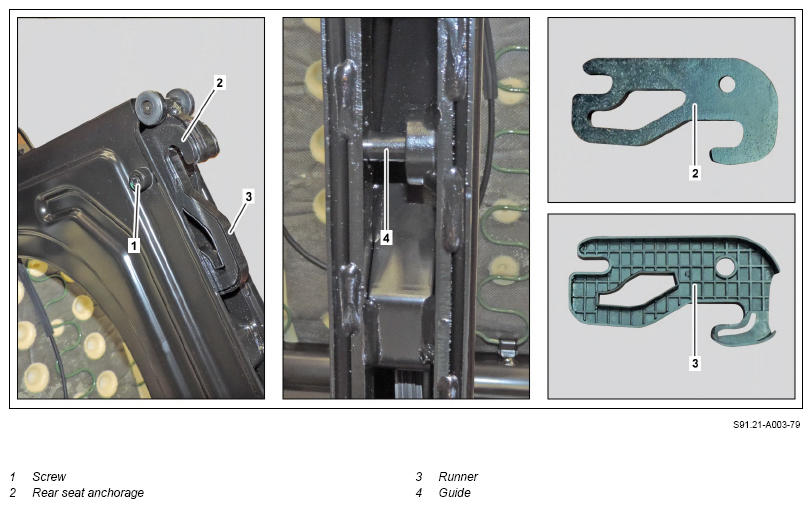

2	Remove screw/bolt (1).	Screw, rear seat anchorage to passenger bench seat	*BA91.21-N-1007-01TS
3	Loosen rear seat anchorage (2) from rear passenger bench seat using a suitable too', swivel out and remove.	Position rear seat anchorage (2) on guide (4) and insert.
	Check
4	Check runner (3) on rear seat anchorage (2) for damage or wear.	If there is a problem: ↓ Remove second seat anchorage (2) from passenger bench seat; remove and replace runners (3) of seat anchorages (2). Always replace runners (3) on rear seat anchorages (2) of respective passenger bench seat in pairs.
5	Install in the reverse order.

PASSENGER BENCH SEAT

Number	Designation		Model 907.6/7
BA91.21-N-1007-01TS	Screw, rear seat anchorage to passenger bench seat	Nm	70
