Remove/Install Seat Belt On B-Pillar - Ar91.40-D-1015TS
Model 907
Shown on vehicle except code SB3 (Comfort version suspension seat, driver's seat), except code SB4 (Comfort version suspension seat, front passenger seat) and except code SL1 (Front passenger seat with bunk function)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury . Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||

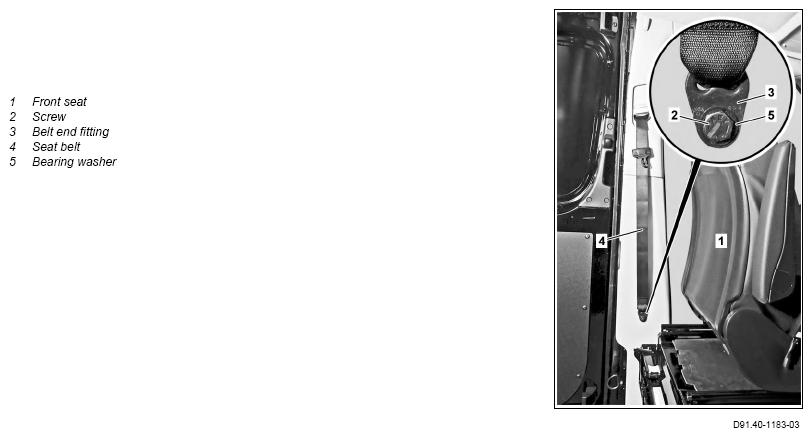

| 1 | Adjust front seat (1) far enough until screw (2) is accessible. | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Detach ground line of on-board electrical system battery. | AR54.10-D-0029TS | |
| 4 | Detach ground line from additional battery. | Model 907 with code E2I (Auxiliary battery for retrofitted consumers, interior) |
AR54.10-D-0004TS |
| Model 907 with code E2M (Auxiliary battery for retrofit consumers, engine compartment) except code E2I (Auxiliary battery for retrofitted consumers, interior) |
AR54.10-D-0004TSR | ||
| 5.1 | Unscrew screw (2) and remove seat belt end fitting (3) of seat belt (4) from B-pillar. | Model 907 except code SB3 (Suspension seat, comfort version, driver's seat) except code SB4 (Suspension seat, comfort version, co-driver's seat) except code SL1 (Reclining co-driver's seat) replace damaged bearing washer (5). |
*BA91.40-N-1002-03TS |
| 5.2 | Remove seat belt end fitting (3) of seat belt (4) from front seat (1). | Model 907 with code SB3 (Suspension seat, comfort version, driver's seat) Model 907 with code SB4 (Suspension seat, comfort version, co-driver's seat) |
|
| Model 907 with code SL1 (Co-driver's seat) |
AR91.40-D-1030-01TS | ||
| *BA91.40-N-1005-03TS | |||
| Fig 1 | |||
| 6 | Remove B-pillar trim. | Remove/install B-pillar trim Model 907.1/6 | AR68.30-D-4705TS |
| Remove/install B-pillar trim on front passenger sideModel 907.2/7 | AR68.30-D-4706TS | ||
| Remove/install B-pillar trim on driver's sideModel 907.2/7 | AR68.30-D-4707TS | ||
| 7 | Remove seat belt (4) from seat belt height adjuster. | AR91.40-D-0631-01TS | |
Do not install seatbelt (4) when twisted. Otherwise, the seat belt (4) will malfunction. |
*BA91.40-N-1006-03TS | ||
| 8 | Remove seat belt height adjuster. | When replacing seat belt height adjuster. | AR91.40-D-0631-01TS |
| *BA91.40-N-1003-03TS | |||
| 9 | Remove seat belt retractor on B-pillar with seat belt (4). | AR91.40-D-0631-02TS | |
| *BA91.40-N-1004-03TS | |||
| 10 | Install in the reverse order. | ||
| Check | |||
| 11 | Perform function check of seat belt height adjuster. |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.40-N-1002-03TS | Bolt, belt end fitting to B-pillar | Nm | 35 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.40-N-1003-03TS | Bolt, belt height adjuster to B-pillar | Nm | 25 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.40-N-1004-03TS | Bolt, seat belt retractor to B-pillar | Nm | 35 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.40-N-1005-03TS | Bolt, seat belt end fitting on seat frame for front seat | Nm | 35 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.40-N-1006-03TS | Bolt, belt guide to belt height adjuster | Nm | 35 |
