Remove/Install Seat Cushion Padding Of Passenger Bench Seat With Seat Backrest Adjustment - Ar91.21-D-0012TSK

MODEL 907.6/7

with code UR8 (Pass. compt. seats, 2seat bench 2nd row, luxury)

with code UR9 (3-passenger bench seat, Comfort, 3rd row)

with code US1 (2-passenger bench seat, comfort, 1st rear row)

with code UT4 (Passenger compartment seats, 2-passenger bench seat, 3rd row, Comfort)

with code UY1 (3-passenger bench seat, Comfort, 1st row, narrow)

with code UY2 (3-passenger bench seat, Comfort, 2nd row, narrow)

with code UY4 (3-passenger bench seat, Comfort, 1st row)

with code UY5 (3-passenger bench seat, Comfort, 2nd row)

MODEL 907.745

with code U3Y (3-passenger bench seat, Comfort, 3rd row, narrow)

Shown with code UR9 (3-passenger bench seat, comfort, 3rd row)

	Remove/install
1	Remove passenger bench seat.		AR91.21-D-4425TS
2	Remove left seat belt buckle of passenger bench seat.		AR91.40-D-1487TS
3	Remove center seat belt buckle of passenger bench seat.	Model 907.6/7 with code UR9 (3-passenger bench seat, Comfort, 3rd row) Model 907.6/7 with code UY1 (3-passenger bench seat, Comfort, 1st row, narrow) Model 907.6/7 with code UY2 (3-passenger bench seat, Comfort, 2nd row, narrow) Model 907.6/7 with code UY4 (3-passenger bench seat, Comfort, 1st row) Model 907.6/7 with code UY5 (3-passenger bench seat, Comfort, 2nd row) Model 907.745 with code U3Y (3-passenger bench seat, Comfort, 3rd row, narrow)	AR91.40-D-1488TS
4	Remove right seat belt buckle of passenger bench seat.		AR91.40-D-1489TS
5	Remove all seat belt end fittings of passenger bench seat.		AR91.40-D-1030-02TS
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		Bolt, seat belt end fitting to seat frame for passenger bench seat	*BA91.40-N-1002-02TS
		Long wedge	Fig 1
6	Remove passenger bench seat cup holder.	Model 907.6/7 with code FF3 (Cup holder in rear passenger compartment)	AR91.21-D-0017TS

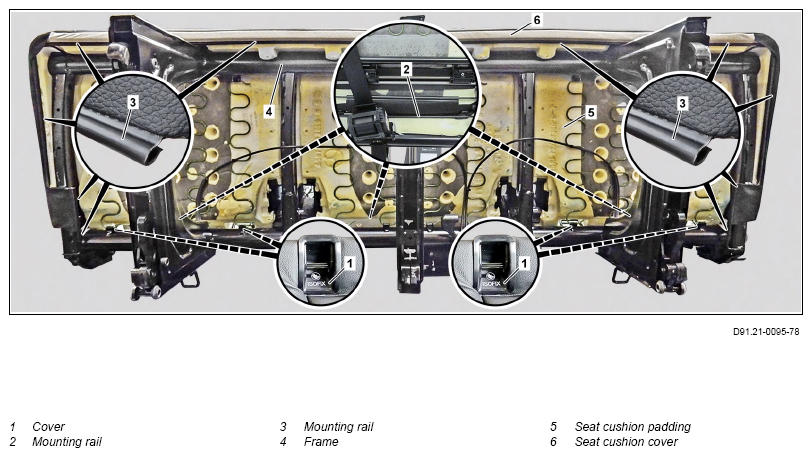

7	Remove trims (1).	To do so, remove trims (1) upwards. Long wedge	Fig 1
8	Remove trims on seat backrests.	Do not remove seat backrest shells. Until the mounting rails (2) are accessible.	AR91.21-D-0016TSK
9	Remove mounting rails (2, 3) on frame (4)	Extraction hook	Fig 2
10	Remove seat cushion padding (5) with seat cushion cover (6).	Installation  : Ensure that the seat cushion cover (6) and seat cushion padding (5) are correctly seated.

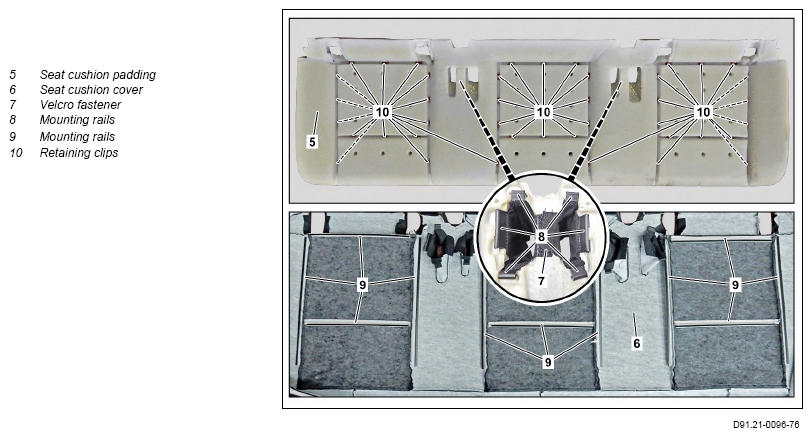

11	Remove seat cushion cover (6) from seat cushion padding (5).	When replacing the seat cushion padding (5) or the seat cushion cover (6). To do so, open velcro fasteners (7) and unclip mounting rails (8, 9) at retaining clips (10) of seat cushion padding (5). Installation  : Ensure that the seat cushion cover (6) is correctly seated on the seat cushion padding (5). Check retaining clips (10). If a retaining clip (10) is damaged. ↓ Install new seat cushion padding (5).
12	Install in the reverse order.

SEAT BELT BUCKLE, SEAT BELT END FITTING, SEAT BELT

Fig 1: Long Wedge (115 589 03 59 00)

Fig 2: Extraction Hook (140 589 02 33 00)
