Remove/Install Pedal Assembly - AR29.10-P-0300LWE

Model 205 with transmission 722, 724, 725

Model 213 with transmission 725

Model 253 with transmission 724, 725

Model 293

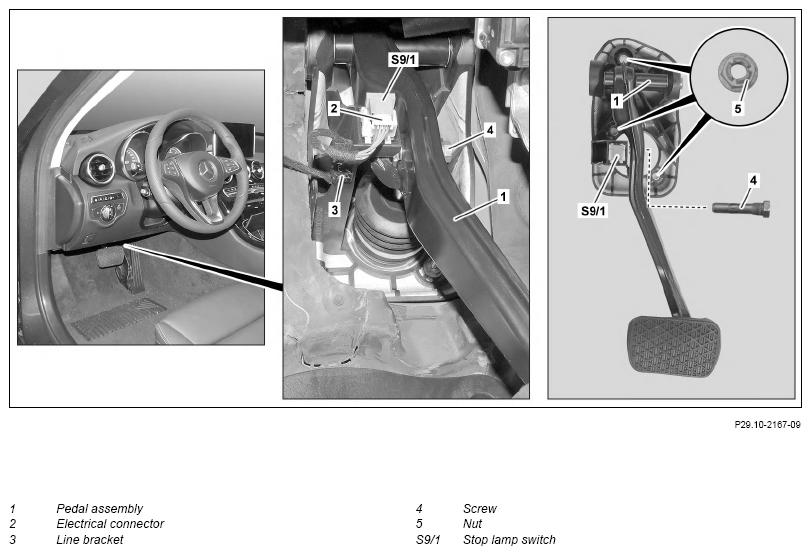

Fig 1: Pedal Assembly Component Location - Model 205 W/ Transmission 722

Courtesy of MERCEDES-BENZ USA

Shown on model 205 with transmission 722

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1.1	Remove instrument panel.	Model 205 with transmission 722, 724, 725 with code 463 (Head-up display)
			AR68.10-P-1000LW
1.2	Remove trim at bottom for instrument panel or driver's side.	Model 205 with transmission 722, 724, 725 except code 463 (Head-up display) Model 213 with transmission 725 Model 253 with transmission 724, 725 Model 293
		Model 293	AR68.10-P-1501EQ
		Model 205 with transmission 722, 724, 725 except code 463 (Head-up display) Model 253 with transmission 724, 725	AR68.10-P-1500LW
		Model 213 with transmission 725	AR68.10-P-1501LWE
2.1	Remove brake light switch (S9/1).	Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with transmission 722, 724, 725 except code B01 (48V technology) Model 213 (except 213.016/050/053/054/153/155/216/253) with transmission 725 except code B01 (48V technology) Model 253 (except 253.311/353/354/911/953/954) with transmission 724, 725 except code B01 (48V technology)
			AR42.10-P-0040EW
2.2	Disconnect electrical connector of pedal angle sensor.	Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with transmission 722, 724, 725 with code B01 (48V technology) Model 205.012/047/147/212/247 with transmission 724 Model 205.013/053/054/213/253, 213.016/050/053/054/153/155/216/253 with transmission 725 Model 213 (except 213.016/050/053/054/153/155/216/253) with transmission 725 with code B01 (48V technology) Model 253 (except 253.311/353/354/911/953/954) with transmission 724, 725 with code B01 (48V technology) Model 253.311/353/354/911/953/954 with transmission 724, 725 Model 293 The pedal angle sensor is located on the pedal assembly (1) in the upper area of the brake pedal.
3	Unhook line bracket (3) and place to one side with electric line.
4	Unscrew bolt (4).	Replace screw (4).
		Brake booster to brake pedal	*BA43.10-P-1002-01J
5	Remove nuts (5).	Nut, pedal assembly to firewall	*BA29.10-P-1001-02G
6	Remove pedal assembly (1).
7	Install in the reverse order.
