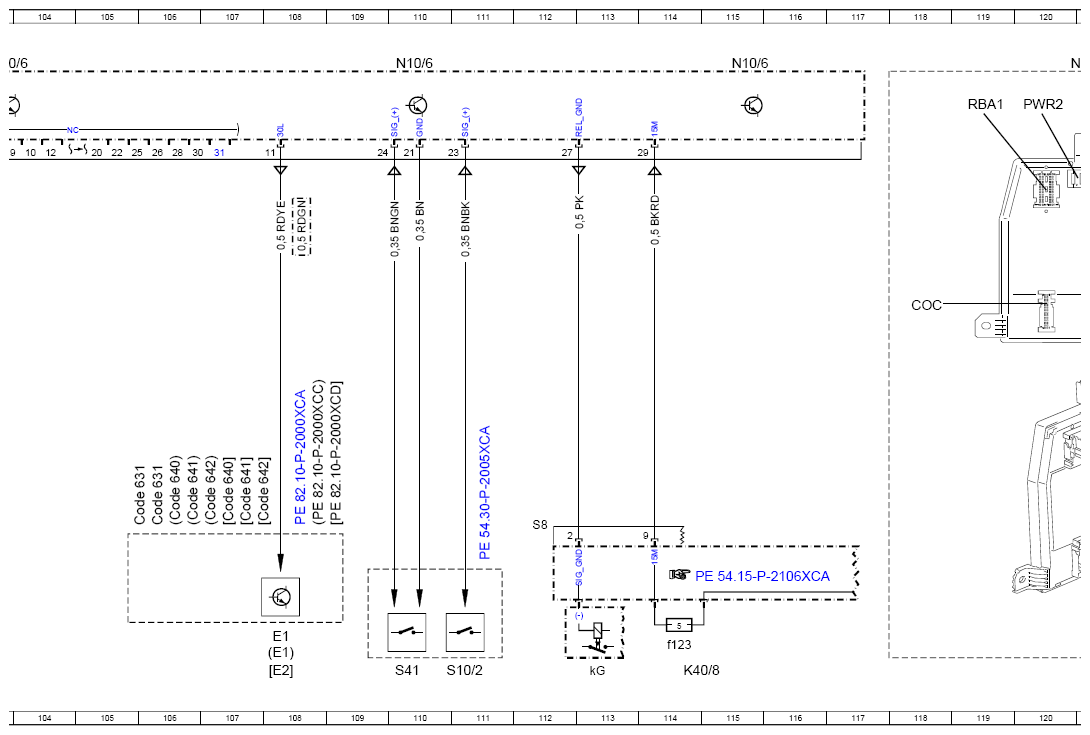

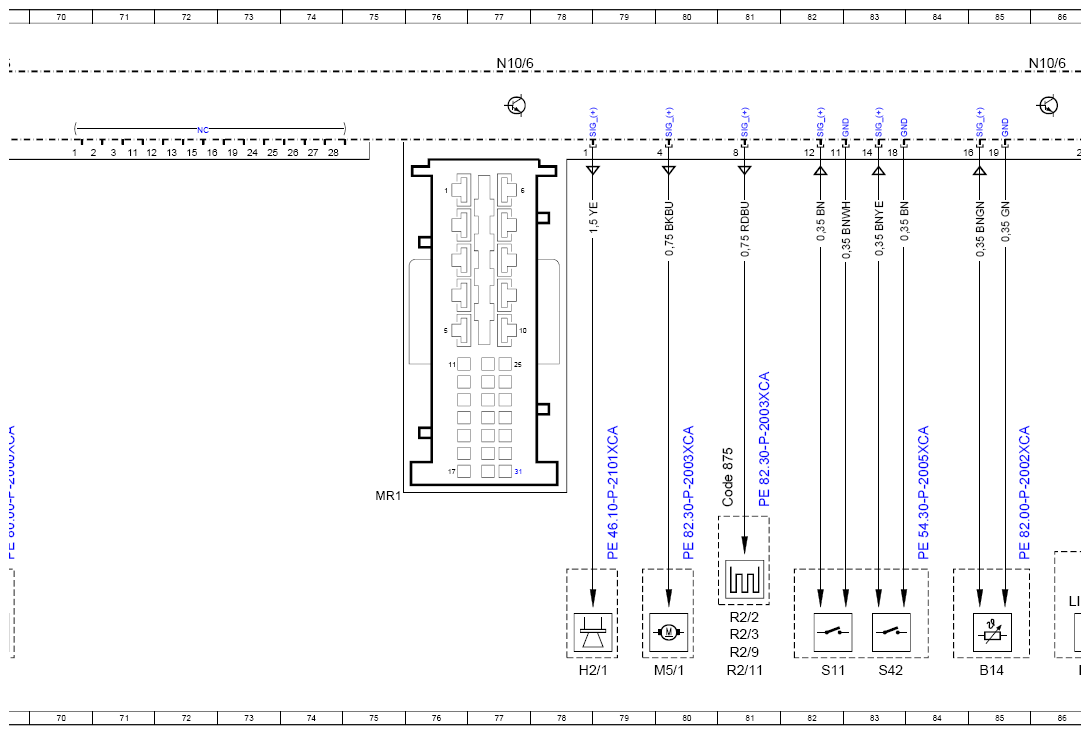

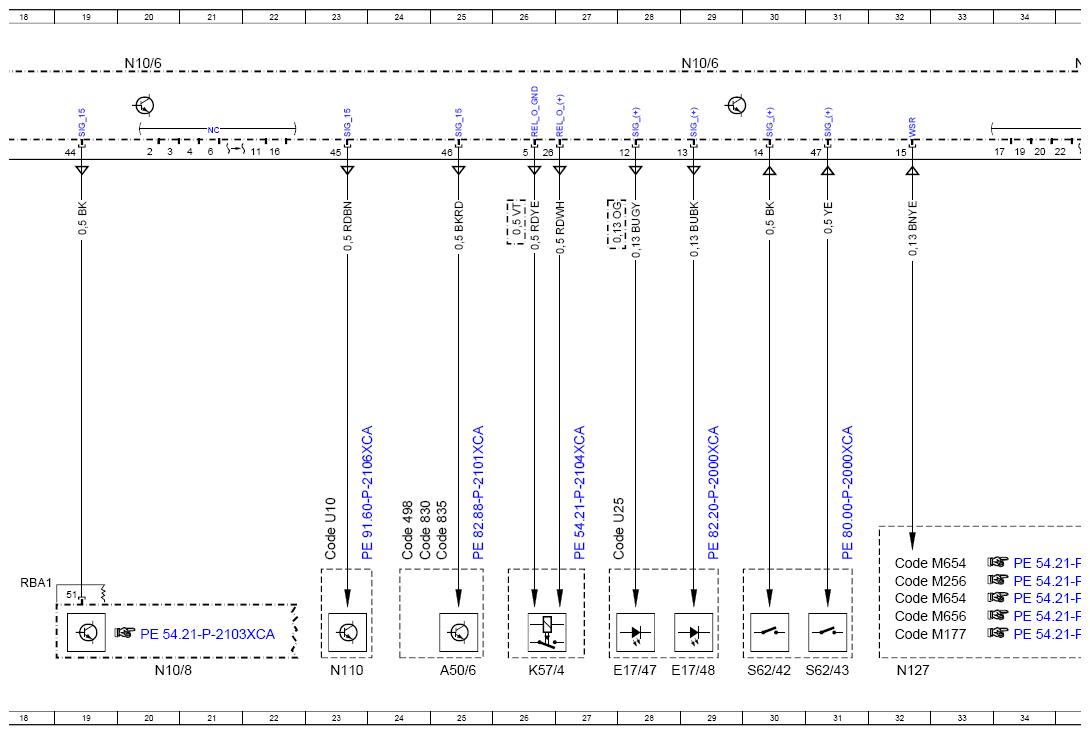

Wiring Diagram For Front Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2114-97XCA
Model 257, 290 as of model year 2021 Control unit N10/6
| Code: | Designation: | Position: |
|---|---|---|

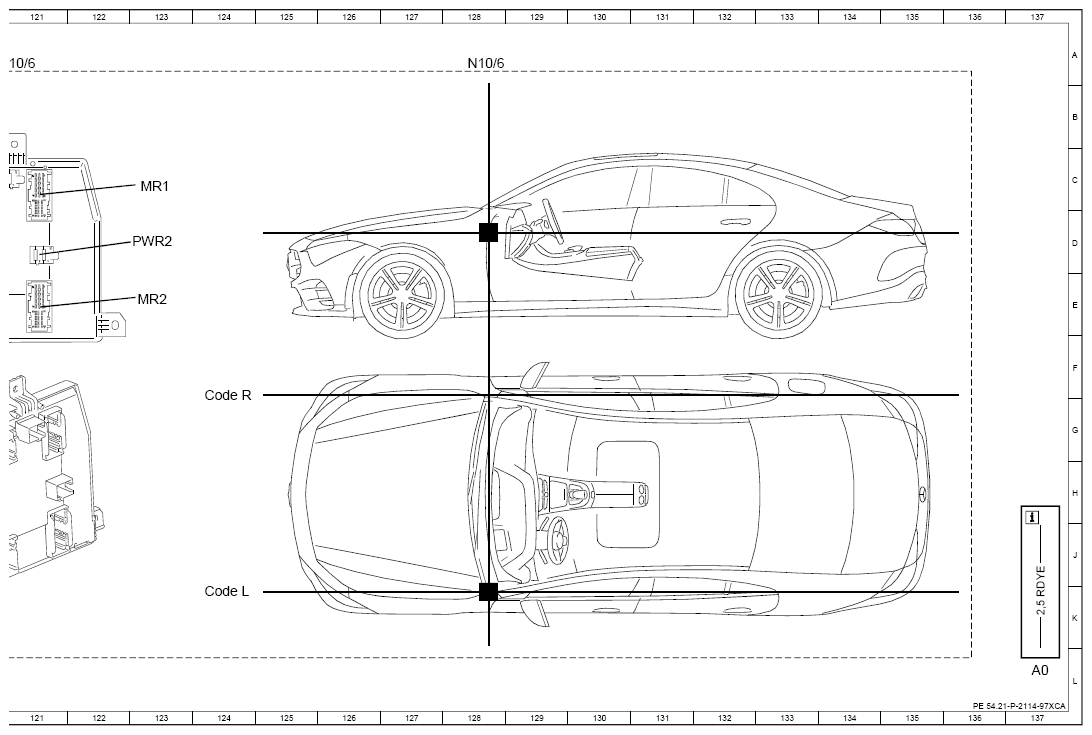

| A0 | Use of wiring diagrams | 137L |
| A50/6 | Dedicated Short-Range Communications control unit | 25L |
| B14 | Outside temperature sensor | 85L |
| B38/2 | Rain/light sensor with additional functions | 39L |
| B95 | Battery sensor | 41K |
| CAN B | Interior CAN | 16K |
| Code 051 | YoM 20/2 | 100H |
| Code 224 | Design rear individual seats | 49J |
| Code 301 | Smoker's package | 44L |
| Code 464 | Digital instrument cluster full display | 66J |
| Code 464 | Digital instrument cluster full display | 66J |
| Code 464 | Digital instrument cluster full display | 66J |
| Code 498 | Japan version | 24J |
| Code 631 | Static LED headlamp, left-hand traffic | 88J |
| Code 631 | Static LED headlamp, left-hand traffic | 88J |
| Code 631 | Static LED headlamp, left-hand traffic | 106J |
| Code 631 | Static LED headlamp, left-hand traffic | 106J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 88J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 89J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 106J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 107J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 89J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 89J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 106J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 107J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 90J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 89J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 107J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 108J |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 100H |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 101J |
| Code 802 | YoM 21/1 | 101J |
| Code 830 | Additional parts for China vehicles | 25J |
| Code 835 | Additional parts for South Korea vehicles | 25J |
| Code 875 | Heated windshield washer system | 81H |
| Code 887 | Separate trunk lid lock | 69J |
| Code 891 | Premium ambient lighting | 44L |
| Code 891 | Premium ambient lighting | 64G |
| Code 891 | Premium ambient lighting | 59J |
| Code 891 | Premium ambient lighting | 59H |
| Code 891 | Premium ambient lighting | 50J |
| Code B01 | 48V technology | 40L |
| Code B01 | 48V technology | 41H |
| Code B01 | 48V technology | 42H |
| Code F257 | MODEL SERIES 257 | 61J |
| Code F257 | MODEL SERIES 257 | 65G |
| Code F290 | Model series 290 | 62J |
| Code F290 | Model series 290 | 47J |
| Code F290 | Model series 290 | 65G |
| Code F290 | Model series 290 | 49J |
| Code L | LEFT-HAND DRIVE | 4E |
| Code L | LEFT-HAND DRIVE | 9E |
| Code L | LEFT-HAND DRIVE | 124K |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 32K |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 32J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 32J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 32K |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE M656 | 32K |
| Code R | RIGHT-HAND DRIVE | 4F |
| Code R | RIGHT-HAND DRIVE | 9F |
| Code R | RIGHT-HAND DRIVE | 124G |
| Code U10 | Automatic front passenger airbag shutoff | 23J |
| Code U25 | Illuminated door sills | 28J |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 40L |
| E1 | Left front lamp unit | 90L |
| E1 | Left front lamp unit | 108K |
| E1 | Left front lamp unit | 108L |
| E13/1 | Glove box lamp | 63L |
| E17/15 | Right front footwell lamp | 59L |
| E17/15 | Right front footwell lamp | 65J |
| E17/16 | Left front footwell lamp | 59L |
| E17/16 | Left front footwell lamp | 65J |
| E17/47 | Left front illuminated door sill molding | 28L |
| E17/48 | Right front illuminated door sill molding | 29L |
| E2 | Right front lamp unit | 90L |
| E2 | Right front lamp unit | 90K |
| E2 | Right front lamp unit | 108L |
| E20/2 | Front center console cup holder illumination | 45L |
| E36/1 | Center console armrest stowage compartment switch and controls illumination | 45K |
| E43/100 | Left rear center console ambiance illumination | 49L |
| E43/102 | Right rear center console ambiance illumination | 50L |
| E43/14 | Left front center console ambiance illumination | 65K |
| E43/16 | Right front center console ambiance illumination | 65K |
| E43/18 | Driver-side ambiance illumination | 65J |
| E43/19 | Passenger-side interior ambiance illumination | 65K |
| E43/20 | Passenger-side exterior ambiance illumination | 65K |
| E43/25 | Inner upper digital instrument cluster full display ambient lighting | 67J |
| E43/26 | Outer upper digital instrument cluster full display ambient lighting | 67J |
| E43/27 | Inner lower digital instrument cluster full display ambient lighting | 67J |
| E43/28 | Outer lower digital instrument cluster full display ambient lighting | 67K |
| E43/59 | Driver side air vent ambiance illumination | 65L |
| E43/60 | Front passenger side air vent ambiance illumination | 65L |
| E43/85 | Driver outside center air vent ambiance illumination | 67K |
| E43/86 | Driver inside center air vent ambiance illumination | 67K |
| E43/87 | Front passenger outside center air vent ambiance illumination | 67K |
| E43/88 | Front passenger inside center air vent ambiance illumination | 67L |
| G1 | On-board electrical system battery | 41L |
| H2 | Left fanfare horn | 101L |
| H2/1 | Right fanfare horn | 78L |
| K120 | Theft detection system horn relay | 101L |
| K40/6 | Driver-side fuse and relay module | 7L |
| K40/6f200 | Fuse 200 | 4L |
| K40/6f201 | Fuse 201 | 9L |
| K40/8 | Engine fuse and relay module | 114L |
| K40/8f123 | Fuse 123 | 114L |
| K40/8kG | Engine compartment terminal 15 relay | 113L |
| K57/4 | Battery disconnect switch relay | 26L |
| LIN B15 | Battery sensor LIN | 41J |
| LIN B16 | Rain and light sensor LIN | 39K |
| LIN B16 | Rain and light sensor LIN | 86K |
| M5/1 | Windshield washer system pump | 80L |
| M6/1 | Wiper motor | 86L |
| N10/6 | Front SAM control unit | 60A |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 20A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 29A |
| N10/6 | Front SAM control unit | 35A |
| N10/6 | Front SAM control unit | 45A |
| N10/6 | Front SAM control unit | 53A |
| N10/6 | Front SAM control unit | 69A |
| N10/6 | Front SAM control unit | 77A |
| N10/6 | Front SAM control unit | 86A |
| N10/6 | Front SAM control unit | 93A |
| N10/6 | Front SAM control unit | 103A |
| N10/6 | Front SAM control unit | 110A |
| N10/6 | Front SAM control unit | 121A |
| N10/6 | Front SAM control unit | 128A |
| N10/6 | Front SAM control unit | 115A |
| N10/8 | Rear SAM control unit | 20L |
| N110 | Weight Sensing System (WSS) control unit | 23L |
| N127 | Drivetrain control unit | 32L |
| N2/10 | Supplemental restraint system control unit | 17L |
| N2/10 | Supplemental restraint system control unit | 43L |
| N72/1 | Upper control panel control unit | 57L |
| N83/1 | DC/DC converter control unit | 41L |
| R2/11 | Spray nozzle hose heater | 81L |
| R2/2 | Left spray nozzle heater | 81K |
| R2/3 | Right spray nozzle heater | 81K |
| R2/9 | Center spray nozzle heater | 81L |
| R3 | Front cigarette lighter with ashtray illumination | 45L |
| S1 | Exterior lights switch | 55L |
| S1 | Exterior lights switch | 61L |
| S10/2 | Right front brake wear sensor | 111L |
| S11 | Brake fluid level switch | 82L |
| S41 | Coolant level switch | 110L |
| S42 | Windshield washer fluid level indicator switch | 83L |
| S54/10 | Right luggage compartment rear backrest release button | 47L |
| S54/9 | Left luggage compartment rear backrest release button | 47L |
| S62/42 | Passenger side engine hood contact switch | 30L |
| S62/43 | Driver side engine hood contact switch | 31L |
| S76/15 | Electric parking brake switch | 61L |
| S88/6 | Separate trunk lid lock switch | 69L |
| W15/5 | Left front footwell ground point | 5E |
| W15/7 | Right front footwell ground point | 5F |
| W18 | Left front seat crossmember ground point | 10E |
| W52/6 | Right center longitudinal member ground point | 10F |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 16L |
