Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97XCD
Engine 256 in model 257, 290 as of model year 2021 Control unit N3/10, connectors 1, 3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |

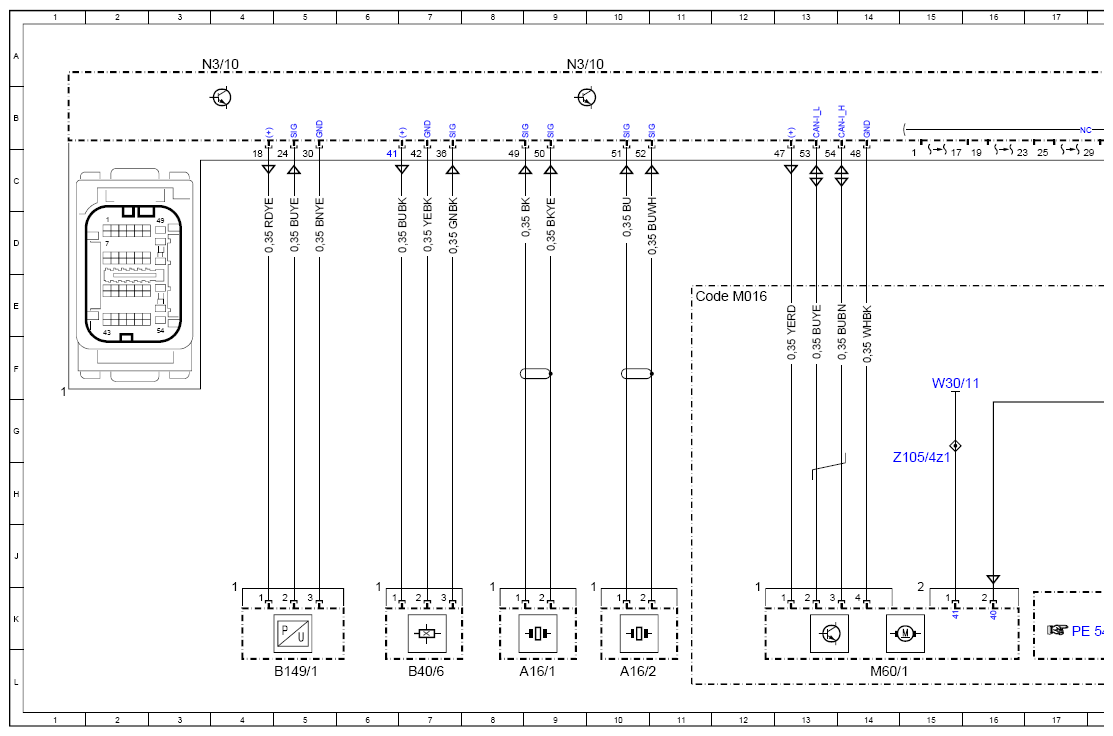

| A16/1 | Knock sensor 1 | 9L |
| A16/2 | Knock sensor 2 | 10L |
| B149/1 | Engine oil pressure and temperature sensor | 5L |

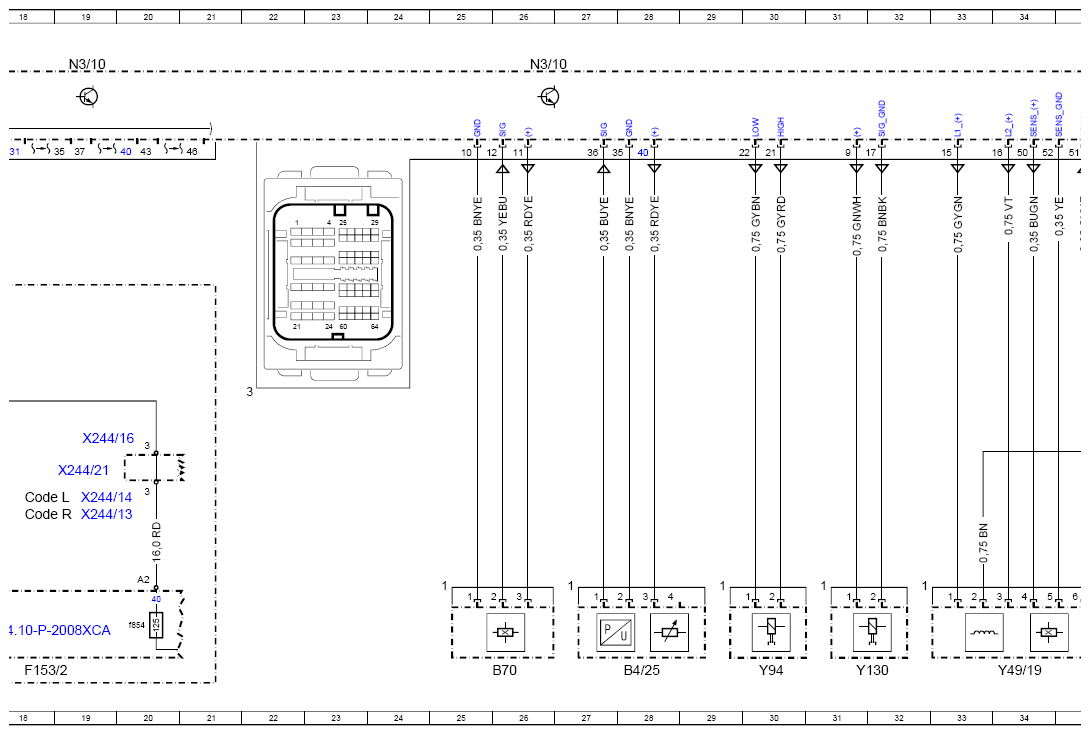

| B4/25 | Fuel pressure and temperature sensor | 28L |
| B40/6 | Engine oil fill level sensor | 7L |
| B70 | Crankshaft Hall sensor | 26L |
| Code L | LEFT-HAND DRIVE | 18H |
| Code M016 | Uprated high-performance engine | 11E |
| Code R | RIGHT-HAND DRIVE | 18H |
| F153/2 | Engine compartment 48V fuse box | 18L |
| F153/2f854 | Electrical fuse 854 | 20K |
| M60/1 | Electric additional compressor | 14L |

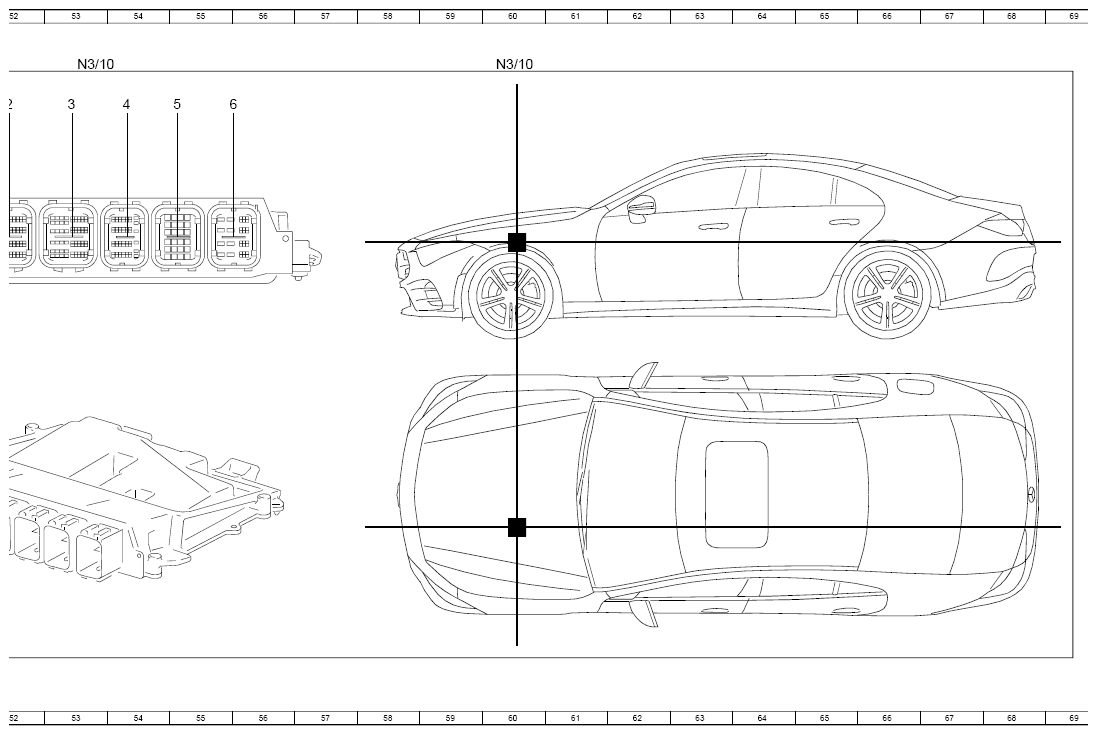

| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 9A |
| N3/10 | ME-SFI [ME] control unit | 19A |
| N3/10 | ME-SFI [ME] control unit | 26A |
| N3/10 | ME-SFI [ME] control unit | 35A |
| N3/10 | ME-SFI [ME] control unit | 42A |
| N3/10 | ME-SFI [ME] control unit | 53A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| W30/11 | Underbody tml. 41 ground point | 15F |
| X244/13 | Left vehicle-end busbar stud 3 | 19H |
| X244/14 | Right vehicle-end busbar stud 3 | 19H |
| X244/16 | Right engine-end busbar stud 3 | 19G |
| X244/21 | Partition wall busbar | 19H |
| X30/65 | Potential distributor electrical connector | 42J |
| X49 | Potential distributor | 45L |
| Y130 | Engine oil pump valve | 31L |
| Y49/19 | Cylinder 1 and 2 intake CAMTRONIC actuator | 34L |

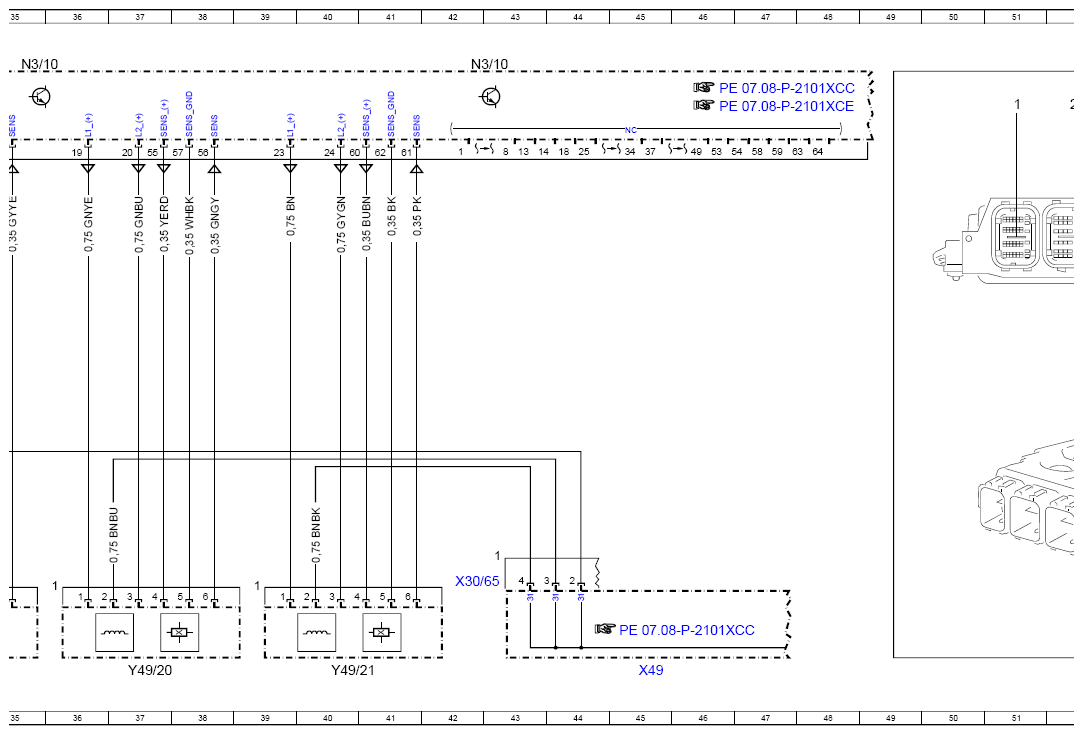

| Y49/20 | Cylinder 3 and 4 intake CAMTRONIC actuator | 37L |
| Y49/21 | Cylinder 5 and 6 intake CAMTRONIC actuator | 40L |
| Y94 | Quantity control valve | 30L |
| Z105/4z1 | Circuit 41 connector sleeve | 15G |
