Remove/Install Coolant Temperature Sensor - AR15.60-P-2712MRK
Engine 264 In Model 167
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove air filter housing. | AR09.10-P-1150MRK | |
| 2 | Drain off coolant. | AR20.00-P-1142MRK | |

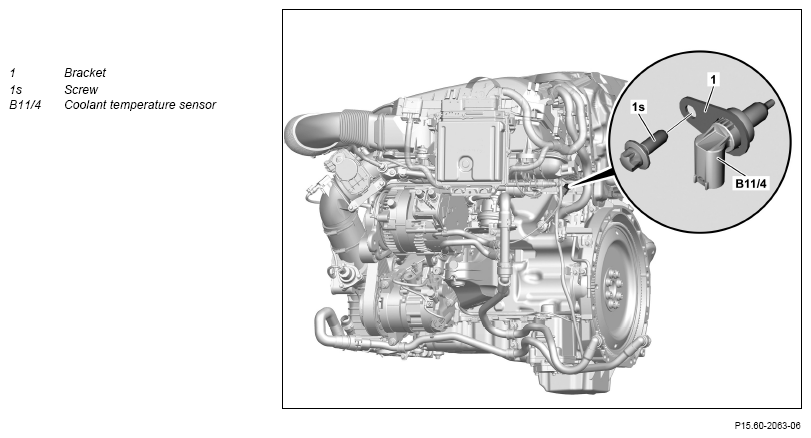

| 3 | Release and disconnect electrical connector of coolant temperature sensor (B11/4). | ||
| 4 | Remove screw (1s). | *BA15.60-P-1001-02A | |
| 5 | Remove coolant temperature sensor (B11/4) with bracket (1). | ||
| 6 | Install in the reverse order | ||
| 7 | Connect vehicle diagnosis system, read out fault memory and clear if necessary. | ||
| AD00.00-P-2000-06ME |
TEMPERATURE SENSOR
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA15.60-P-1001-02A | Bolt, coolant temperature sensor to cylinder head | Nm | 9 |
