Remove/Install Front LED Matrix Lamp Unit Control Unit - AR82.10-P-2025LFM
Model 222
As Of Model year 2018
With Code 631 (Static LED headlamps, left-hand traffic)
Model 222
As Of Model year 2018
With Code 632 (Headlamps, LED, static, right-side traffic)
Model 222
As Of Model year 2018
With Code 640 (SAE dynamic LED headlamps, right-hand traffic)
Model 222
As Of Model year 2018
With Code 641 (Dynamic LED headlamps, left-hand traffic)
Model 222
As Of Model year 2018
With Code 642 (Dynamic LED headlamps, right-hand traffic)

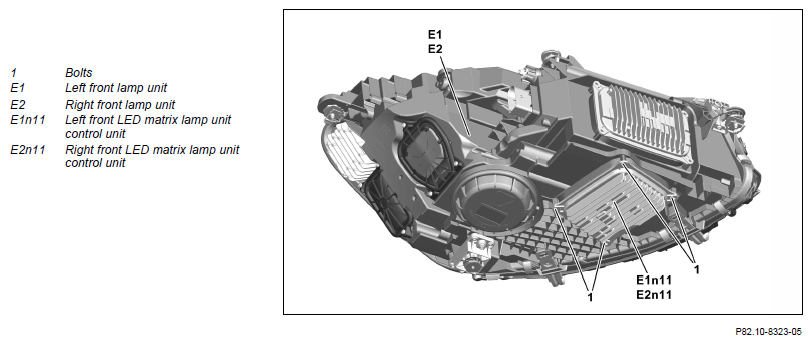

Shown on the left front lamp unit (E1)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11) | When replacing left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove left front lamp unit (E1) or right front lamp unit (E2) | AR82.10-P-4730LF | |
| 3 | Remove bolts (1) | ||
| 4 | Remove left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11) until electrical connectors are accessible | ||
| 5 | Disconnect electrical connectors and remove left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11) | ||
| 6 | Install in the reverse order |
