Wiring Diagram For Front Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2114-97SEB
Model 217 up to model year 2018 Control unit N10/6, Sheet 2
Model 222 up to model year 2018 Control unit N10/6, Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 136L |
| B14 | Outside temperature sensor | 84L |
| CAN B | Interior CAN | 64K |
| Code 494 | USA version | 127C |
| Code 494 | USA version | 130C |
| Code 610 | Night View Assist | 79A |
| Code 631 | Static LED headlamp, left-hand traffic | 126A |
| Code 632 | Static LED headlamp, right-hand traffic | 126A |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 119A |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 119A |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 119B |
| Code 874 | MAGIC VISION CONTROL | 66E |
| Code 874 | MAGIC VISION CONTROL | 104A |
| Code P21 | AIR-BALANCE package | 23K |
| Code P21 | AIR-BALANCE package | 32K |
| Code Z07 | Top protection | 74E |

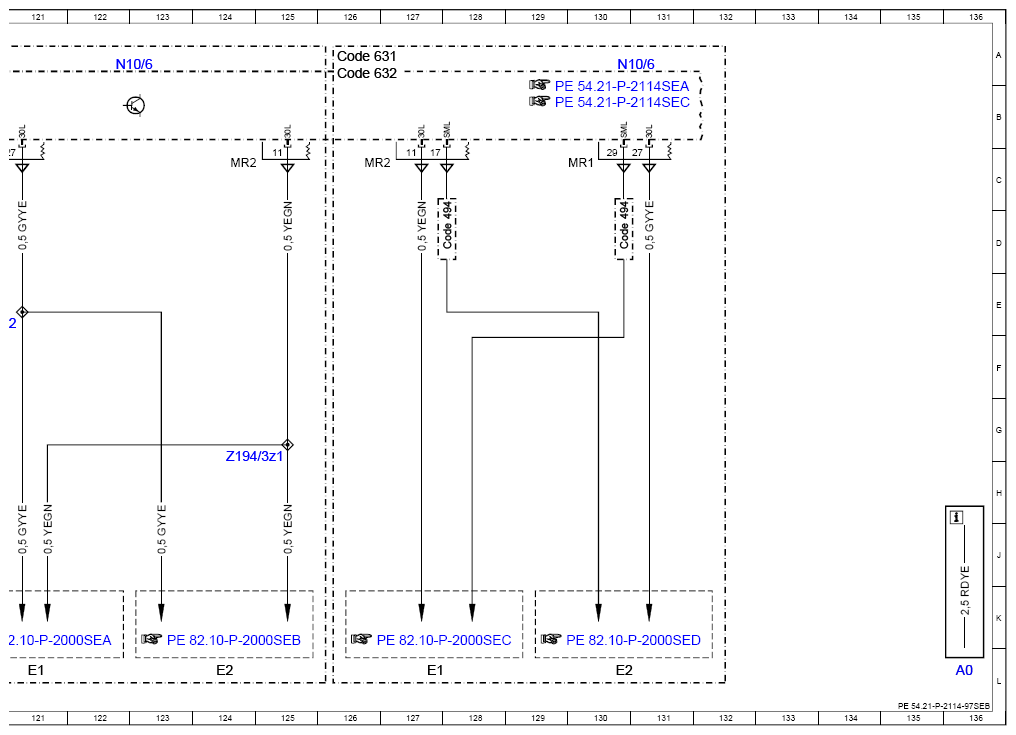

| E1 | Left front lamp unit | 121L |
| E1 | Left front lamp unit | 127L |

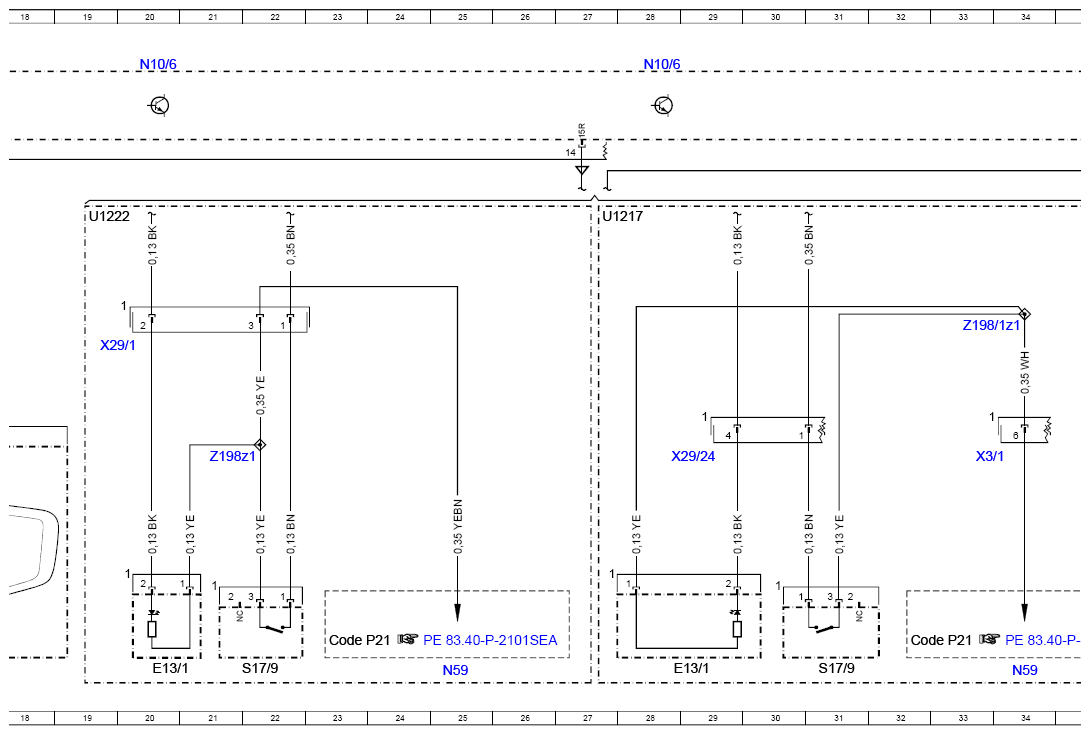

| E13/1 | Glove box lamp | 20L |
| E13/1 | Glove box lamp | 29L |
| E2 | Right front lamp unit | 130L |
| E2 | Right front lamp unit | 124L |
| F1/3 | Right A-pillar fuse box | 54L |
| F1/3 | Right A-pillar fuse box | 49L |
| F1/3f339 | Fuse 339 | 47K |
| F1/3f339 | Fuse 339 | 52K |

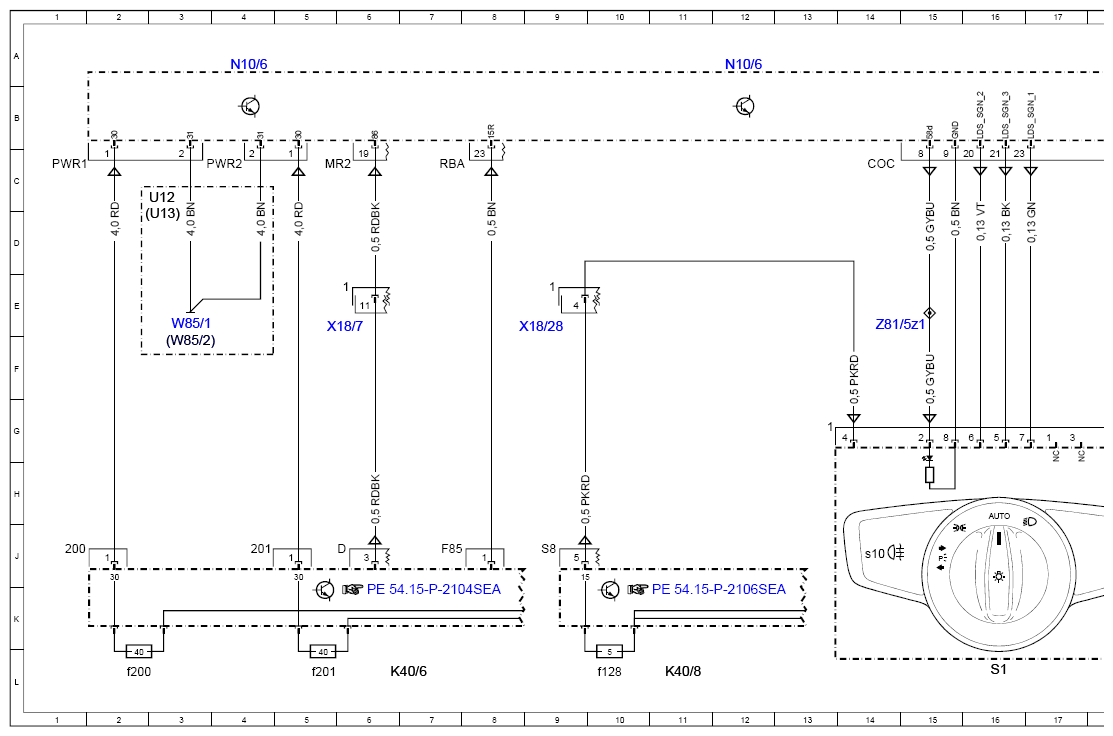

| K40/6 | Left fuse and relay module | 7L |
| K40/6 | Left fuse and relay module | 43L |
| K40/6 | Left fuse and relay module | 117L |
| K40/6f200 | Fuse 200 | 2L |
| K40/6f201 | Fuse 201 | 5L |
| K40/6f209 | Fuse 209 | 42K |

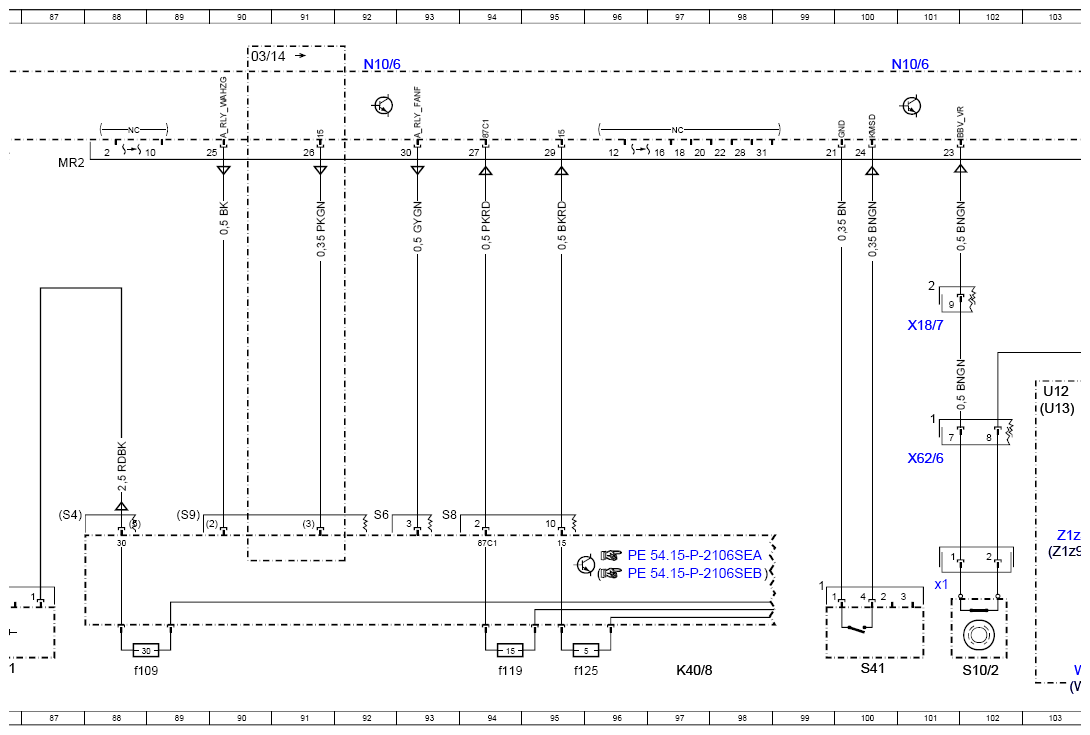

| K40/8 | Engine fuse and relay module | 11L |
| K40/8 | Engine fuse and relay module | 97L |
| K40/8f109 | Fuse 109 | 88L |
| K40/8f119 | Fuse 119 | 94L |
| K40/8f125 | Fuse 125 | 95L |
| K40/8f128 | Fuse 128 | 10L |

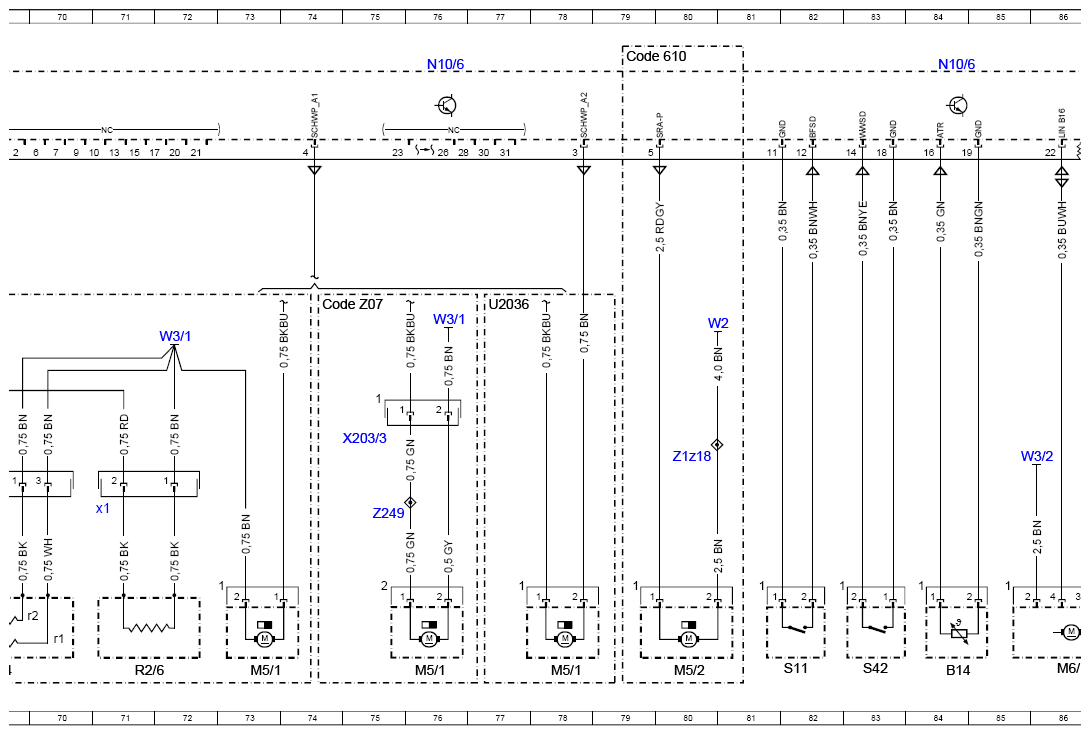

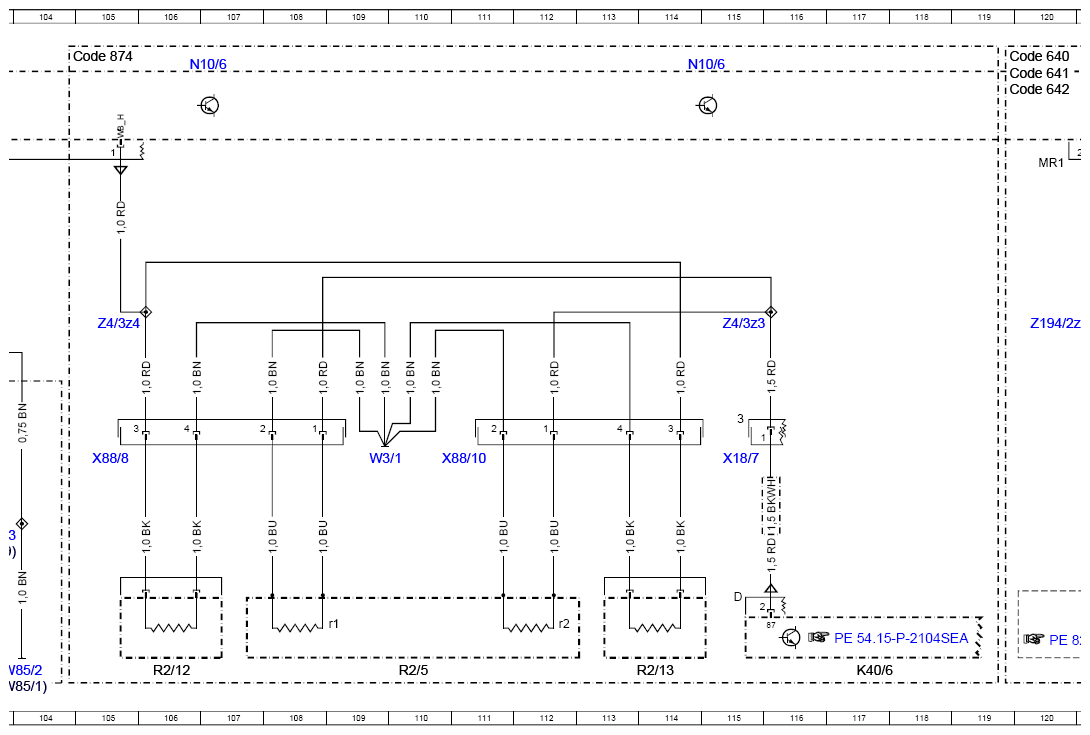

| M5/1 | Windshield washer system pump | 78L |
| M5/1 | Windshield washer system pump | 76L |
| M5/1 | Windshield washer system pump | 73L |
| M5/2 | Night & Day View Assist long-range camera washer fluid pump | 80L |
| M6/1 | Wiper motor | 86L |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 20A |
| N10/6 | Front SAM control unit | 28A |
| N10/6 | Front SAM control unit | 36A |
| N10/6 | Front SAM control unit | 44A |
| N10/6 | Front SAM control unit | 52A |
| N10/6 | Front SAM control unit | 60A |
| N10/6 | Front SAM control unit | 66A |
| N10/6 | Front SAM control unit | 76A |
| N10/6 | Front SAM control unit | 84A |
| N10/6 | Front SAM control unit | 92A |
| N10/6 | Front SAM control unit | 101A |
| N10/6 | Front SAM control unit | 106A |
| N10/6 | Front SAM control unit | 122A |
| N10/6 | Front SAM control unit | 114A |
| N10/6 | Front SAM control unit | 130A |
| N59 | Perfume atomizer generator | 25L |
| N59 | Perfume atomizer generator | 34L |
| R2/12 | Left heated wiper blade | 106L |
| R2/13 | Right heated wiper blade | 114L |
| R2/4 | Lower spray nozzle hose heater | 69L |
| R2/4r1 | Lower spray nozzle hose heater feed line heating element | 70K |
| R2/4r2 | Lower spray nozzle hose heater return line heating element | 69K |
| R2/4x1 | Lower spray nozzle hose heater electrical connector | 68H |
| R2/5 | Upper spray nozzle hose heater | 110L |
| R2/5r1 | Upper spray nozzle hose heater, left | 109K |
| R2/5r2 | Upper spray nozzle hose heater, right | 112K |
| R2/6 | Windshield washer system junction box | 71L |
| R2/6x1 | Windshield washer system junction box electrical connector | 71H |
| S1 | Exterior lights switch | 16L |
| S10/2 | Right front brake wear sensor | 102L |
| S10/2x1 | Right front brake wear sensor electrical connector | 101K |
| S11 | Brake fluid level switch | 82L |
| S17/9 | Glove box lamp switch | 22L |
| S17/9 | Glove box lamp switch | 31L |
| S1s10 | Rear fog light button | 14J |
| S41 | Coolant level switch | 100L |
| S42 | Windshield washer system washer fluid level switch | 83L |

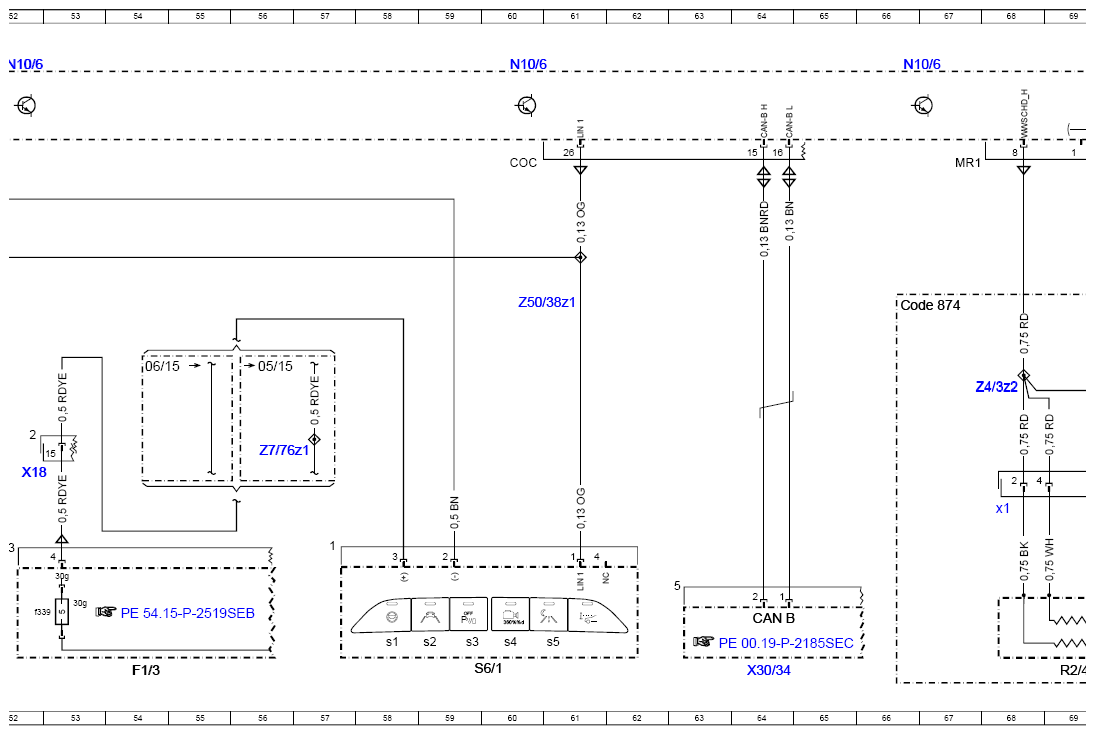

| S6/1 | Driver-side instrument panel button group | 59L |
| S6/1s1 | Steer Assist button | 58K |
| S6/1s2 | Active Lane Keeping Assist button | 59K |
| S6/1s3 | Parking system button | 59K |
| S6/1s4 | 360° camera button | 60K |
| S6/1s5 | Night View Assist button | 61K |

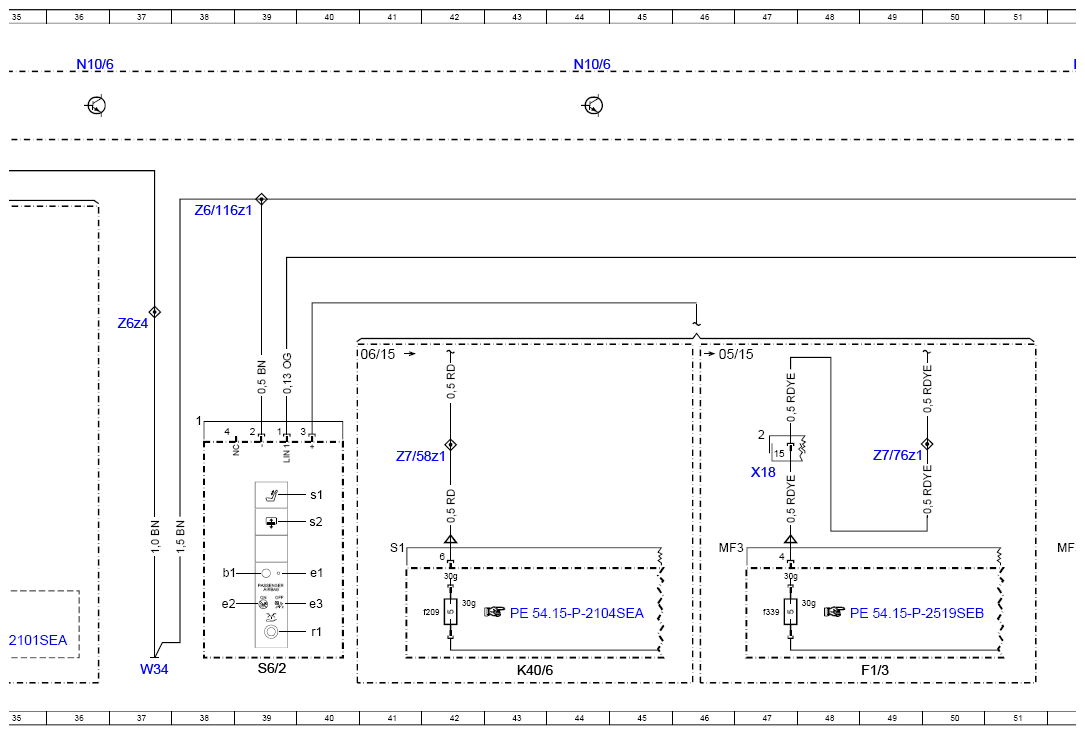

| S6/2 | Center instrument panel button group | 39L |
| S6/2b1 | Ambient brightness sensor | 38J |
| S6/2e1 | ATA [EDW] function indicator | 40J |
| S6/2e2 | Front passenger airbag ON indicator lamp | 38K |
| S6/2e3 | Front passenger airbag OFF indicator lamp | 40K |
| S6/2r1 | Instrument illumination brightness control | 40K |
| S6/2s1 | Rear head restraints button | 40H |
| S6/2s2 | Rear window roller sun blind button | 40J |
| U12 | Valid for left-hand drive vehicles | 3C |
| U12 | Valid for left-hand drive vehicles | 103F |
| U1217 | Valid for model series 217 | 27D |
| U1222 | Valid for model series 222 | 19D |
| U13 | Valid for right-hand drive vehicles | 2D |
| U13 | Valid for right-hand drive vehicles | 103G |
| U2036 | Valid without code 874 MAGIC VISION CONTROL | 77E |
| W2 | Right front ground point (at lamp unit) | 80E |
| W3/1 | Ground point (right front wheel well) | 109H |
| W3/1 | Ground point (right front wheel well) | 76E |
| W3/1 | Ground point (right front wheel well) | 72F |
| W3/2 | Left front wheel arch ground point | 85G |
| W34 | Left footwell ground point | 37L |
| W85/1 | Driver footwell frame floor assembly ground point | 3E |
| W85/1 | Driver footwell frame floor assembly ground point | 103L |
| W85/2 | Front passenger footwell frame floor assembly ground point | 3F |
| W85/2 | Front passenger footwell frame floor assembly ground point | 104L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 47H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 52H |
| X18/28 | Left cockpit/engine compartment electrical connector | 9E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 6E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 115H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 101E |
| X203/3 | Windshield washer system pump electrical connector | 75G |
| X29/1 | Glove compartment electrical connector | 20F |
| X29/24 | Cockpit glove compartment electrical connector | 29G |
| X3/1 | Scent generator electrical connector | 33G |
| X30/34 | Cockpit interior CAN (CAN B) potential distributor electrical connector | 64L |
| X62/6 | Front axle electrical connector, right distributor | 101H |
| X88/10 | Upper spray nozzle hose heater and right wiper blade heater electrical connector | 111H |
| X88/8 | Upper spray nozzle hose heater and left wiper blade heater electrical connector | 105H |
| Z194/2z2 | Left lamp unit circuit 30L connector sleeve | 120E |
| Z194/3z1 | Right lamp unit circuit 30L connector sleeve | 124G |
| Z198/1z1 | Glove compartment illumination and aromatization connector sleeve | 33E |
| Z198z1 | Connector sleeve, glove compartment illumination | 21G |
| Z1z18 | Circuit 31 connector sleeve | 80G |
| Z1z3 | Circuit 31 connector sleeve | 103J |
| Z1z9 | Circuit 31 connector sleeve | 103J |
| Z249 | Irritant gas sensor electric motor connector sleeve | 75H |
| Z4/3z2 | Tml. 30 connector sleeve | 68F |
| Z4/3z3 | Tml. 30 connector sleeve | 115E |
| Z4/3z4 | Tml. 30 connector sleeve | 105E |
| Z50/38z1 | Instrument panel LIN connector sleeve | 61E |
| Z6/116z1 | Circuit 31 connector sleeve | 38D |
| Z6z4 | Circuit 31 connector sleeve | 37E |
| Z7/58z1 | Tml. 30 connector sleeve | 41G |
| Z7/76z1 | Cockpit circuit 30G connector sleeve | 49G |
| Z7/76z1 | Cockpit circuit 30G connector sleeve | 56G |
| Z81/5z1 | Cockpit terminal 58d connector sleeve | 15E |
