Remove/Install Steering Column Up/Down Adjustment Motor And Drive Unit - AR46.10-P-0626RK

Model 217, 222, 231

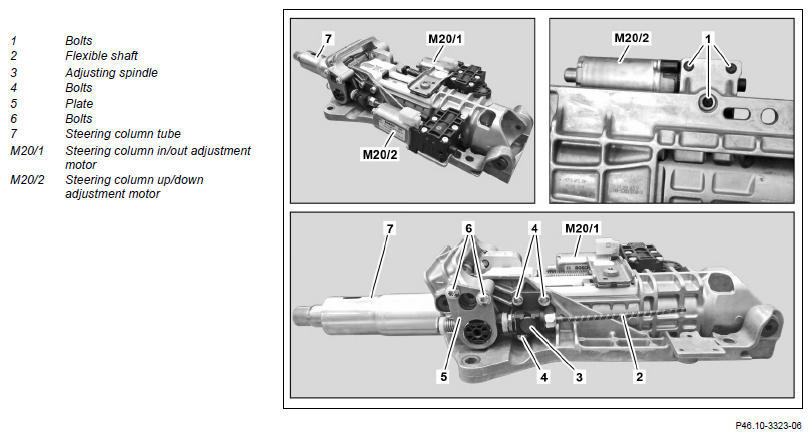

Fig 1: Steering Column Up/Down Adjustment Motor And Drive Unit Components Location - Model 222

Courtesy of MERCEDES-BENZ USA

	Remove/install
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
1	Remove steering column tube (7)	Model 217, 222	AR46.10-P-0400LF
		Model 231	AR46.10-P-0400RK
2	Remove bolts (1)
3	Remove steering column adjustment motor up/down (M20/2)	Do not kink the flexible shaft (2).
4	Remove bolts (4, 6) from adjusting spindle (3) and plate (5) on steering column tube (7)
5	Remove plate (5) and adjusting spindle (3) with flexible shaft (2)
6	Install in the reverse order
