Overview Of System Components For Common Rail Diesel Injection (CDI) - GF07.16-D-9997TSA

Engine 651 in model 907

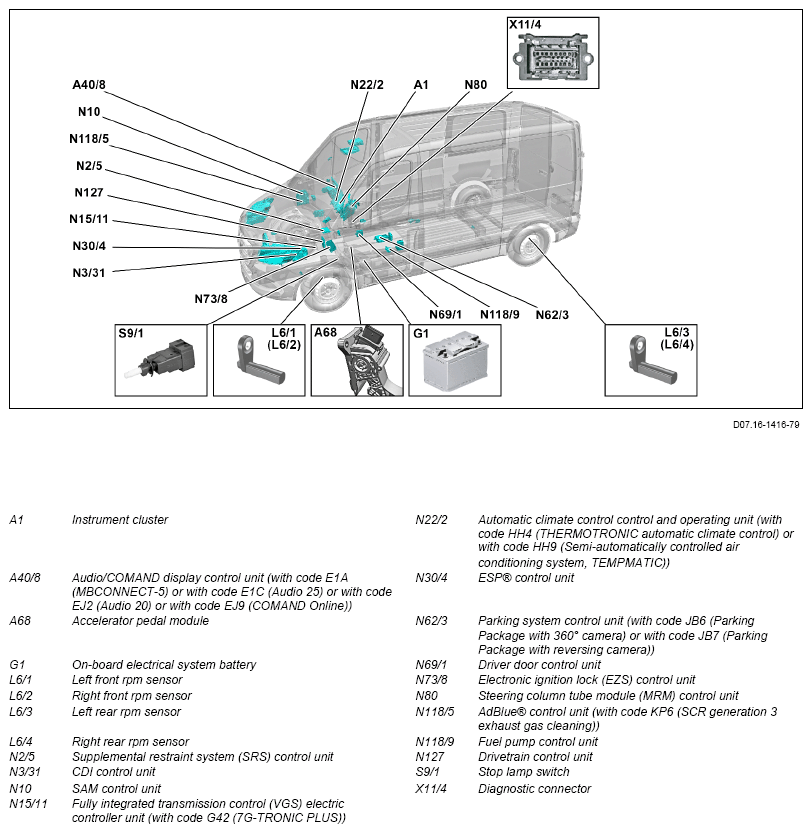

Overview of system components

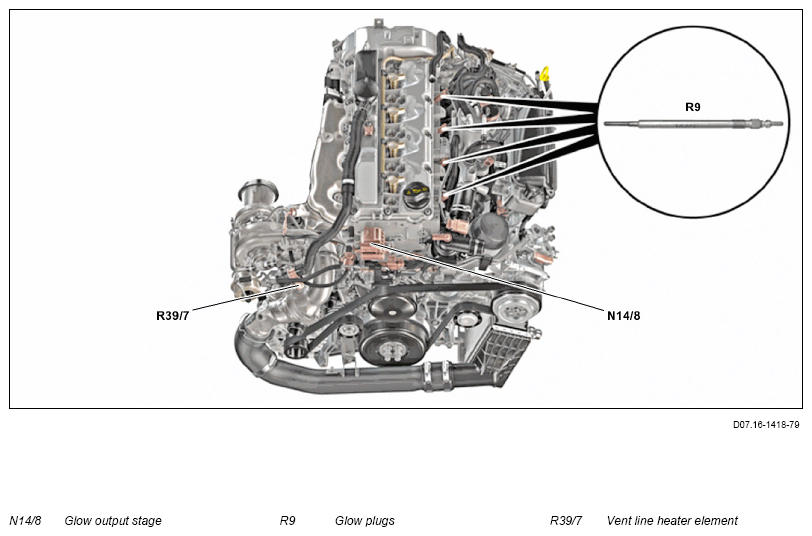

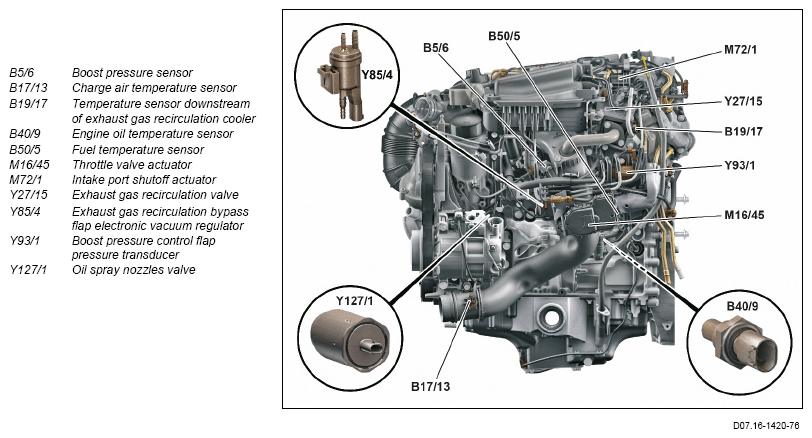

View of the engine from above

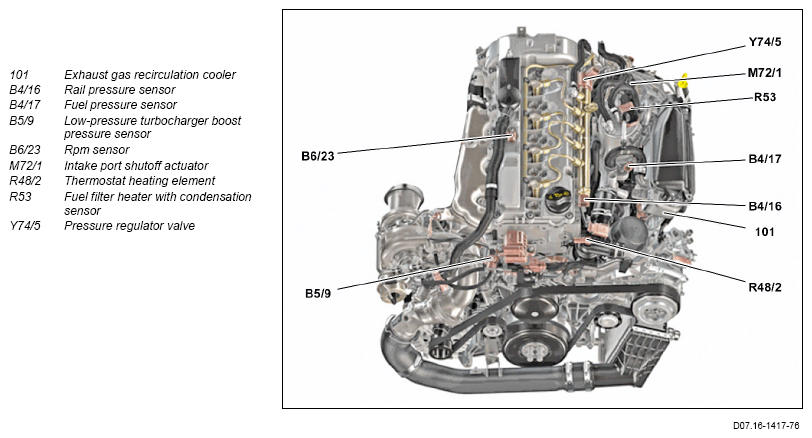

View of engine from top  □

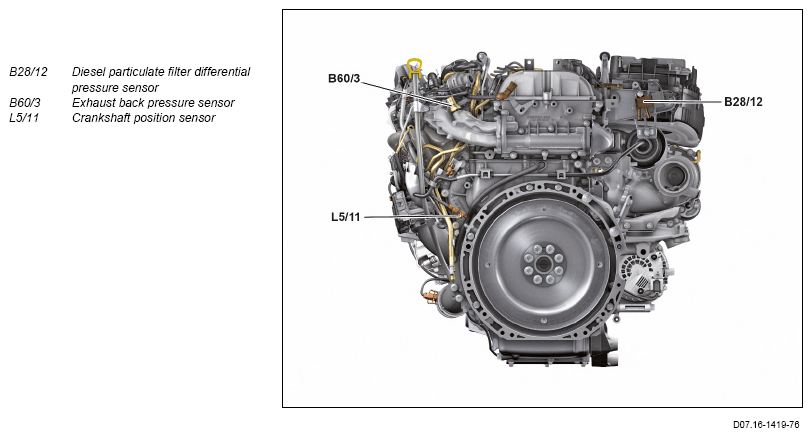

Engine rear view

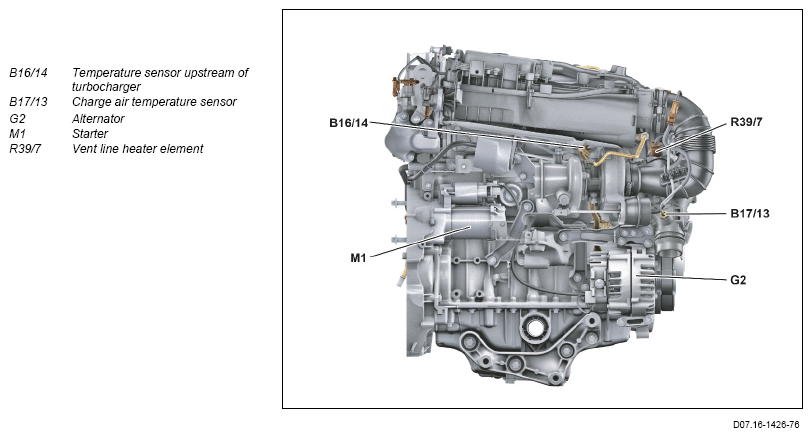

View of engine from the left

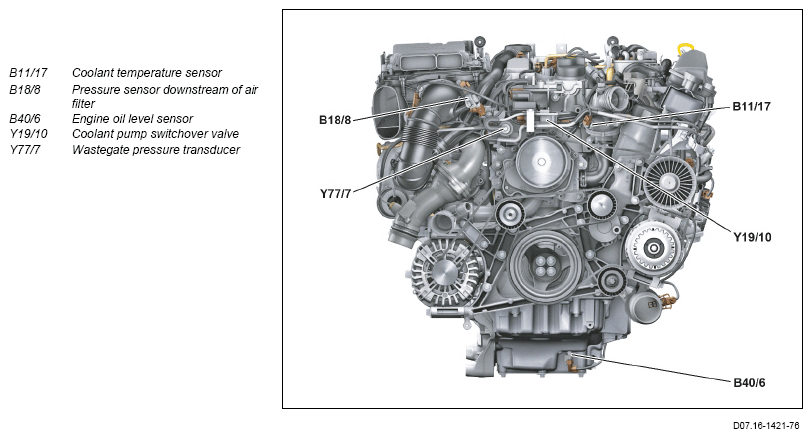

Engine front view

Engine right view

Fuel high-pressure circuit

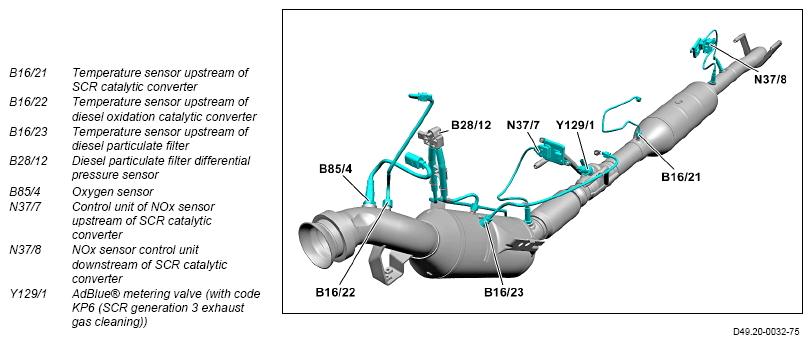

Exhaust system

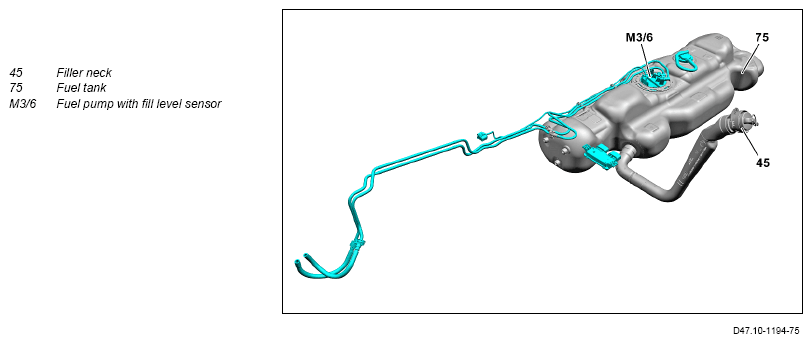

Fuel tank

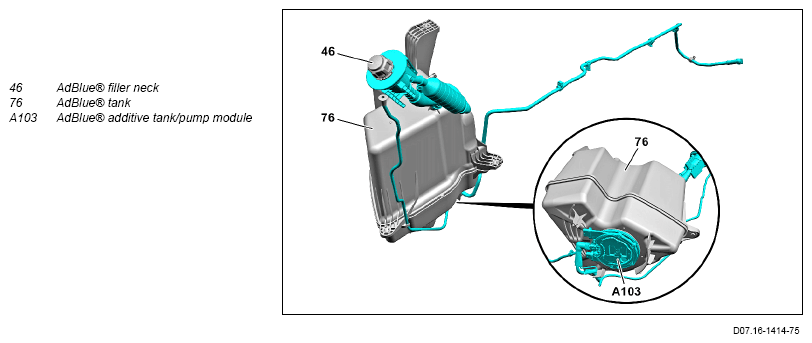

AdBlue® container (with code KP6 (SCR generation 3 exhaust gas cleaning))
