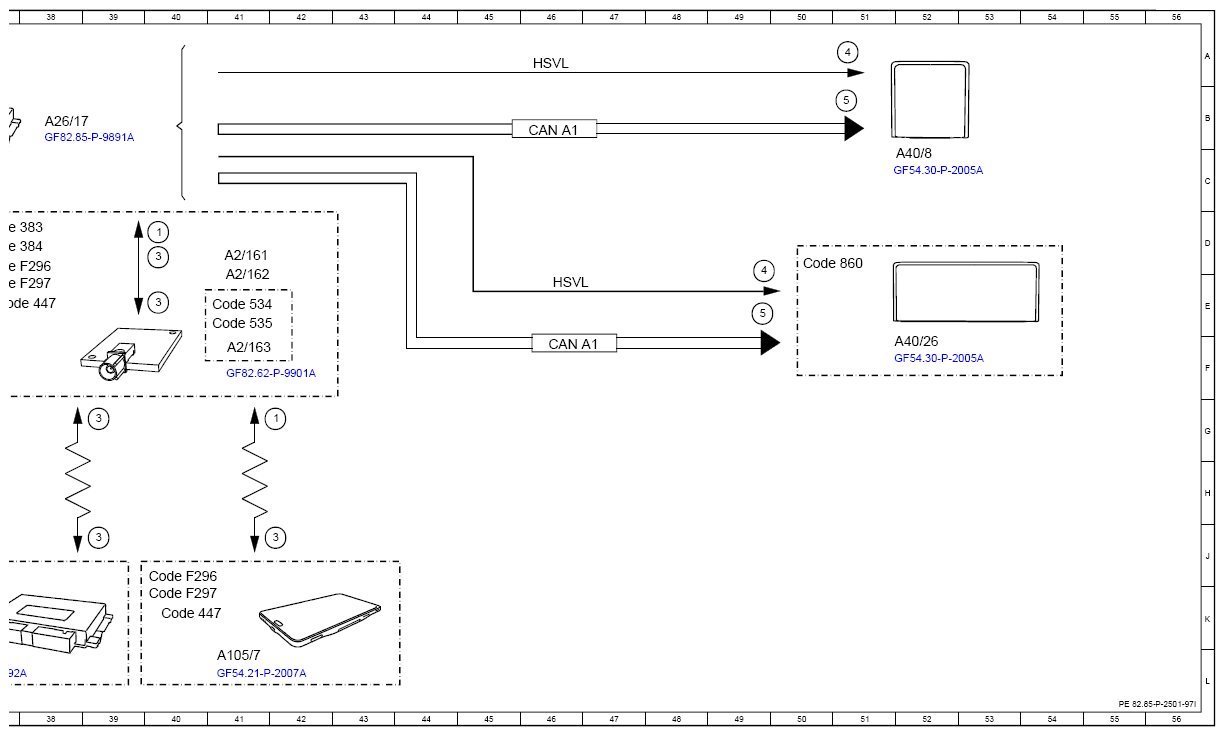

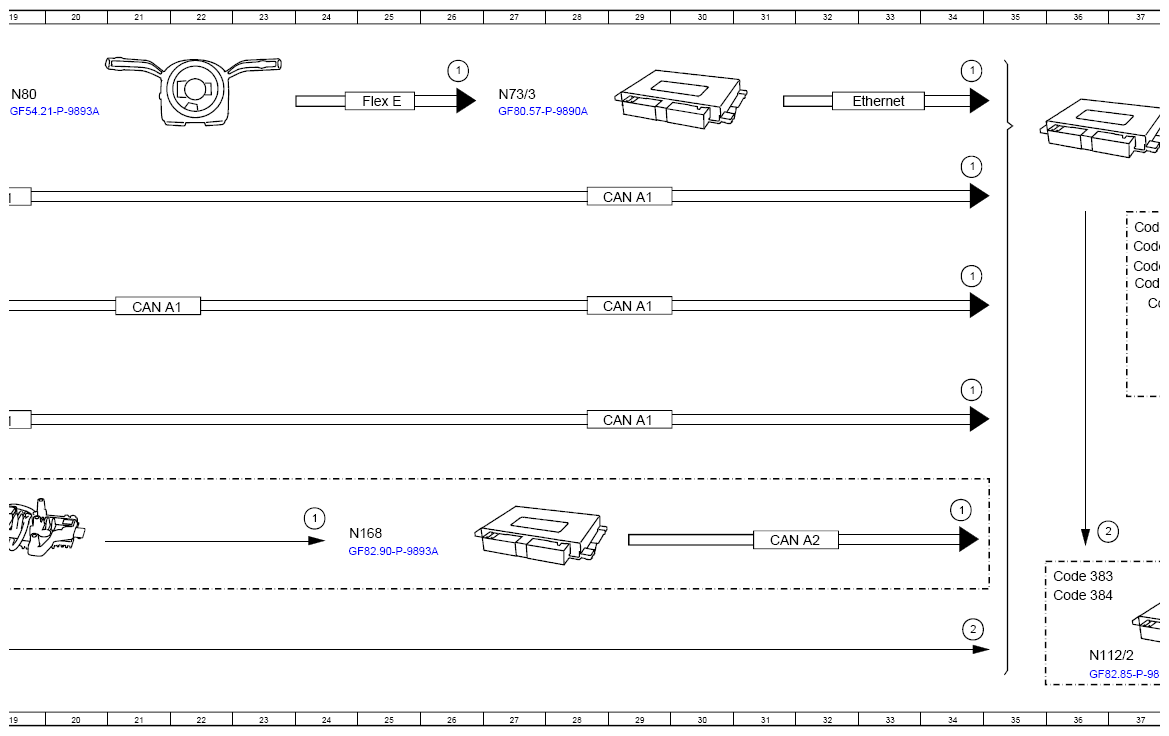

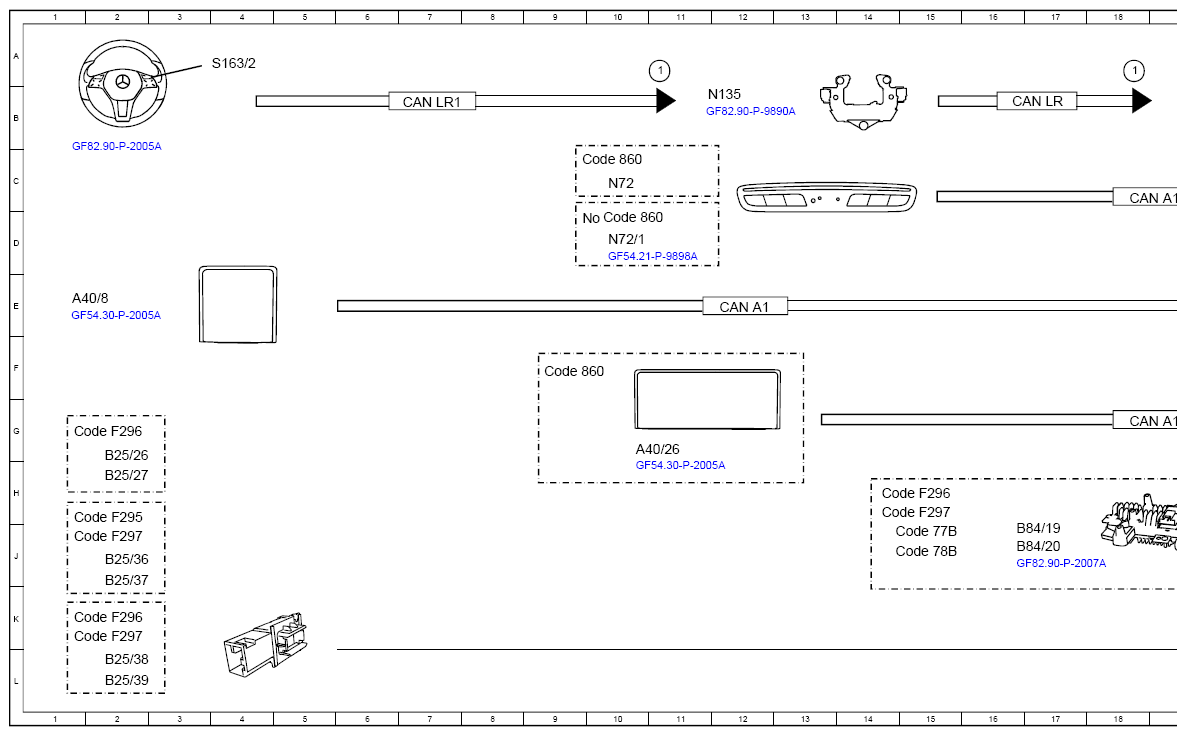

(Function Schematic For Multimedia System Control - PE82.85-P-2501-97I)
Model 294, 295, 296, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 34A |
| 1 | Operation, signal | 34C |
| 1 | Operation, signal | 26A |
| 1 | Operation, signal | 18A |
| 1 | Operation, signal | 11A |
| 1 | Operation, signal | 34H |
| 1 | Operation, signal | 24H |
| 1 | Operation, signal | 40D |
| 1 | Operation, signal | 34E |
| 1 | Operation, signal | 34F |
| 1 | Operation, signal | 42G |
| 2 | Voice input, signal | 34K |
| 2 | Voice input, signal | 37J |
| 3 | Mercedes me connect data communication, signal | 40D |
| 3 | Mercedes me connect data communication, signal | 39G |
| 3 | Mercedes me connect data communication, signal | 39J |
| 3 | Mercedes me connect data communication, signal | 40E |
| 3 | Mercedes me connect data communication, signal | 42J |
| 4 | Video, signal | 51A |
| 4 | Video, signal | 49D |
| 5 | Display, actuation | 51B |
| 5 | Display, actuation | 49E |
| A105/7 | Tablet PC | 41L |
| A2/161 | Bluetooth®/Wi-Fi antenna | 41D |
| A2/162 | Bluetooth®/Wi-Fi antenna | 41E |
| A2/163 | Bluetooth®/Wi-Fi antenna | 41F |
| A26/17 | Head unit | 38B |
| A40/26 | Front passenger display | 10G |
| A40/26 | Front passenger display | 51F |
| A40/8 | Touchscreen | 1E |
| A40/8 | Touchscreen | 52C |
| B25/26 | Microphone | 2G |
| B25/27 | Microphone | 2H |
| B25/36 | Microphone | 2J |
| B25/37 | Microphone | 2J |
| B25/38 | Microphone | 2L |
| B25/39 | Microphone | 2L |
| B84/19 | Gesture camera | 16J |
| B84/20 | Gesture camera | 16J |
| CAN A1 | CAN 1 for telematics | 18C |
| CAN A1 | CAN 1 for telematics | 29C |
| CAN A1 | CAN 1 for telematics | 46B |
| CAN A1 | CAN 1 for telematics | 12E |
| CAN A1 | CAN 1 for telematics | 29E |
| CAN A1 | CAN 1 for telematics | 21E |
| CAN A1 | CAN 1 for telematics | 18G |
| CAN A1 | CAN 1 for telematics | 29G |
| CAN A1 | CAN 1 for telematics | 46F |
| CAN A2 | CAN 2 for telematics | 31J |
| CAN LR | CAN for steering wheel | 17B |
| CAN LR1 | CAN for steering wheel gearshift buttons | 7B |
| Code 383 | RAMSES ENTRY communication module | 37D |
| Code 383 | RAMSES ENTRY communication module | 36J |
| Code 384 | RAMSES HIGH communication module | 37D |
| Code 384 | RAMSES HIGH communication module | 36K |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 37E |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 40K |
| Code 534 | Connect 20 Premium (NTG7) | 41E |
| Code 535 | Connect 20 Premium (NTG7) | 41E |
| Code 77B | Contactless gesture control at front | 14J |
| Code 78B | Contactless gesture control at rear | 14J |
| Code 860 | Front passenger display | 10D |
| Code 860 | Front passenger display | 9C |
| Code 860 | Front passenger display | 9F |
| Code 860 | Front passenger display | 50D |
| Code F295 | Model series 295 | 1H |
| Code F296 | Model series 296 | 14H |
| Code F296 | Model series 296 | 37D |
| Code F296 | Model series 296 | 40J |
| Code F296 | Model series 296 | 1G |
| Code F296 | Model series 296 | 1K |
| Code F297 | Model series 297 | 1J |
| Code F297 | Model series 297 | 1K |
| Code F297 | Model series 297 | 14H |
| Code F297 | Model series 297 | 37E |
| Code F297 | Model series 297 | 40K |
| Ethernet | Ethernet | 33B |
| Flex E | Chassis FlexRay | 25B |
| HSVL | High-speed video link | 46A |
| HSVL | High-speed video link | 46E |
| N112/2 | Telematics services communication module | 36L |
| N135 | Steering wheel electronics | 11B |
| N168 | Gesture recognition system control unit | 24J |
| N72 | Lower control panel | 10C |
| N72/1 | Upper control panel control unit | 10D |
| N73/3 | Electronic ignition switch control unit | 27B |
| N80 | Steering column module control unit | 19B |
| S163/2 | Multifunction steering wheel button group 2 | 4A |
