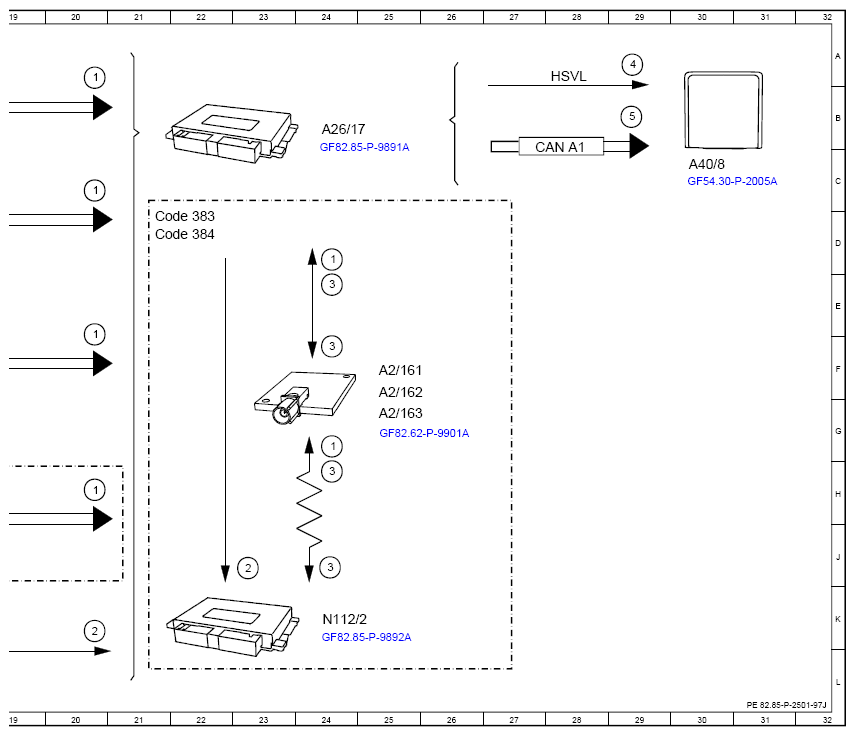

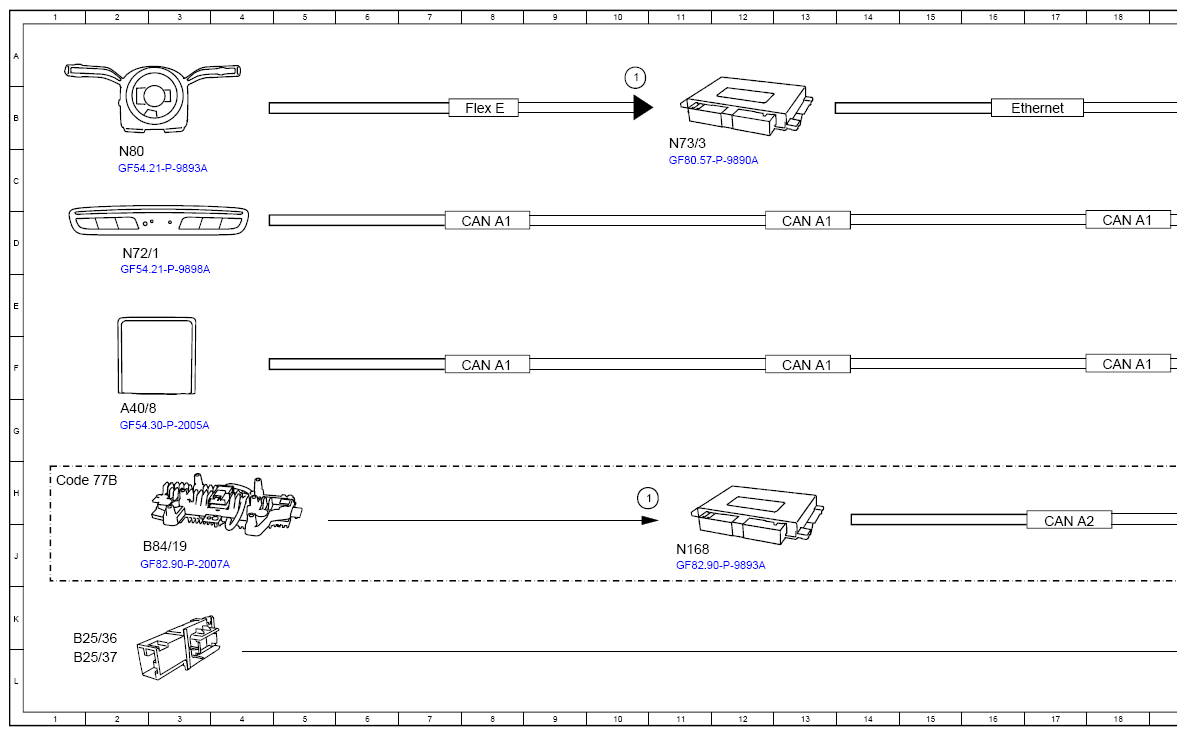

(Function Schematic For Multimedia System Control - PE82.85-P-2501-97J)
Model 192, 232
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 20A |
| 1 | Operation, signal | 20C |
| 1 | Operation, signal | 10A |
| 1 | Operation, signal | 20E |
| 1 | Operation, signal | 20H |
| 1 | Operation, signal | 10H |
| 1 | Operation, signal | 24D |
| 1 | Operation, signal | 24G |
| 2 | Voice input, signal | 20K |
| 2 | Voice input, signal | 23J |
| 3 | Mercedes me connect data communication, signal | 24E |
| 3 | Mercedes me connect data communication, signal | 24J |
| 3 | Mercedes me connect data communication, signal | 24F |
| 3 | Mercedes me connect data communication, signal | 24H |
| 4 | Video, signal | 29A |
| 5 | Audio/COMAND display, actuation | 29B |
| A2/161 | Bluetooth®/Wi-Fi antenna | 25F |
| A2/162 | Bluetooth®/Wi-Fi antenna | 25F |
| A2/163 | Bluetooth®/Wi-Fi antenna | 25G |
| A26/17 | Head unit | 24B |
| A40/8 | Touchscreen | 2G |
| A40/8 | Touchscreen | 30C |
| B25/36 | Microphone | 1K |
| B25/37 | Microphone | 1L |
| B84/19 | Gesture camera | 3J |
| CAN A1 | CAN 1 for telematics | 8D |
| CAN A1 | CAN 1 for telematics | 13D |
| CAN A1 | CAN 1 for telematics | 18D |
| CAN A1 | CAN 1 for telematics | 8F |
| CAN A1 | CAN 1 for telematics | 13F |
| CAN A1 | CAN 1 for telematics | 18F |
| CAN A1 | CAN 1 for telematics | 28C |
| CAN A2 | CAN 2 for telematics | 17J |
| Code 383 | RAMSES ENTRY communication module | 21D |
| Code 384 | RAMSES HIGH communication module | 21D |
| Code 77B | Contactless gesture control at front | 1H |
| Ethernet | Ethernet | 16B |
| Flex E | Chassis FlexRay | 8B |
| HSVL | High-speed video link | 28A |
| N112/2 | Telematics services communication module | 24K |
| N168 | Gesture recognition system control unit | 11J |
| N72/1 | Upper control panel control unit | 2D |
| N73/3 | Electronic ignition switch control unit | 11B |
| N80 | Steering column module control unit | 2C |
