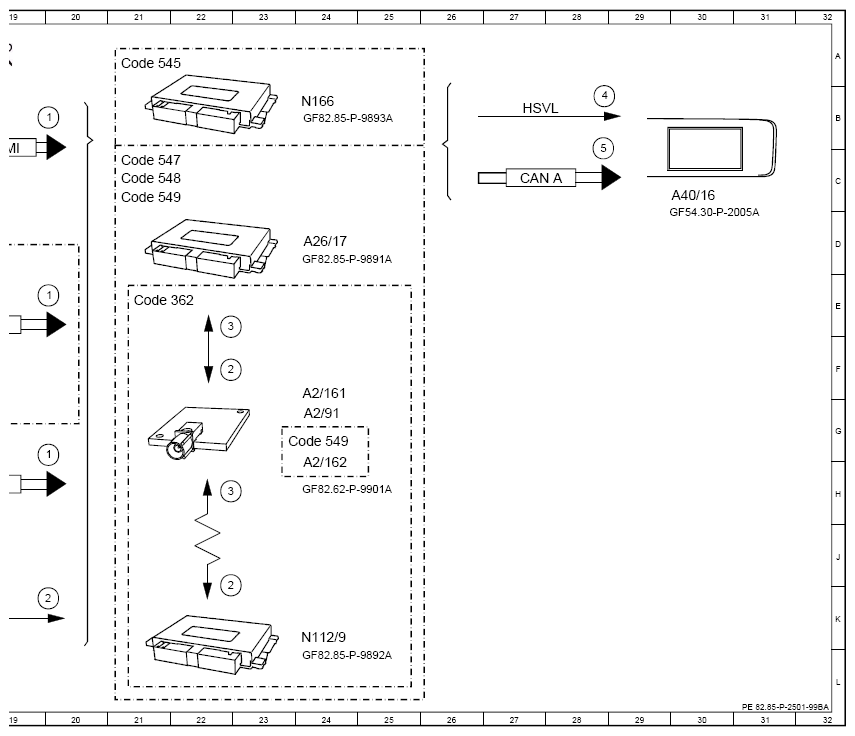

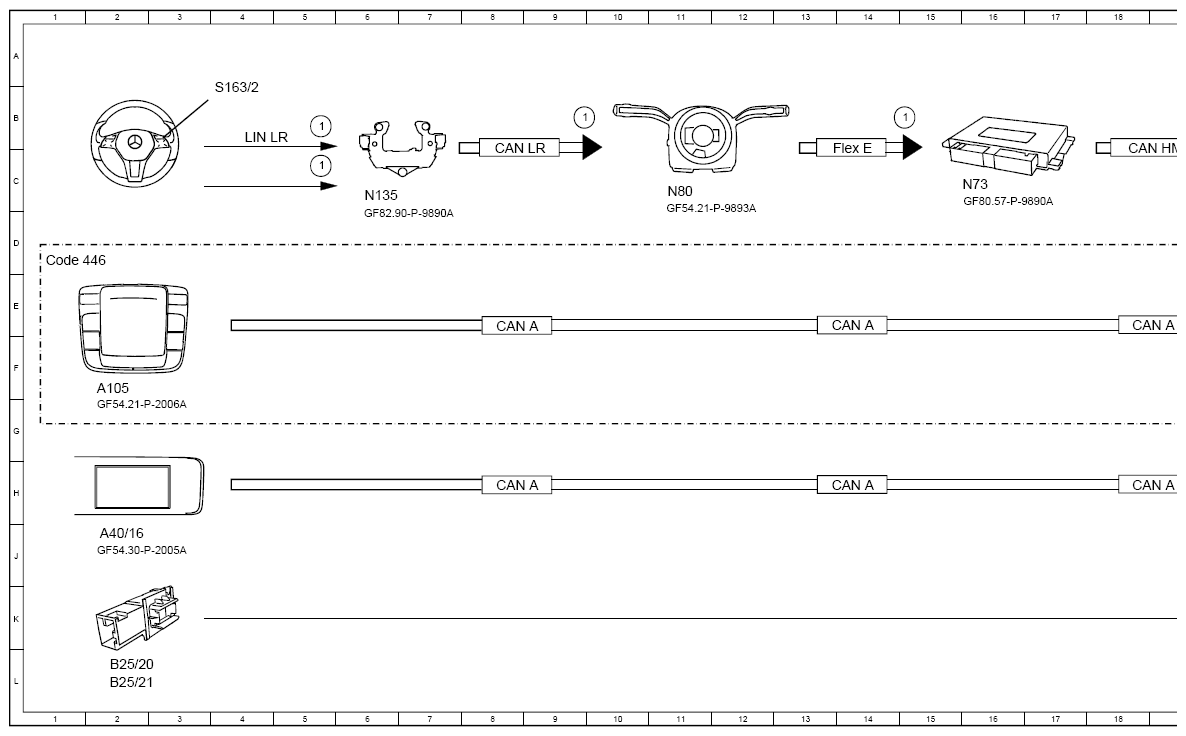

Function Schematic For Multimedia System Control - PE82.85-P-2501-97A
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 20B |
| 1 | Operation, signal | 20E |
| 1 | Operation, signal | 15B |
| 1 | Operation, signal | 9B |
| 1 | Operation, signal | 5B |
| 1 | Operation, signal | 19H |
| 1 | Operation, signal | 5C |
| 2 | Voice input, signal | 19K |
| 2 | Voice input, signal | 22K |
| 2 | Voice input, signal | 22F |
| 3 | Data from service center, signal | 22H |
| 3 | Data from service center, signal | 22E |
| 4 | Video, signal | 28B |
| 5 | Display, actuation | 28C |
| A105 | Touchpad/lower control panel | 2F |
| A2/161 | Bluetooth®/Wi-Fi antenna | 24F |
| A2/162 | Bluetooth®/Wi-Fi antenna | 24H |
| A2/91 | Bluetooth®/Wi-Fi antenna | 24G |
| A26/17 | Head unit | 24D |
| A40/16 | Head unit/instrument cluster display cluster | 2J |
| A40/16 | Head unit/instrument cluster display cluster | 30C |
| B25/20 | Driver hands-free system microphone | 2L |
| B25/21 | Front passenger hands-free system microphone | 2L |
| CAN A | Telematics CAN | 18E |
| CAN A | Telematics CAN | 27C |
| CAN A | Telematics CAN | 14E |
| CAN A | Telematics CAN | 8E |
| CAN A | Telematics CAN | 8H |
| CAN A | Telematics CAN | 14H |
| CAN A | Telematics CAN | 18H |
| CAN HMI | User interface CAN | 18C |
| CAN LR | Steering wheel CAN | 8C |
| Code 362 | HERMES LTE | 21E |
| Code 446 | Touchpad only | 1D |
| Code 545 | Connect 5 (NTG6) | 21A |
| Code 547 | Connect 20 Entry (NTG6) | 21C |
| Code 548 | Connect 20 MID (NTG6) | 21C |
| Code 549 | Connect 20 HIGH (NTG6) | 23G |
| Code 549 | Connect 20 HIGH (NTG6) | 21C |
| Flex E | Chassis FlexRay | 14C |
| HSVL | High-speed video link | 27B |
| LIN LR | Steering wheel LIN | 4B |
| N112/9 | HERMES control unit | 24K |
| N135 | Steering wheel electronics | 6C |
| N166 | Head unit/instrument cluster control unit | 24B |
| N73 | Electronic ignition switch control unit | 16C |
| N80 | Steering column module control unit | 11C |
| S163/2 | Head unit multifunction steering wheel button group | 4B |
