Remove/Install Fuse And Relay Module In Engine Compartment, Left Front - AR54.15-P-1257MFA

Model 118, 177, 243, 247

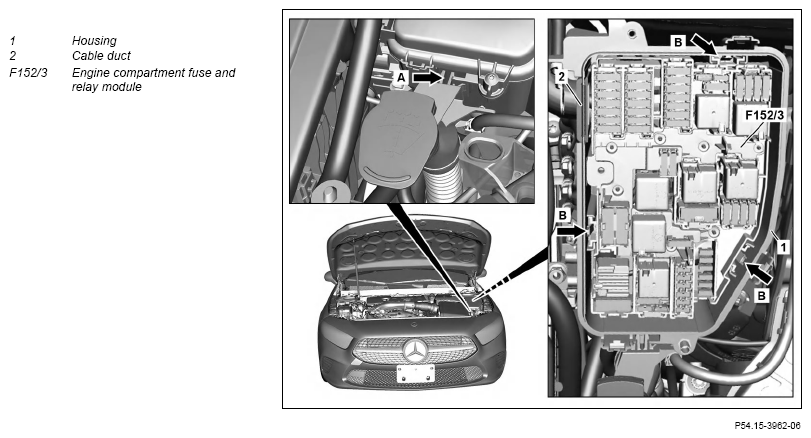

Fig 1: Fuse And Relay Module In Engine Compartment, Left Front Components Location - Model 177

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove engine compartment pre-fuse box (F150/3).		AR54.15-P-1330MFA
2	Unclip filler neck of washer fluid reservoir at arrow (A).
3	Unclip engine compartment fuse and relay module (F152/3) at arrows (B) and release engine compartment fuse and relay module (F152/3) from housing (1).	Long wedge	Fig 2
4	Remove cable tie from electrical wiring harness.	Replace cable tie.
5	Pull cable duct (2) with engine compartment fuse and relay module (F152/3) upwards.	Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.
6	Remove all electric lines from engine compartment fuse and relay module (F152/3).	The number of electrical lines varies depending on the equipment installed in the vehicle.
7	Install in the reverse order.

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
