Rear Switch Module, Basic Function - GF80.61-P-9890A
Model All (CAR) with code 871 (Sensor system for trunk lid opening/closing)
Overview
This document contains information on:
- General
- Function
General

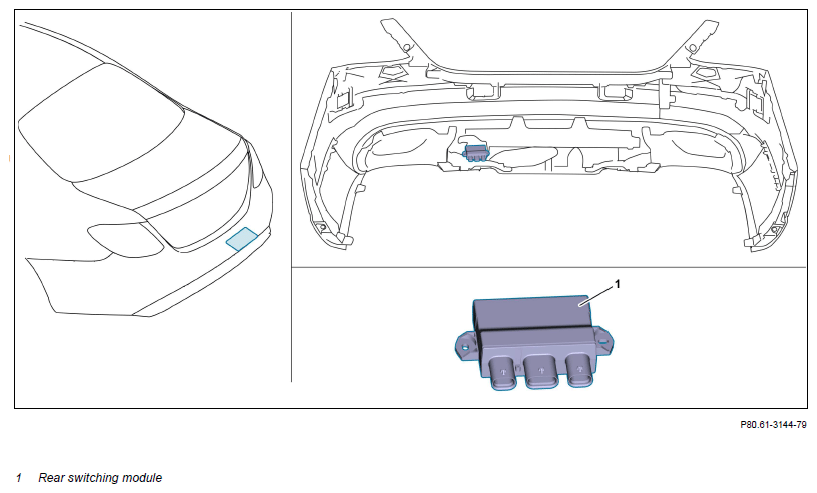

The rear switch module is located behind the trim of the rear bumper and evaluates the signals from the following sensors:
- Rear switching module upper sensor
- Rear switching module lower sensor
Function
The rear switch module evaluates the sensor signals and sends corresponding information to the central locking system.
| Component descriptions | |||
| Rear switching module, component description | Model 223 with code 871 (Sensor system for trunk lid opening/closing) | GF80.61-P-4110A | |
| Model 243 with code 871 (Sensor system for trunk lid opening/closing) | GF80.61-P-4110B | ||
| Model 206 with code 871 (Sensor system for trunk lid opening/closing) | GF80.61-P-4110C | ||
| Model 297 with code 871 (Sensor system for trunk lid opening/closing) | GF80.61-P-4110D | ||
| Model 295 with code 871 (Sensor system for trunk lid opening/closing) | GF80.61-P-4110E | ||
| Model 232 with code 871 (Sensor system for trunk lid opening/closing) | GF80.61-P-4110F | ||
| Rear switching module sensor, component description | Model 223 with code 871 (Sensor system for trunk lid opening/closing) | GF80.61-P-4111A | |
| Model 243 with code 871 (Sensor system for trunk lid opening/closing) | GF80.61-P-4111B | ||
| Model 206 with code 871 (Sensor system for trunk lid opening/closing) | GF80.61-P-4111C | ||
| Model 297 with code 871 (Sensor system for trunk lid opening/closing) | GF80.61-P-4111D | ||
| Model 295 with code 871 (Sensor system for trunk lid opening/closing) | GF80.61-P-4111E | ||
| Model 232 with code 871 (Sensor system for trunk lid opening/closing) | GF80.61-P-4111F |
