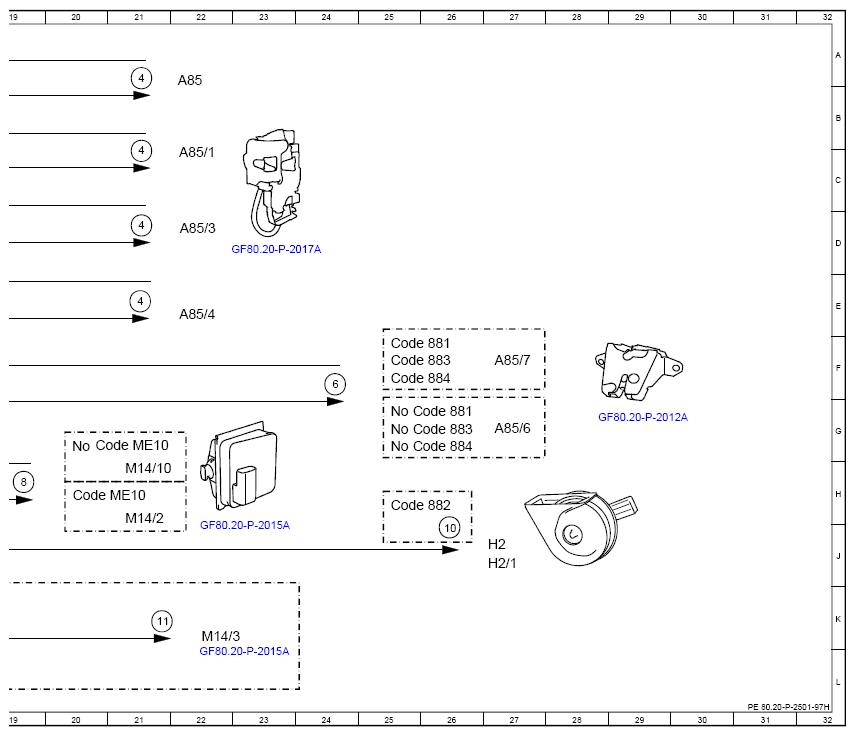

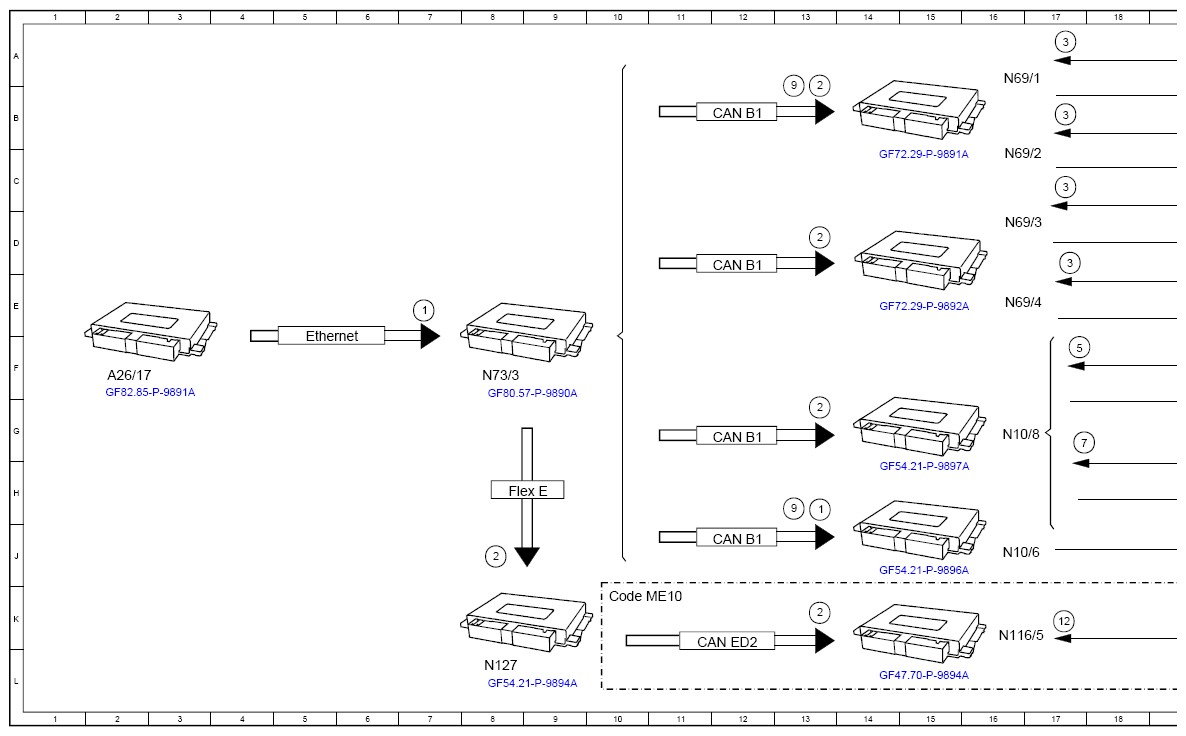

(Function Schematic For Unlocking/Locking Vehicle Through Central Locking System - PE80.20-P-2501-97H)
Model 192, 232
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Acoustic closing feedback, status | 13H |
| 1 | Acoustic closing feedback, status | 7E |
| 10 | Fanfares horns, control | 26J |
| 11 | Unlock/unlock charging cable coupling, request | 21K |
| 12 | Locking charging cable coupling, status | 17K |
| 2 | Unlock/unlock central locking, request | 8J |
| 2 | Unlock/unlock central locking, request | 13K |
| 2 | Unlock/unlock central locking, request | 13G |
| 2 | Unlock/unlock central locking, request | 13D |
| 2 | Unlock/unlock central locking, request | 13B |
| 3 | Micro switch main catch, status | 17A |
| 3 | Micro switch main catch, status | 17B |
| 3 | Micro switch main catch, status | 17D |
| 3 | Micro switch main catch, status | 17E |
| 4 | Central locking motor, control | 21E |
| 4 | Central locking motor, control | 21D |
| 4 | Central locking motor, control | 21C |
| 4 | Central locking motor, control | 21A |
| 5 | Micro switch main catch, status | 17F |
| 6 | Motor trunk lid/tailgate lock, control | 24F |
| 7 | Central locking tank cap actuator, status | 17H |
| 8 | Central locking tank cap actuator, control | 19H |
| 9 | Indicator feedback, request | 13H |
| 9 | Indicator feedback, request | 13B |
| A26/17 | Head unit | 2F |
| A85 | Door lock front door on the left | 22A |
| A85/1 | Door lock front door right | 22C |
| A85/3 | Door lock rear left | 22D |
| A85/4 | Door lock rear door right | 22E |
| A85/6 | Trunk lid/tailgate lock | 27G |
| A85/7 | Trunk lid/tailgate remote closure | 27F |
| CAN B1 | CAN 1 for vehicle interior | 12Y |
| CAN B1 | CAN 1 for vehicle interior | 12G |
| CAN B1 | CAN 1 for vehicle interior | 12D |
| CAN B1 | CAN 1 for vehicle interior | 12B |
| CAN ED2 | CAN for energy management | 12K |
| Code 881 | Remote boot lid locking | 25G |
| Code 881 | Remote boot lid locking | 25F |
| Code 882 | Sensors and siren burglary and theft alarm system | 25H |
| Code 883 | Servo closure | 25G |
| Code 883 | Servo closure | 25F |
| Code 884 | Tail lid additional fuse | 25F |
| Code 884 | Tail lid additional fuse | 25G |
| Code ME10 | Hybrid vehicle | 10K |
| Code ME10 | Hybrid vehicle | 20H |
| Code ME10 | Hybrid vehicle | 20G |
| Ethernet | Ethernet | 5F |
| H2 | Horn | 27J |
| H2/1 | Horn | 27J |
| M14/10 | Central locking tank cap actuator | 21H |
| M14/2 | Central locking socket flap actuator | 21H |
| M14/3 | Motor locking charging cable clutch | 22K |
| N10/6 | Control unit, signal acquisition and control module, front | 16Y |
| N10/8 | Rear signal acquisition and control module control unit | 16G |
| N116/5 | DC charging connection unit | 16K |
| N127 | Powertrain control unit | 8L |
| N69/1 | Left front door control unit | 16A |
| N69/2 | Front door control unit, right | 16C |
| N69/3 | Left rear door control unit | 16D |
| N69/4 | Rear door control unit, right | 16E |
| N73/3 | Electronic ignition lock control unit | 8F |
