Remove/Install Sound System Amplifier Control Unit - AR82.62-P-7720MFA
Model 118, 177, 247
up to model year 2021
with code 853 ("Midline" sound system)

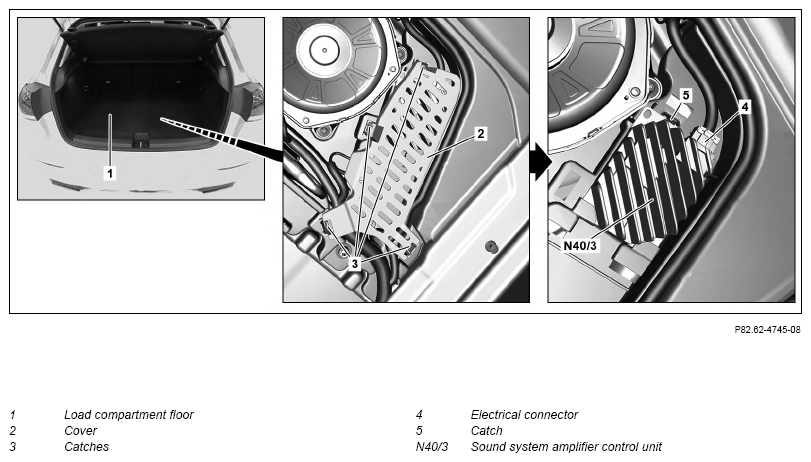

Fig 1: Sound System Amplifier Control Unit Components Location - Model 177 Up To Model Year 2021 With Code 853 (Shown On Model 177.0)
Shown on model 177.0 with code 853 ("Midline" sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2.1 | Remove load compartment floor (1). | Model 118, 177, 247.0/7 up to model year 2021 with code 853 ("Midline" sound system) Model 247.6 up to model year 2021 with code 853 ("Midline" sound system) except code 847 (3rd seat row) |
|
| 2.2 | Remove right rear seat of 3rd seat row. | Model 247.6 up to model year 2021 with code 847 (3rd seat row) with code 853 ("Midline" sound system) |
|
| AR91.12-P-0007MFX | |||
| 3 | Unclip cover (2) at catches (3). | If installed. | |
| 4 | Release and disconnect electrical connector (4). | ||
| 5 | Operate catch (5) and remove sound system amplifier control unit (N40/3). | ||
| 6 | Install in the reverse order. | ||
| 7 | Carry out commissioning of sound system amplifier control unit (N40/3). | If sound system amplifier control unit (N40/3) is replaced. | |
| AD00.00-P-2000-06MFA |
