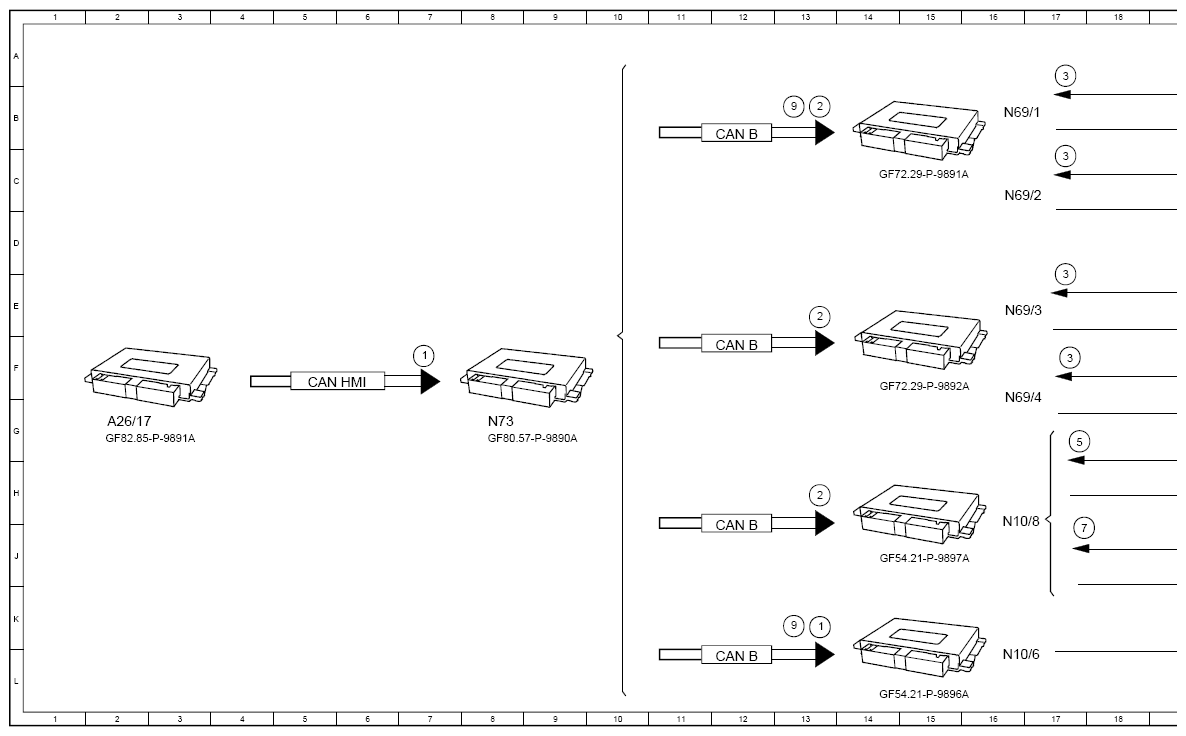

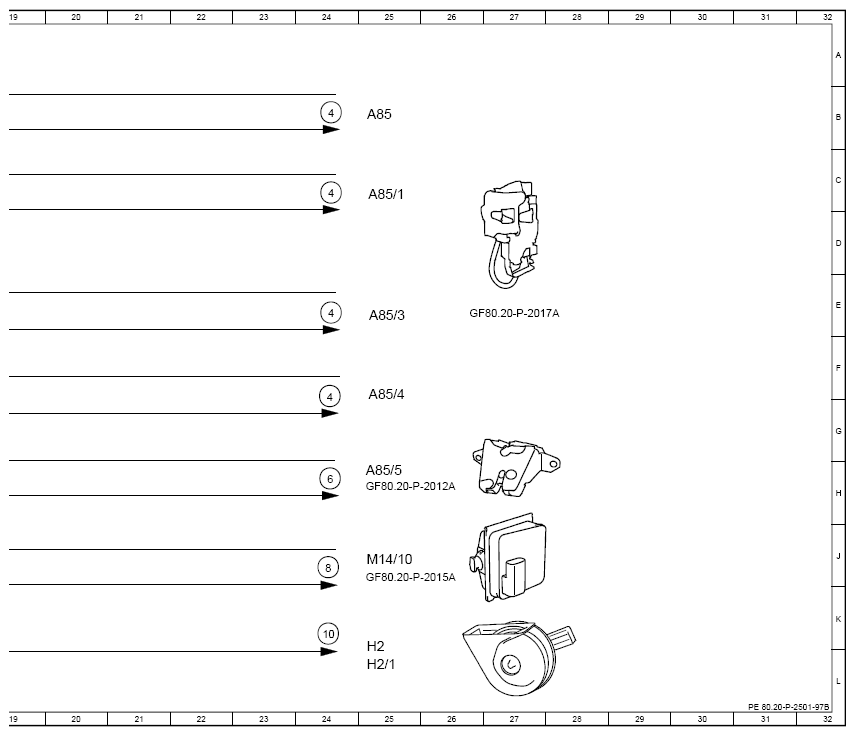

(Function Schematic For Unlocking/Locking Vehicle Through Central Locking System - PE80.20-P-2501-97B)
Model 167 except code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Acoustic locking feedback, status | 13K |
| 1 | Acoustic locking feedback, status | 7F |
| 10 | Fanfare horns, actuation | 24K |
| 2 | Lock/unlock central locking, request | 13B |
| 2 | Lock/unlock central locking, request | 13E |
| 2 | Lock/unlock central locking, request | 13H |
| 3 | Main locking position microswitch, status | 17B |
| 3 | Main locking position microswitch, status | 17C |
| 3 | Main locking position microswitch, status | 17E |
| 3 | Main locking position microswitch, status | 17F |
| 4 | Central locking motor, actuation | 24B |
| 4 | Central locking motor, actuation | 24E |
| 4 | Central locking motor, actuation | 24C |
| 4 | Central locking motor, actuation | 24G |
| 5 | Trunk lid/liftgate lock main catch switch, status | 17G |
| 6 | Trunk lid/liftgate lock motor, actuation | 24H |
| 7 | Tank cap central locking actuator, status | 17H |
| 8 | Tank cap central locking actuator, actuation | 24J |
| 9 | Turn signal confirmation, request | 13K |
| 9 | Turn signal confirmation, request | 13B |
| A26/17 | Head unit | 2G |
| A85 | Left front door lock | 25B |
| A85/1 | Right front door lock | 25C |
| A85/3 | Left rear door lock | 25E |
| A85/4 | Right rear door lock | 25F |
| A85/5 | Trunk lid/liftgate lock | 25H |
| CAN B | Interior CAN | 12J |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 12B |
| CAN B | Interior CAN | 12L |
| CAN HMI | User interface CAN | 5F |
| H2 | Left fanfare horn | 25L |
| H2/1 | Right fanfare horn | 25L |
| M14/10 | Tank cap central locking actuator | 25J |
| N10/6 | 16L | |
| N10/8 | 16J | |
| N69/1 | Driver door control unit | 16B |
| N69/2 | Front passenger door control unit | 16C |
| N69/3 | Left rear door control unit | 16E |
| N69/4 | Right rear door control unit | 16G |
| N73 | Electronic ignition switch control unit | 8G |
