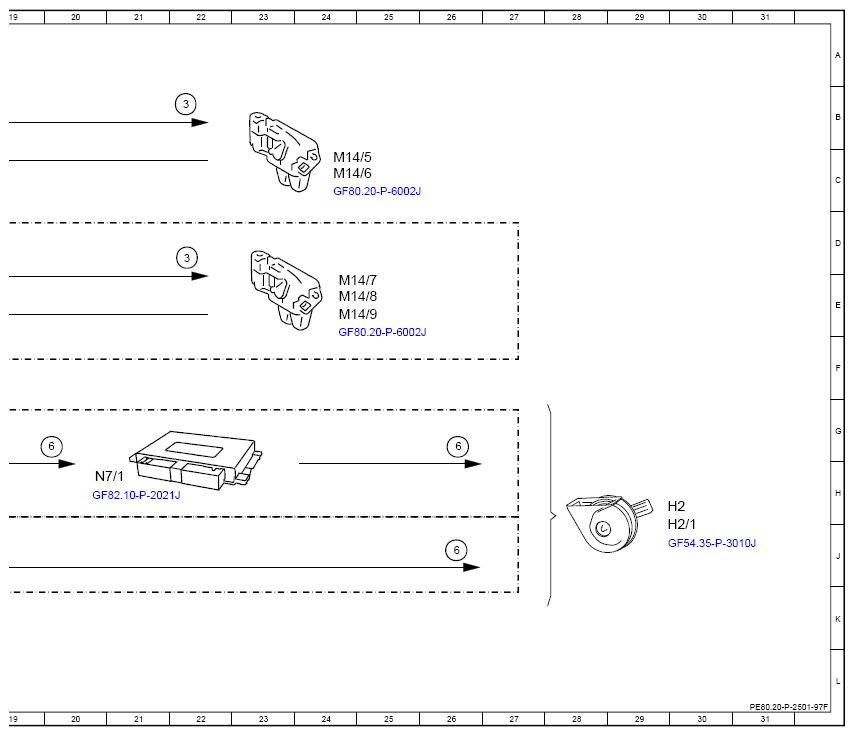

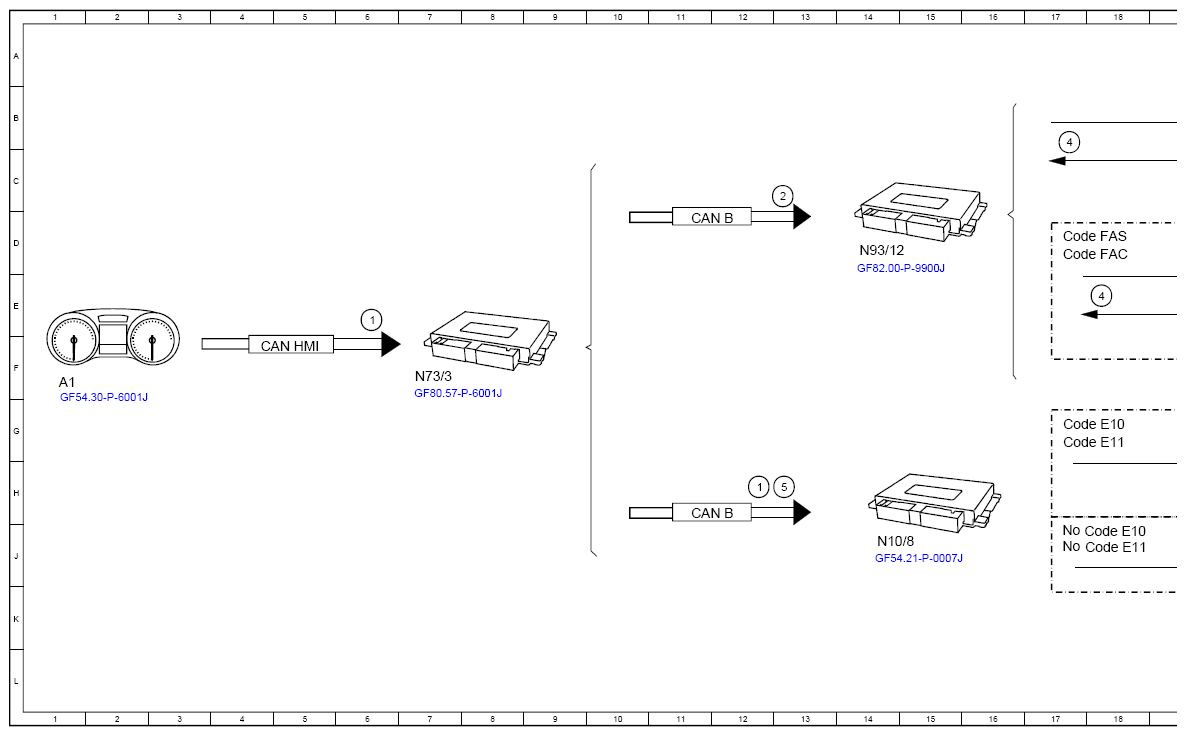

(Function Schematic For Unlocking/Locking Vehicle Through Central Locking System - PE80.20-P-2501-97F)
Model 464
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Acoustic locking feedback, status | 6E |
| 1 | Acoustic locking feedback, status | 12H |
| 2 | Lock/unlock central locking, request | 13C |
| 3 | Central locking motor, actuation | 22B |
| 3 | Central locking motor, actuation | 22D |
| 4 | Central locking, status | 17B |
| 4 | Central locking, status | 18E |
| 5 | Turn signal confirmation, request | 13H |
| 6 | Fanfare horns, actuation | 26G |
| 6 | Fanfare horns, actuation | 26J |
| 6 | Fanfare horns, actuation | 20G |
| A1 | Instrument cluster | 1F |
| CAN B | CAN for vehicle interior | 11D |
| CAN B | CAN for vehicle interior | 11H |
| CAN HMI | CAN for user interface | 5F |
| Code E10 | Stealth lights without convoy marking | 17G |
| Code E10 | Stealth lights without convoy marking | 17J |
| Code E11 | Stealth lights with convoy marking | 17G |
| Code E11 | Stealth lights with convoy marking | 17J |
| Code FAC | CKD station wagon | 17D |
| Code FAS | Station wagon | 17D |
| H2 | Horn | 29H |
| H2/1 | Horn | 29J |
| M14/5 | Right front door central locking motor | 24C |
| M14/6 | Left front door central locking motor | 24C |
| M14/7 | Rear-end door central locking motor | 24E |
| M14/8 | Left rear door central locking motor | 24E |
| M14/9 | Right rear door central locking motor | 24E |
| N10/8 | Signal acquisition and actuation module control unit | 14J |
| N7/1 | Stealth light module control unit | 20H |
| N73/3 | Electronic ignition switch control unit | 7F |
| N93/12 | User interface control unit | 14D |
