Retrofit Trailer Coupling Control Unit - AN31.19-P-8080-05MFA
Model 177.0
Model 247.6
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |

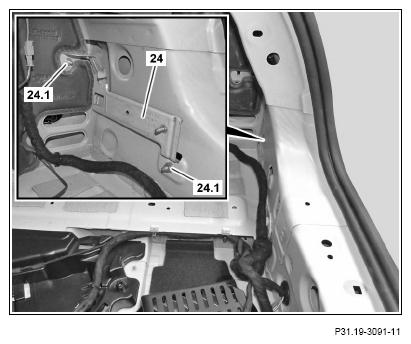

- Position holder (24) on rear-end center section and tighten with nuts (24.1).

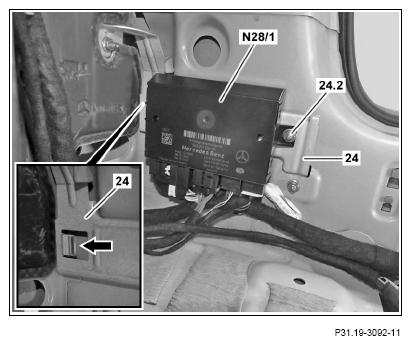

- Insert trailer recognition control unit (N28/1) into shackle (arrow) of holder (24), position on holder (24) and tighten with nut (24.2).
