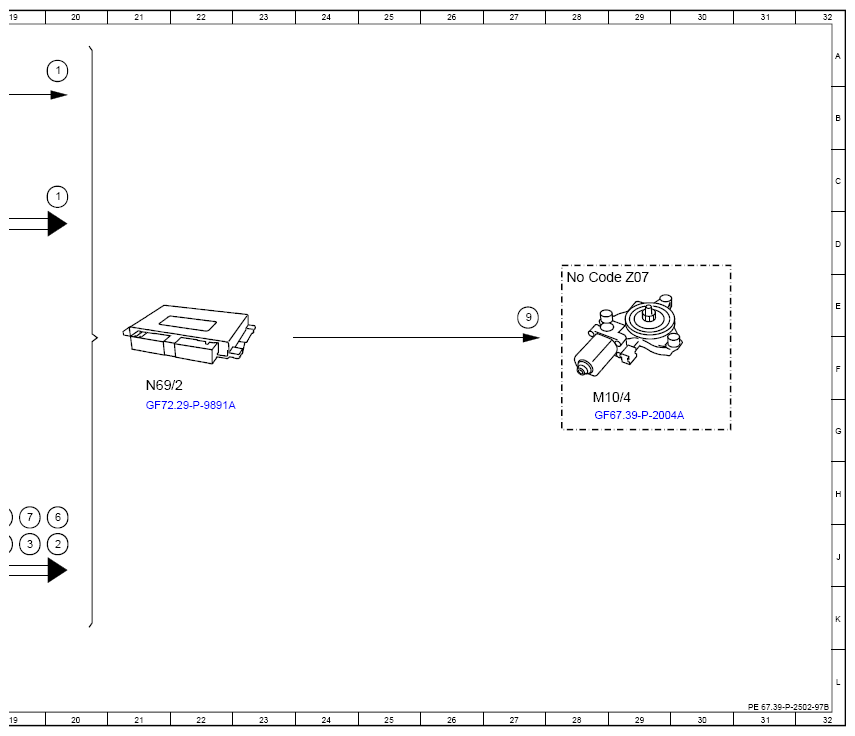

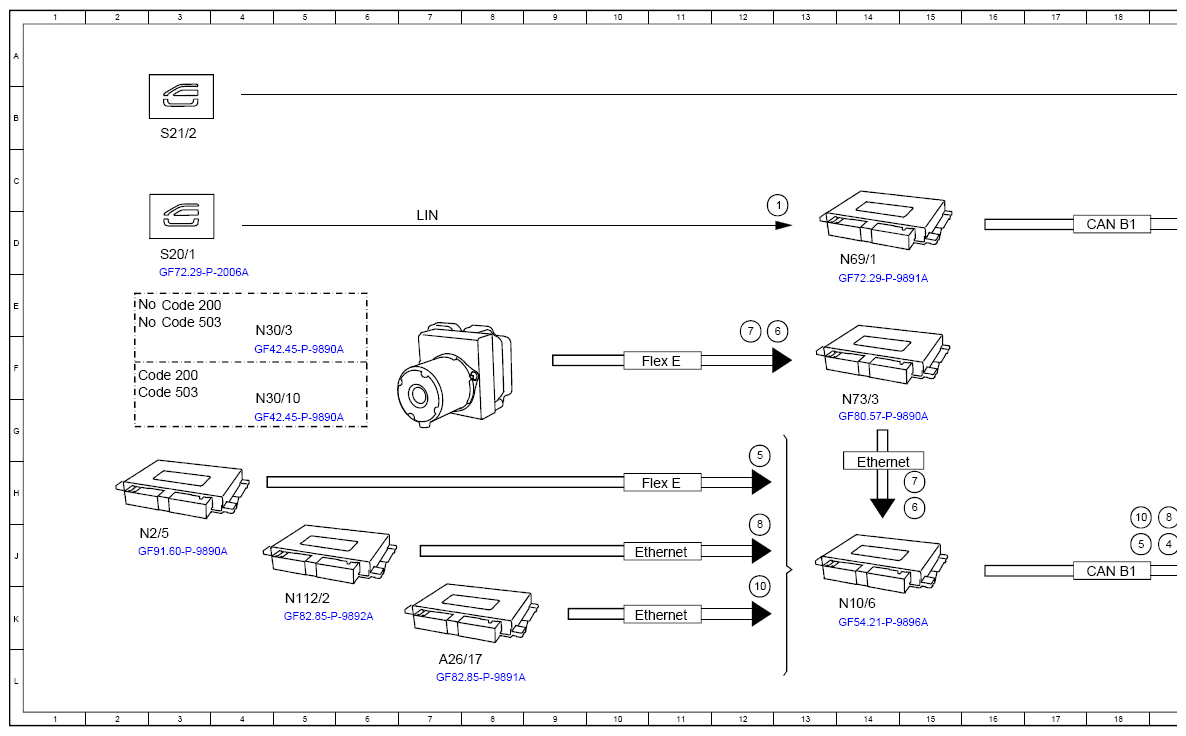

(Function Schematic For Actuation Of Front Passenger Side Power Window Assembly - PE67.39-P-2502-97B)
Model 192, 206, 214, 223, 232, 236, 254, 294, 295, 296, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Left front power window assembly switch, status | 20A |
| 1 | Left front power window assembly switch, status | 13D |
| 1 | Left front power window assembly switch, status | 20D |
| 10 | Power window control, signal | 19H |
| 10 | Power window control, signal | 12K |
| 2 | Rain closing, request | 20J |
| 3 | Convenience feature, status | 19J |
| 4 | Convenience feature direction, signal | 19J |
| 5 | Crash, signal | 18J |
| 5 | Crash, signal | 12G |
| 6 | PRE-SAFE®, status | 20H |
| 6 | PRE-SAFE®, status | 13E |
| 6 | PRE-SAFE®, status | 15H |
| 7 | Adjust PRE-SAFE®, request | 19H |
| 7 | Adjust PRE-SAFE®, request | 12E |
| 7 | Adjust PRE-SAFE®, request | 15H |
| 8 | Window lifter remote control, request | 19H |
| 8 | Window lifter remote control, request | 12H |
| 9 | Power window motor, actuation | 27E |
| A26/17 | Head unit | 7L |
| CAN B1 | CAN 1 for vehicle interior | 18D |
| CAN B1 | CAN 1 for vehicle interior | 18J |
| Code 200 | Conditionally automated driving | 3E |
| Code 200 | Conditionally automated driving | 2F |
| Code 503 | Remote-controlled parking | 3E |
| Code 503 | Remote-controlled parking | 2F |
| Code Z07 | B7 armoring on special protection version | 28E |
| Ethernet | Ethernet | 14H |
| Ethernet | Ethernet | 10J |
| Ethernet | Ethernet | 10K |
| Flex E | Chassis FlexRay | 11F |
| Flex E | Chassis FlexRay | 11H |
| LIN | Local Interconnect Network | 7D |
| M10/4 | Right front door power window motor | 28G |
| N10/6 | Front signal acquisition and actuation module control unit | 14K |
| N112/2 | Telematics services communication module | 5K |
| N2/5 | Supplemental restraint system control unit | 2J |
| N30/10 | Electronic Stability Program control unit | 4G |
| N30/3 | Electronic Stability Program control unit | 4E |
| N69/1 | Left front door control unit | 14D |
| N69/2 | Right front door control unit | 21F |
| N73/3 | Electronic ignition switch control unit | 14G |
| S20/1 | Button group for power window and outside mirror adjustment, driver-side door | 3D |
| S21/2 | Button group for passenger-side door power window | 3B |
