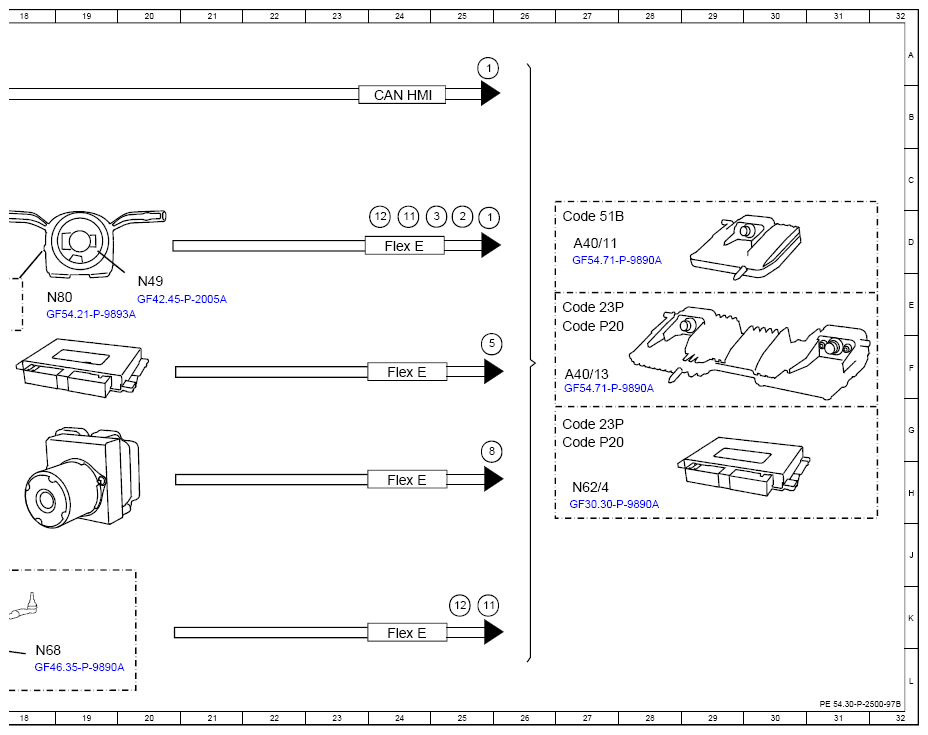

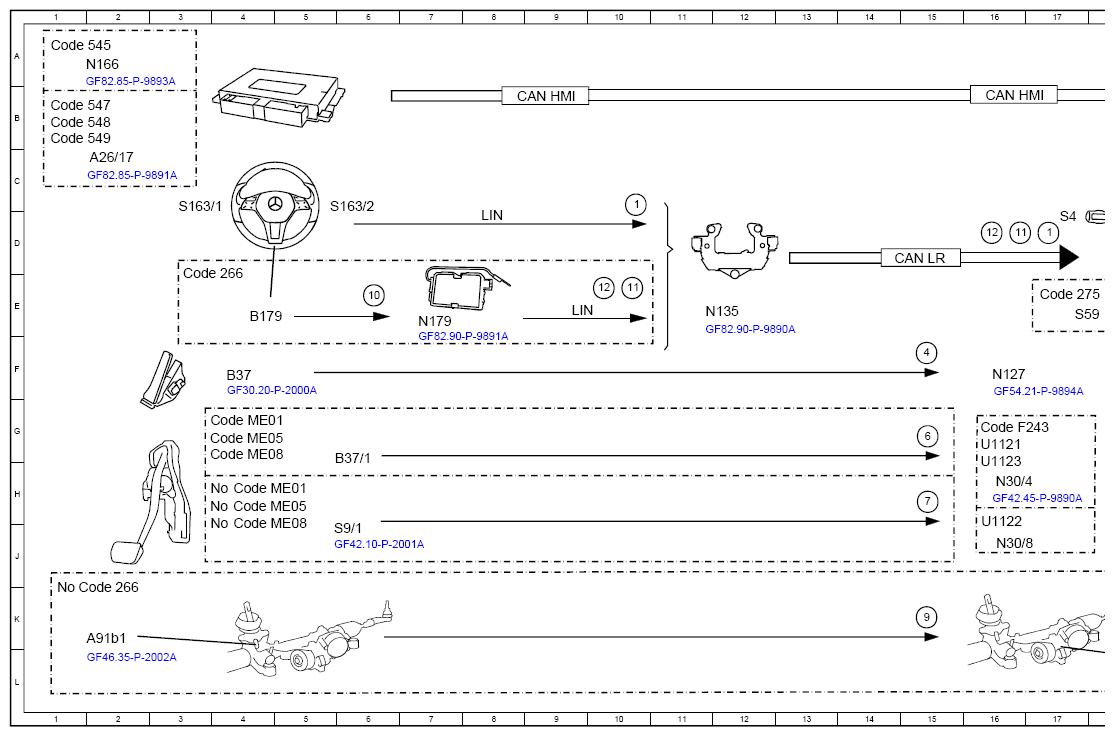

Recognize Driver Activity, Function Schematic - PE54.30-P-2500-97B
Model 118, 167, 177, 243, 247, 293 with code 22P (Lane tracking package) with code 51B (Rating, country group EURO-NCAP)
Model 118, 167, 177, 243, 247, 293 with code 23P (Drive package) except code 22P (Lane tracking package) except code 243 (Active Lane Keeping Assist (camera)) except code 513 (Road sign recognition system)
Model 118, 167, 177, 243, 247, 293 with code 243 (Active Lane Keeping Assist (camera)) with code 51B (Rating, country group EURO-NCAP)
Model 118, 167, 177, 243, 247, 293 with code
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 10D |
| 1 | Operation, signal | 25A |
| 1 | Operation, signal | 25D |
| 1 | Operation, signal | 17D |
| 10 | Hand-detection sensor, signal | 6E |
| 11 | Hands-on detection, status | 10E |
| 11 | Hands-on detection, status | 16D |
| 11 | Hands-on detection, status | 24D |
| 11 | Hands-on detection, status | 25K |
| 12 | Hands-Off-Detection, status | 10E |
| 12 | Hands-Off-Detection, status | 16D |
| 12 | Hands-Off-Detection, status | 24D |
| 12 | Hands-Off-Detection, status | 25K |
| 2 | Steering wheel angle, signal | 25D |
| 3 | Steering wheel velocity, signal | 25D |
| 4 | Accelerator pedal sensor, signal | 15F |
| 5 | Accelerator pedal position, signal | 25F |
| 6 | Pedal angle sensor, signal | 15H |
| 7 | Brake light switch, status | 15H |
| 8 | Service brake, status | 25H |
| 9 | Electric power steering torque sensor, signal | 15K |
| A26/17 | Head unit | 2C |
| A40/11 | Mono multifunction camera | 27D |
| A40/13 | Stereo multifunction camera | 27F |
| A91b1 | Electric power steering torque sensor | 2K |
| B179 | Hand-detection sensor | 4E |
| B37 | Accelerator pedal sensor | 4F |
| B37/1 | Pedal angle sensor | 5H |
| CAN HMI | User interface CAN | 9B |
| CAN HMI | User interface CAN | 24B |
| CAN HMI | User interface CAN | 16B |
| CAN LR | Steering wheel CAN | 15D |
| Code 23P | Driver assistance package | 27E |
| Code 23P | Driver assistance package | 27G |
| Code 266 | DISTRONIC PLUS with Steer Assist and Stop & Go Pilot | 1K |
| Code 266 | DISTRONIC PLUS with Steer Assist and Stop & Go Pilot | 3E |
| Code 275 | Memory package | 17E |
| Code 51B | EURO-NCAP | 27D |
| Code 545 | Connect 5 (NTG6) | 1A |
| Code 547 | Connect 20 Entry (NTG6) | 1B |
| Code 548 | Connect 20 MID (NTG6) | 1B |
| Code 549 | Connect 20 HIGH (NTG6) | 1B |
| Code F243 | MODEL SERIES 243 | 16G |
| Code ME01 | Electric motor | 4H |
| Code ME01 | Electric motor | 3G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 4H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 3G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 4J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 3G |
| Code P20 | Driver assistance package PLUS | 27G |
| Code P20 | Driver assistance package PLUS | 27E |
| Flex E | Chassis FlexRay | 24D |
| Flex E | Chassis FlexRay | 24F |
| Flex E | Chassis FlexRay | 24H |
| Flex E | Chassis FlexRay | 24K |
| LIN | Local Interconnect Network | 9E |
| LIN | Local Interconnect Network | 8D |
| N127 | Drivetrain control unit | 16F |
| N135 | Steering wheel electronics | 12E |
| N166 | Head unit/instrument cluster control unit | 2A |
| N179 | Hand detection system control unit | 7E |
| N30/4 | Electronic Stability Program control unit | 16H |
| N30/8 | Regenerative braking system control unit | 16J |
| N49 | Steering wheel angle sensor | 20E |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 27H |
| N68 | Electrical power steering control unit | 18L |
| N80 | Steering column module control unit | 18E |
| S163/1 | Instrument cluster multifunction steering wheel button group | 3C |
| S163/2 | Head unit multifunction steering wheel button group | 5C |
| S4 | Combination switch | 17D |
| S59 | Steering column adjustment switch | 17E |
| S9/1 | Stop lamp switch | 5J |
| U1121 | Valid for model 167 | 16G |
| U1122 | Valid for model 293 | 16J |
| U1123 | Valid for model 118, 177, 247 | 16H |
