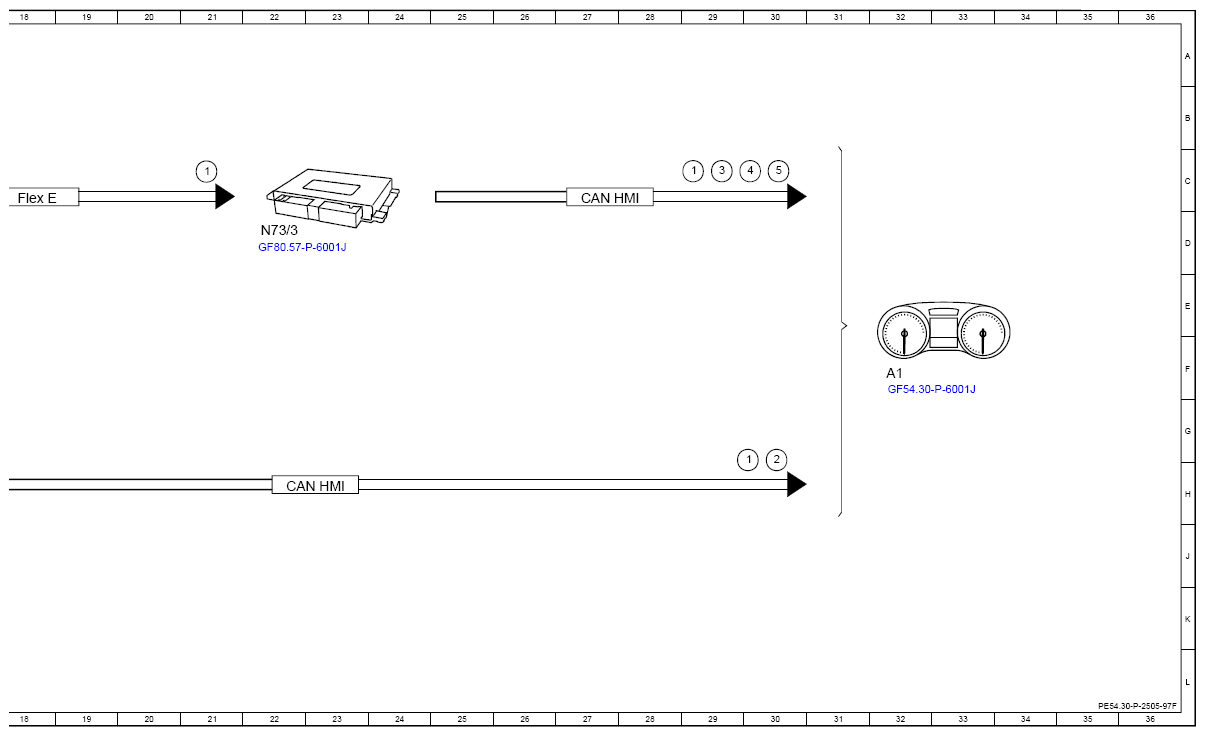

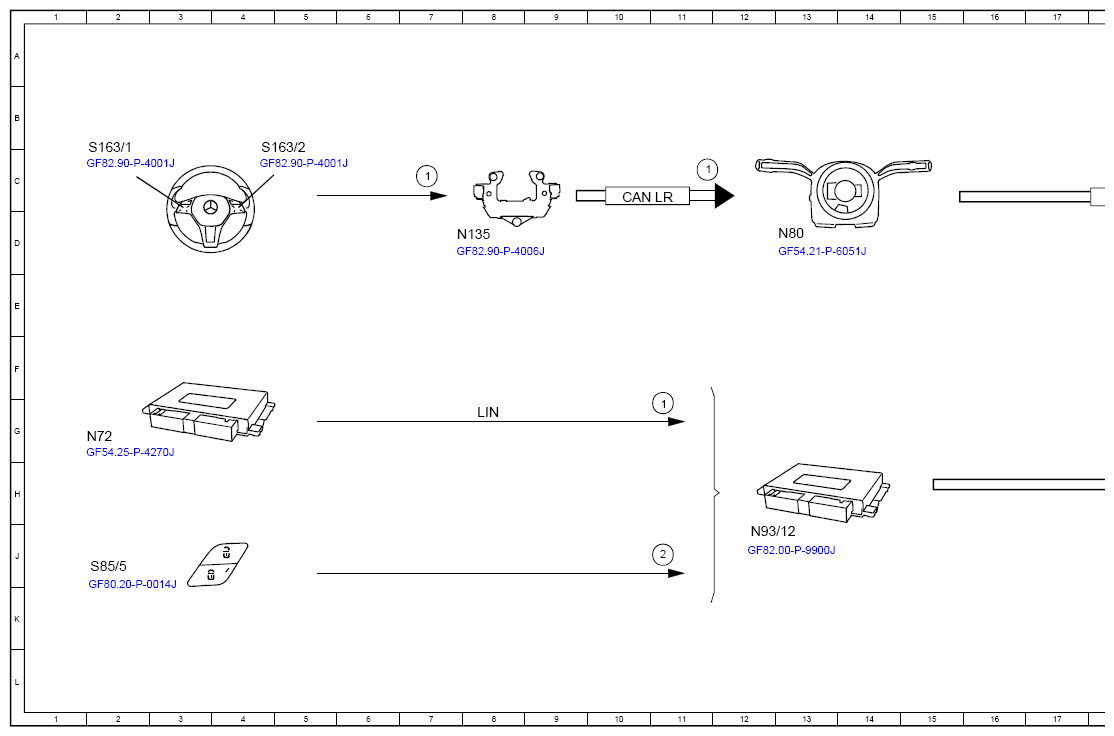

(Function Schematic For User Interface - PE54.30-P-2505-97F)
Model 464
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 7C |
| 1 | Operation, signal | 11C |
| 1 | Operation, signal | 11G |
| 1 | Operation, signal | 21C |
| 1 | Operation, signal | 29C |
| 1 | Operation, signal | 30H |
| 2 | Front door central locking inside door handle switch, status | 11J |
| 2 | Front door central locking inside door handle switch, status | 29H |
| 3 | Central locking, status | 29C |
| 4 | Circuit 15, status ON | 30C |
| 5 | Instrument cluster message, request | 30C |
| A1 | Instrument cluster | 32F |
| CAN HMI | CAN for user interface | 27C |
| CAN HMI | CAN for user interface | 22H |
| CAN LR | CAN for steering wheel | 10C |
| Flex E | Chassis FlexRay | 18C |
| LIN | Local Interconnect Network | 8G |
| N135 | Steering wheel electronics | 8D |
| N72 | Lower control panel | 2G |
| N73/3 | Electronic ignition switch control unit | 22D |
| N80 | Steering column module control unit | 13D |
| N93/12 | User interface control unit | 13H |
| S163/1 | Multifunction steering wheel button group 1 | 2C |
| S163/2 | Multifunction steering wheel button group 2 | 5C |
| S85/5 | Central locking interior switch | 2J |
