Weight Sensing System Control Unit, Basic Function - GF91.60-P-9891A

Model All (CAR) with code U10 (Front passenger seat with weight sensor)

Overview

This document contains the following information:

• Location
• Task

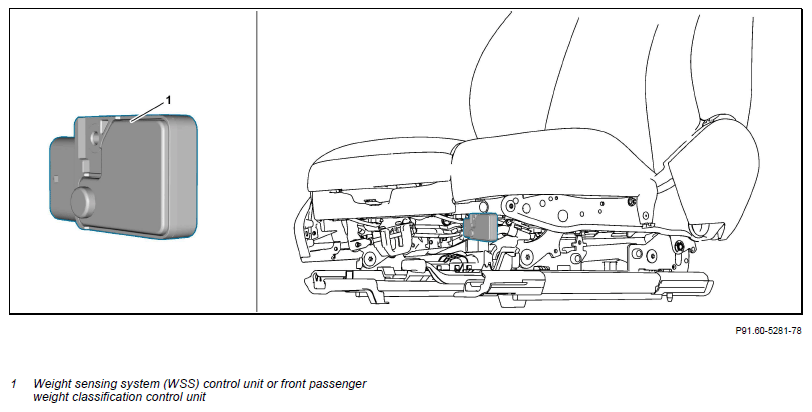

Fig 1: Weight Sensing System Control Unit Components Location - Model All (Car) With Code U10

Courtesy of MERCEDES-BENZ USA

Location

The WSS/weight classification control unit is located at the bottom of the seat frame of the front passenger seat.

Task

The WSS/weight classification control unit determines the weight on the front passenger seat by means of a pressure measurement in a silicone-filled seat mat. The WSS/weight classification control unit sends information on weight classification to the Supplemental Restraint System (SRS) control unit.
