Remove/Install Restraint Systems Control Unit - AR91.60-P-0624MFB

Model 118, 177, 243, 247

Shown on model 247.0

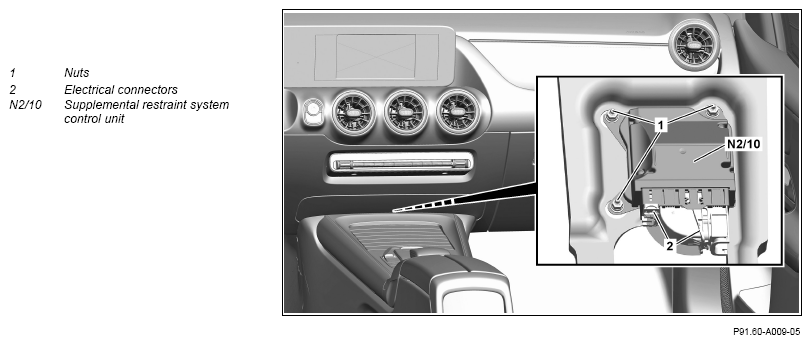

Fig 1: Restraint Systems Control Unit Components Location - Model 177 (Shown On Model 247.0)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Disconnect ground line from battery.		AR54.10-P-0003MFA
3	Loosen floor covering in driver and front passenger footwell in working area and place to one side.
4	Unlock powertrain control unit (N127) and place to one side with connected lines.	Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability.
5	Release and disconnect electrical connectors (2).
6	Remove nuts (1).	Screw/nut, control unit to vehicle floor	*BA91.60-P-1004-01Q
7	Remove Supplemental Restraint System control unit (N2/10).
8	Install in the reverse order.
9	Commission Supplemental Restraint System control unit (N2/10).	When replacing Supplemental Restraint System control unit (N2/10).
			AD00.00-P-2000-06MFA

AIRBAG

Number	Designation		Model 118	Model 177
BA91.60-P-1004-01Q	Screw/nut, control unit to vehicle floor	Nm	10	10

AIRBAG

Number	Designation		Model 243	Model 247
BA91.60-P-1004-01Q	Screw/nut, control unit to vehicle floor	Nm	10	10
