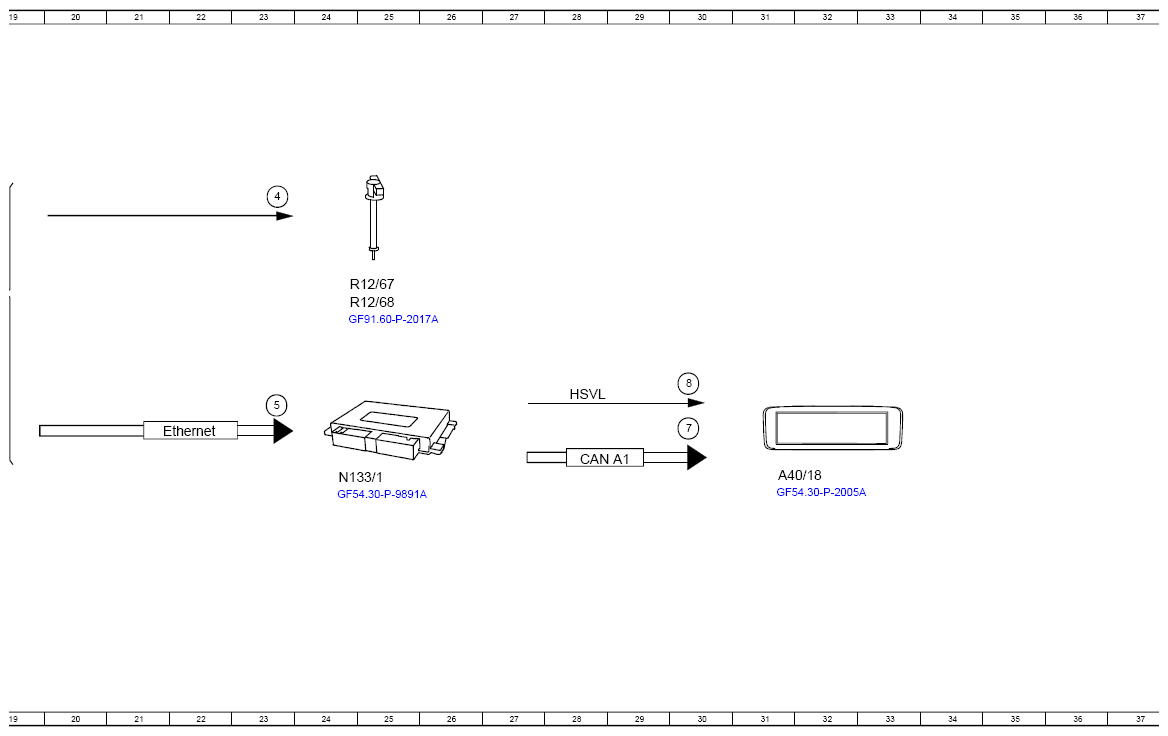

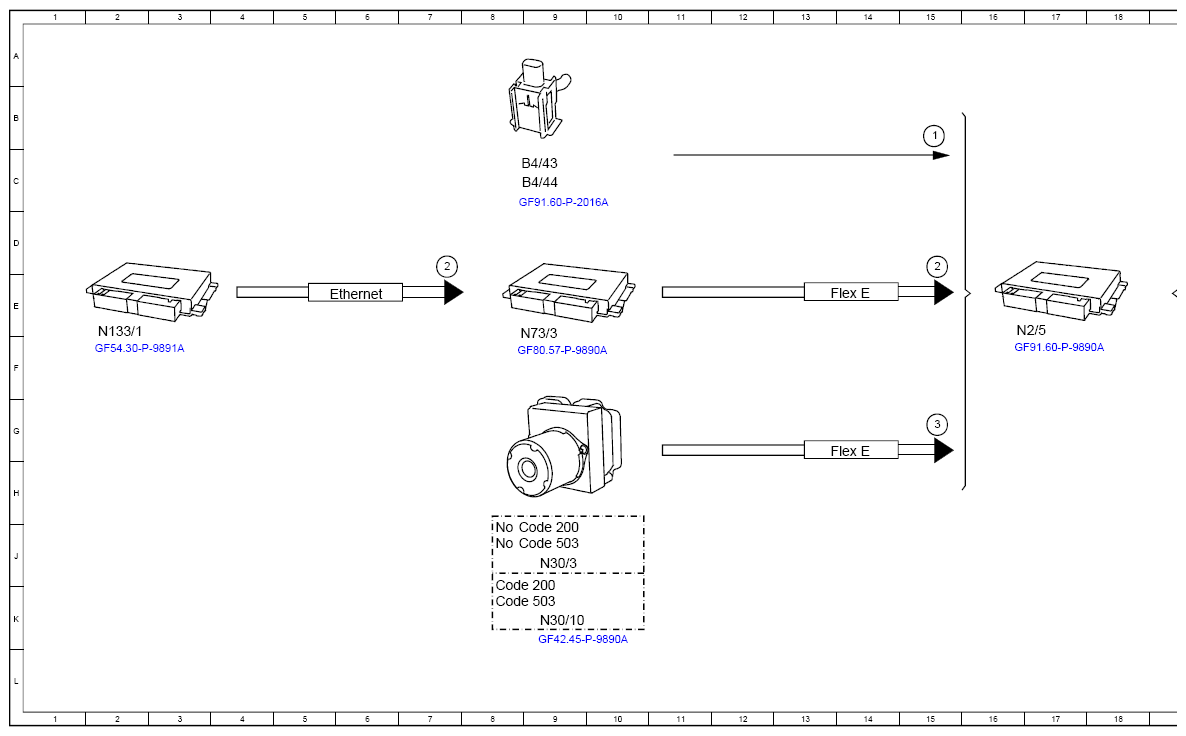

(Trigger Pedestrian Protection, Function Schematic - PE91.60-P-2503-97B)
Model 223, 297 with code U60 (Pedestrian protection - Active hood)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Pedestrian protection impact sensor, status | 15B |
| 2 | Displayed vehicle speed, signal | 7D |
| 2 | Displayed vehicle speed, signal | 15D |
| 3 | Vehicle speed, signal | 15G |
| 4 | Squib, actuation | 23C |
| 5 | Instrument cluster message, request | 23G |
| 7 | Instrument cluster warning message, actuation | 30G |
| 8 | Image data, signal | 30F |
| A40/18 | Instrument cluster display | 31H |
| B4/43 | Left front crash sensor | 9C |
| B4/44 | Right front crash sensor | 9C |
| CAN A1 | CAN 1 for telematics | 28H |
| Code 200 | Conditionally automated driving | 8K |
| Code 200 | Conditionally automated driving | 8J |
| Code 503 | Remote-controlled parking | 8J |
| Code 503 | Remote-controlled parking | 8K |
| Ethernet | Ethernet | 6E |
| Ethernet | Ethernet | 22G |
| Flex E | Chassis FlexRay | 14G |
| Flex E | Chassis FlexRay | 14E |
| HSVL | High-speed video link | 28F |
| N133/1 | Instrument cluster control unit | 2E |
| N133/1 | Instrument cluster control unit | 24H |
| N2/5 | Supplemental restraint system control unit | 17E |
| N30/10 | Electronic Stability Program control unit | 9K |
| N30/3 | Electronic Stability Program control unit | 9J |
| N73/3 | Electronic ignition switch control unit | 9F |
| R12/67 | Left rear hood lifter squib | 25E |
| R12/68 | Right rear hood lifter squib | 25E |
