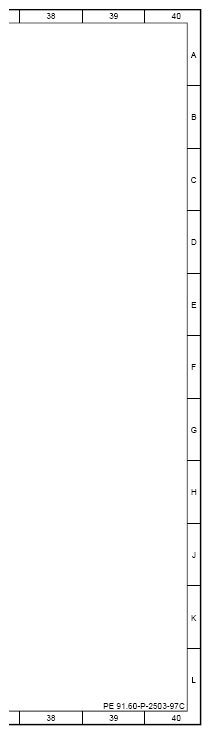

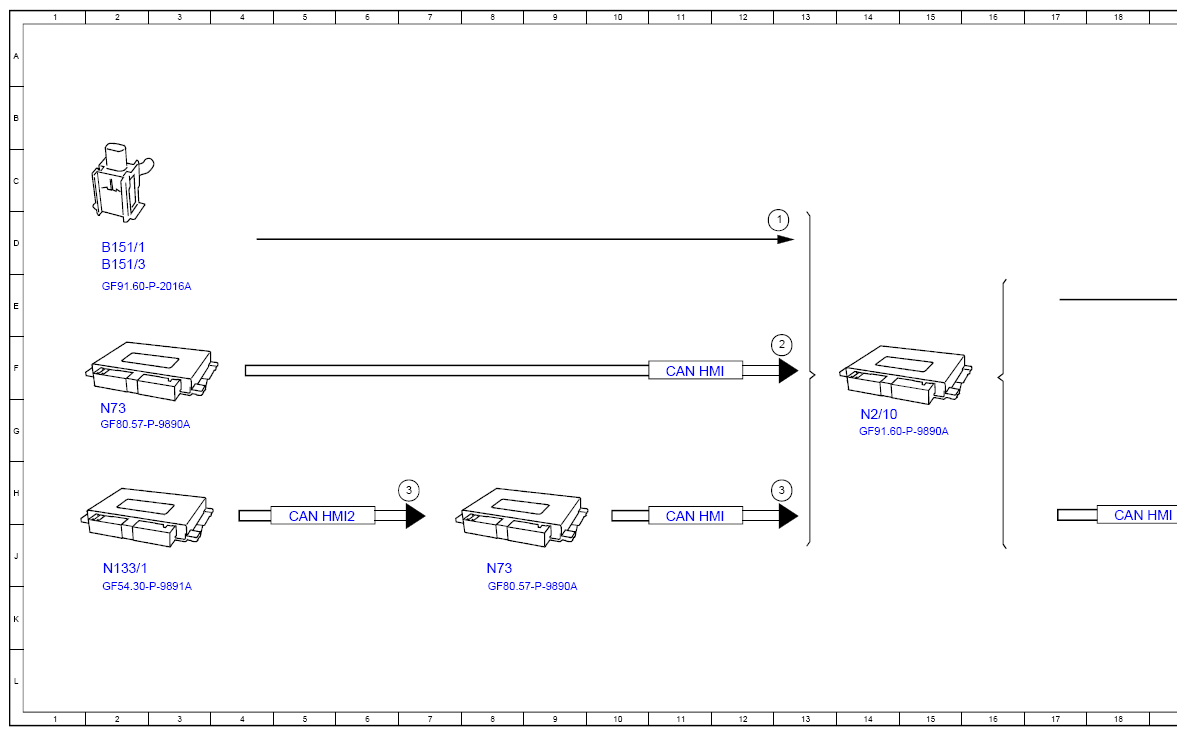

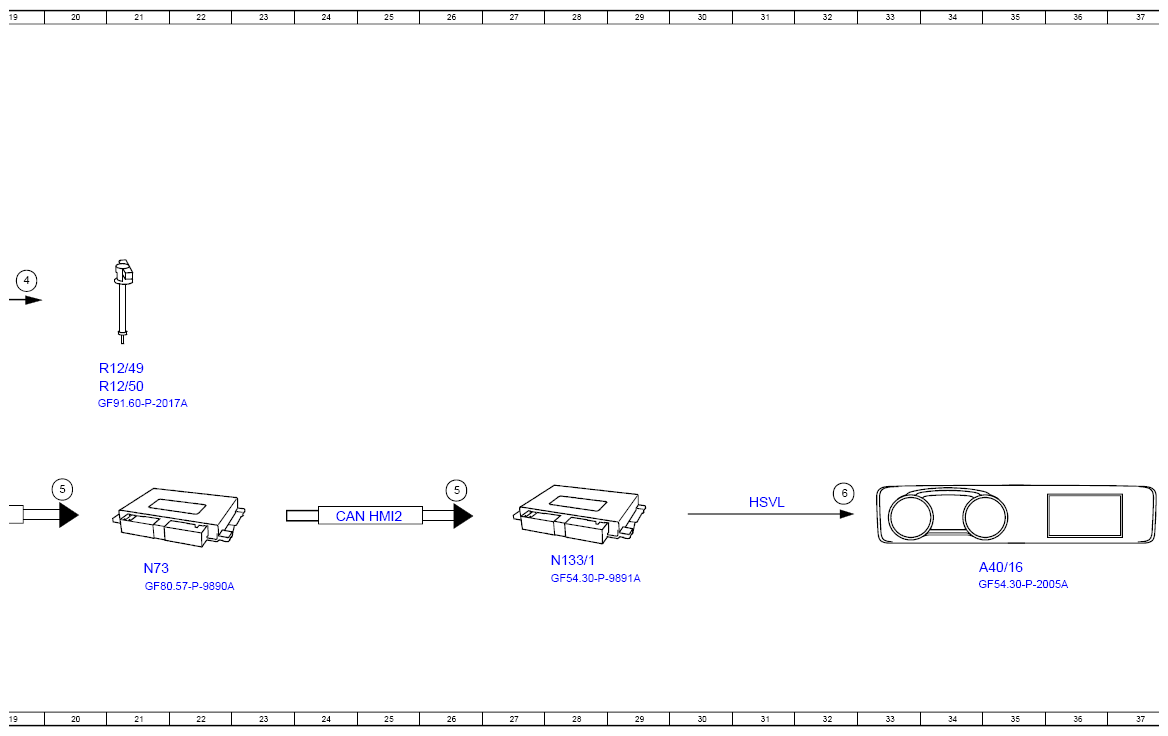

(Trigger Pedestrian Protection, Function Schematic - PE91.60-P-2503-97C)
Model 213, 238, 257, 290 as of model year 2021 with code U60 (Pedestrian protection - Active hood)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Pedestrian protection sensor, status | 13C |
| 2 | Terminal 15, status | 13F |
| 3 | Displayed vehicle speed, signal | 13H |
| 3 | Displayed vehicle speed, signal | 7H |
| 4 | squib, control | 19D |
| 5 | Instrument cluster message, request | 20H |
| 5 | Instrument cluster message, request | 26H |
| 6 | image data, signal | 32H |
| A40/16 | Display group head unit/instrument cluster | 35J |
| B151/1 | Pedestrian protection sensor, front left bumper | 2D |
| B151/3 | Pedestrian protection sensor, front right bumper | 2D |
| CAN HMI | User interface CAN | 18H |
| CAN HMI | User interface CAN | 11F |
| CAN HMI | User interface CAN | 11H |
| CAN HMI2 | User interface CAN 2 | 5H |
| CAN HMI2 | User interface CAN 2 | 24H |
| HSVL | High-Speed-Video-Link | 31H |
| N133/1 | Instrument cluster control unit | 2J |
| N133/1 | Instrument cluster control unit | 28J |
| N2/10 | Supplemental Restraint System control unit | 14G |
| N73 | Electronic ignition lock control unit | 2G |
| N73 | Electronic ignition lock control unit | 8J |
| N73 | Electronic ignition lock control unit | 21J |
| R12/49 | Squib active bonnet left | 21F |
| R12/50 | Squib active bonnet on the right | 21F |
