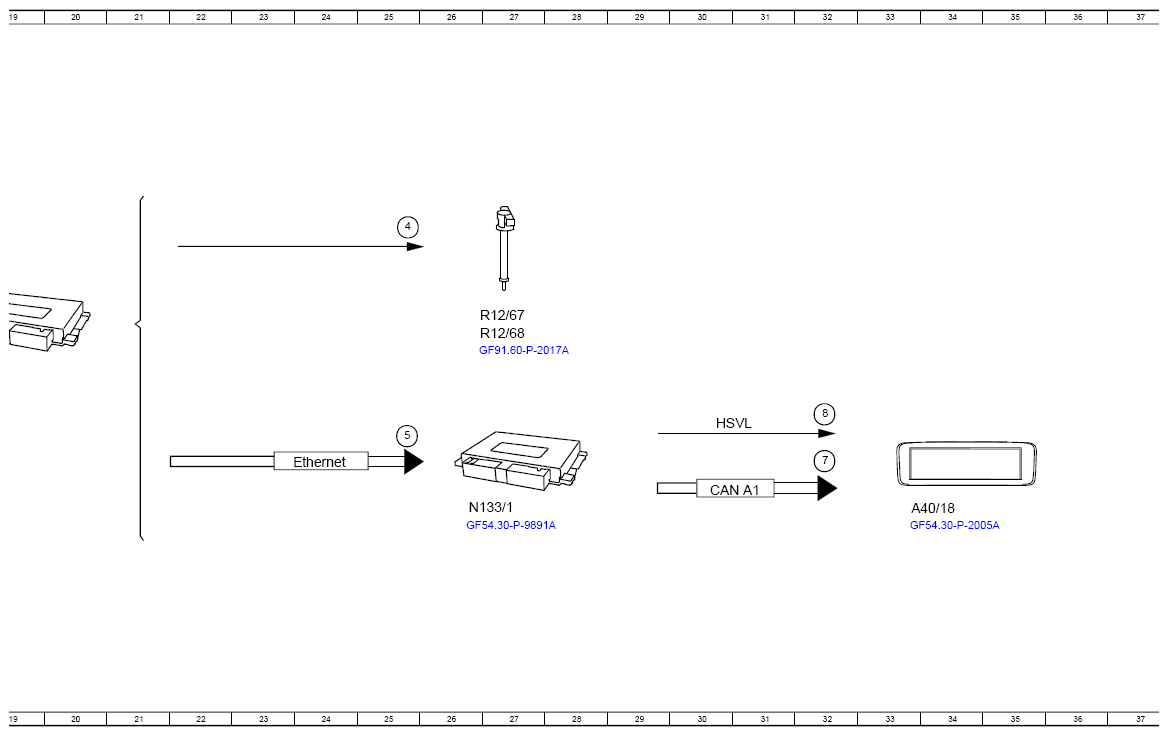

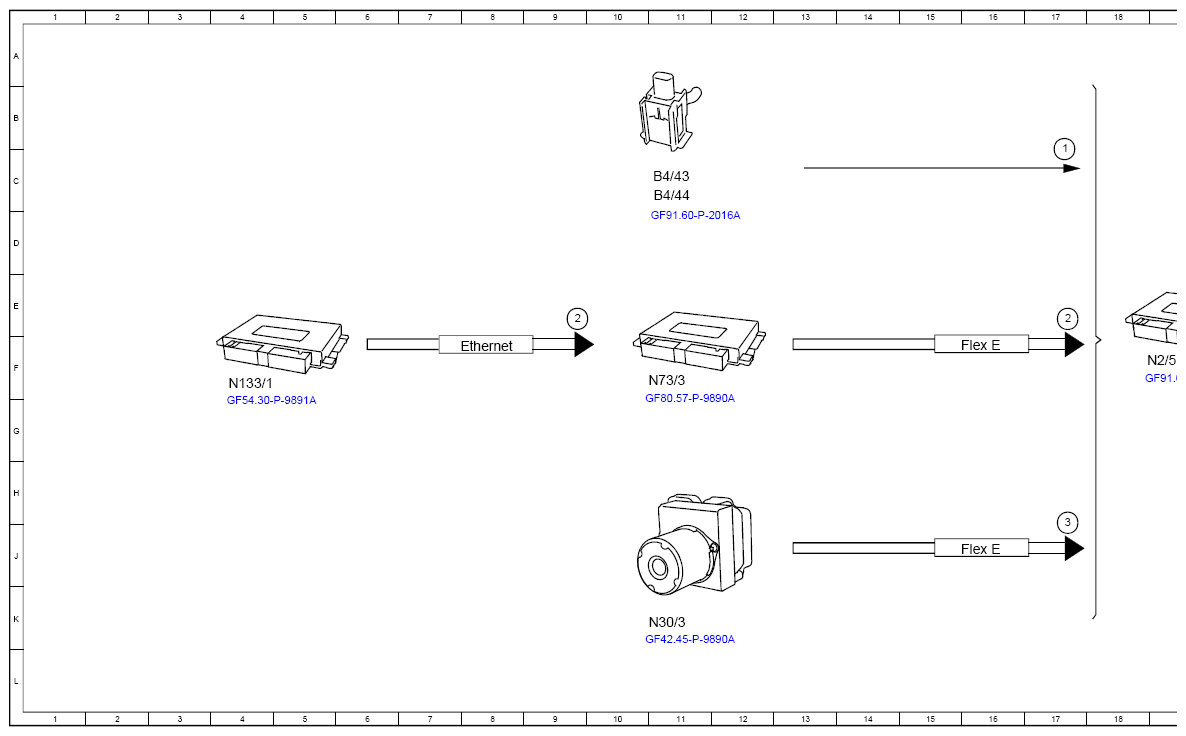

(Trigger Pedestrian Protection, Function Schematic - PE91.60-P-2503-97D)
Model 192, 206, 214, 232, 236, 254, 295 with code U60 (Pedestrian protection - Active hood)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Pedestrian protection impact sensor, status | 17C |
| 2 | Displayed vehicle speed, signal | 10E |
| 2 | Displayed vehicle speed, signal | 17E |
| 3 | Vehicle speed, signal | 17J |
| 4 | Squib, actuation | 25D |
| 5 | Instrument cluster message, request | 25G |
| 7 | Instrument cluster warning message, actuation | 32H |
| 8 | Image data, signal | 32G |
| A40/18 | Instrument cluster display | 34H |
| B4/43 | Left front crash sensor | 11C |
| B4/44 | Right front crash sensor | 11C |
| CAN A1 | CAN 1 for telematics | 30H |
| Ethernet | Ethernet | 8F |
| Ethernet | Ethernet | 24H |
| Flex E | Chassis FlexRay | 16J |
| Flex E | Chassis FlexRay | 16F |
| HSVL | High-speed video link | 30G |
| N133/1 | Instrument cluster control unit | 4F |
| N133/1 | Instrument cluster control unit | 26H |
| N2/5 | Supplemental restraint system control unit | 19F |
| N30/3 | Electronic Stability Program control unit | 11K |
| N73/3 | Electronic ignition switch control unit | 11F |
| R12/67 | Left rear hood lifter squib | 27E |
| R12/68 | Right rear hood lifter squib | 27F |
