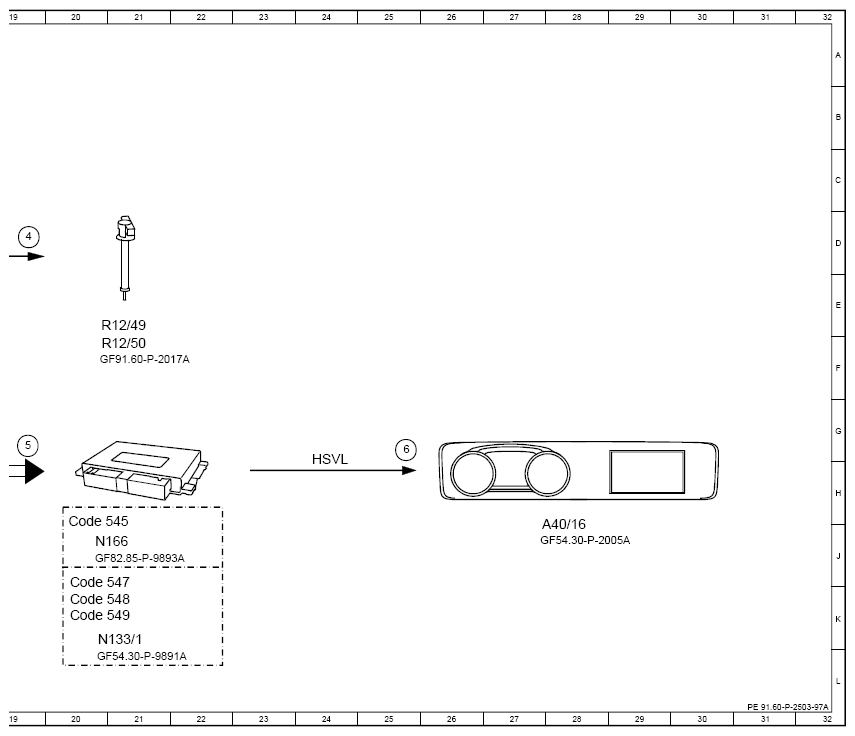

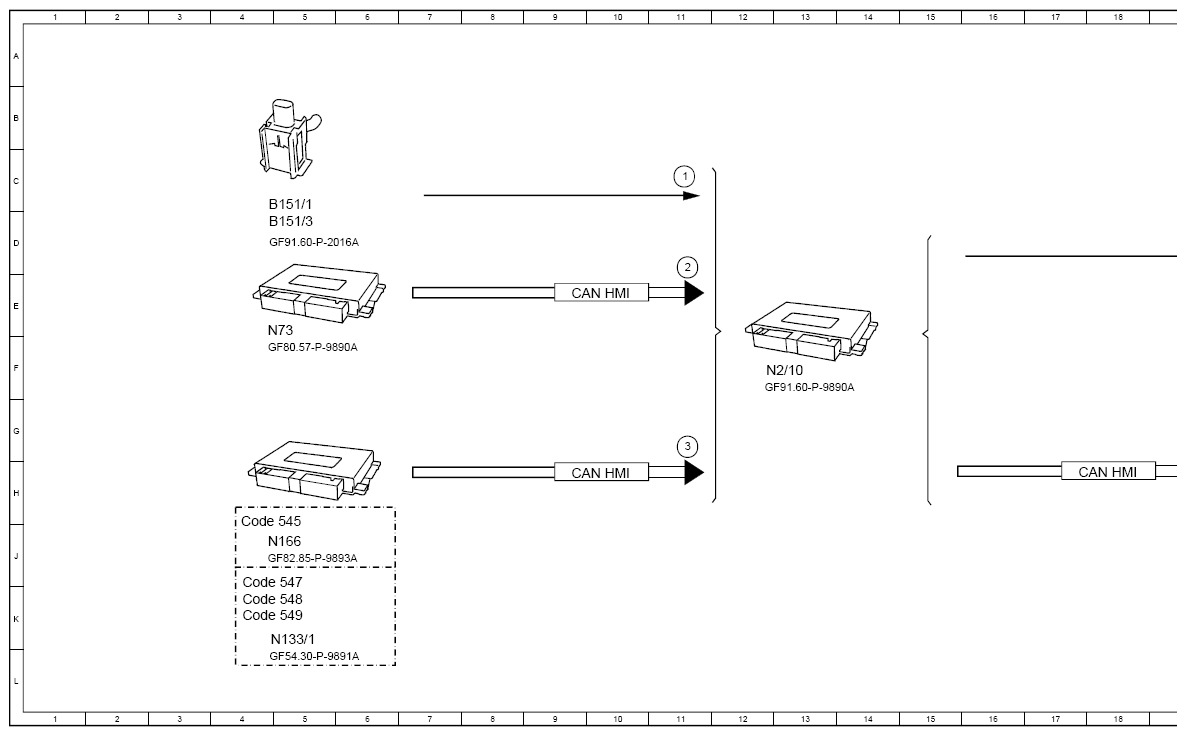

Trigger Pedestrian Protection, Function Schematic - PE91.60-P-2503-97A
Model 118, 167, 177, 243, 247 with code U60 (Pedestrian protection - Active hood)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Pedestrian protection sensor, status | 11C |
| 2 | Circuit 15, status | 11D |
| 3 | Displayed vehicle speed, signal | 11G |
| 4 | Squib, actuation | 19D |
| 5 | Instrument cluster message, request | 19G |
| 6 | Image data, signal | 25G |
| A40/16 | Head unit/instrument cluster display cluster | 28J |
| B151/1 | Left front bumper pedestrian protection sensor | 5C |
| B151/3 | Right front bumper pedestrian protection sensor | 5D |
| CAN HMI | User interface CAN | 18H |
| CAN HMI | User interface CAN | 10E |
| CAN HMI | User interface CAN | 10H |
| Code 545 | Connect 5 (NTG6) | 20J |
| Code 545 | Connect 5 (NTG6) | 4J |
| Code 547 | Connect 20 Entry (NTG6) | 20J |
| Code 547 | Connect 20 Entry (NTG6) | 4J |
| Code 548 | Connect 20 MID (NTG6) | 20K |
| Code 548 | Connect 20 MID (NTG6) | 4K |
| Code 549 | Connect 20 HIGH (NTG6) | 20K |
| Code 549 | Connect 20 HIGH (NTG6) | 4K |
| HSVL | High-speed video link | 24H |
| N133/1 | Instrument cluster control unit | 21K |
| N133/1 | Instrument cluster control unit | 5K |
| N166 | Head unit/instrument cluster control unit | 20J |
| N166 | Head unit/instrument cluster control unit | 5J |
| N2/10 | Supplemental restraint system control unit | 13F |
| N73 | Electronic ignition switch control unit | 5E |
| R12/49 | Left rear active engine hood squib | 21E |
| R12/50 | Right rear active engine hood squib | 21F |
