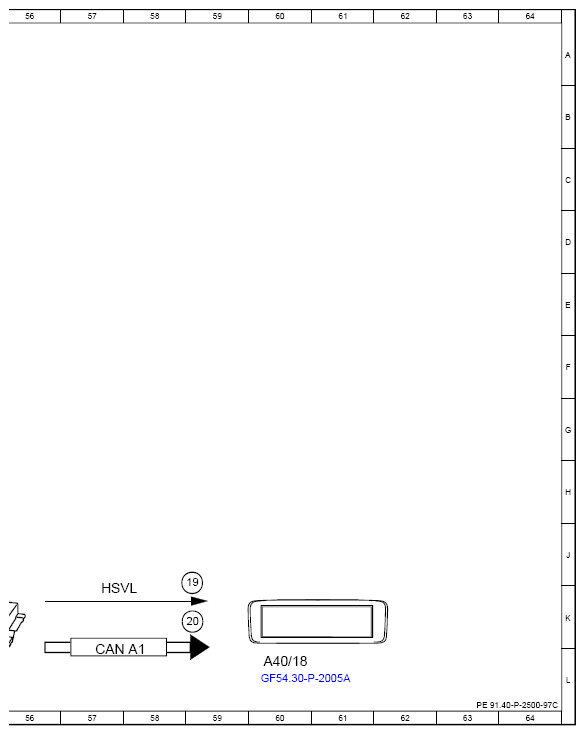

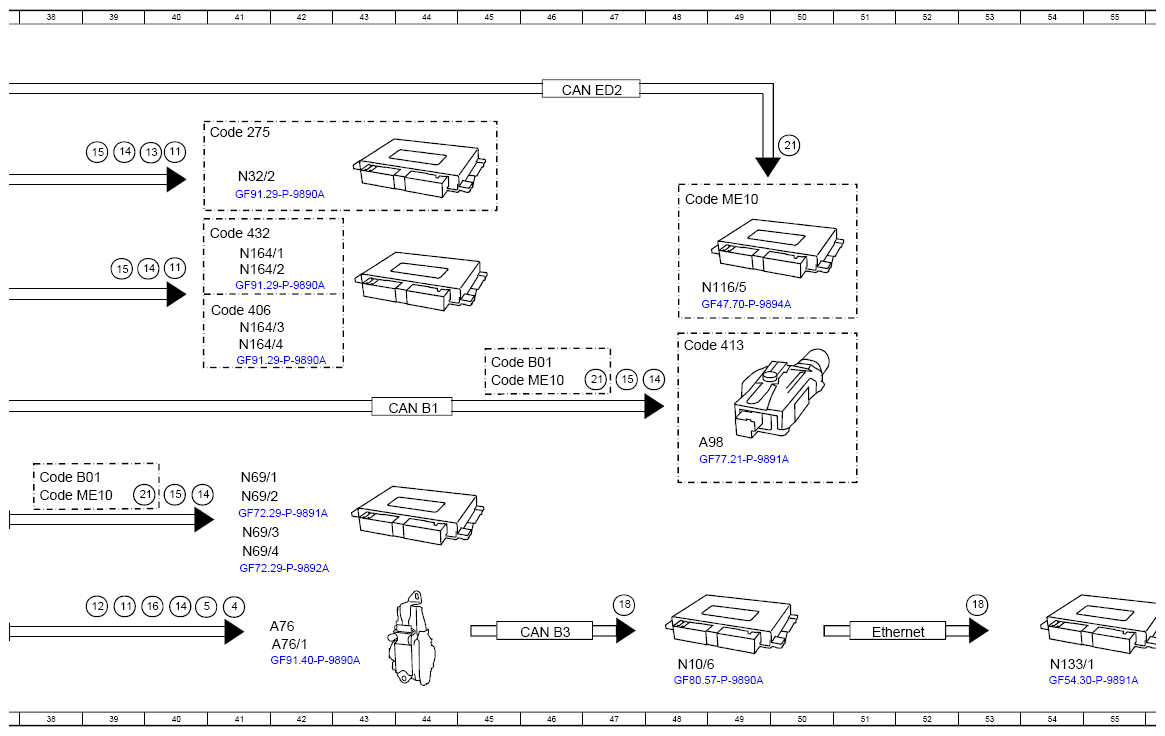

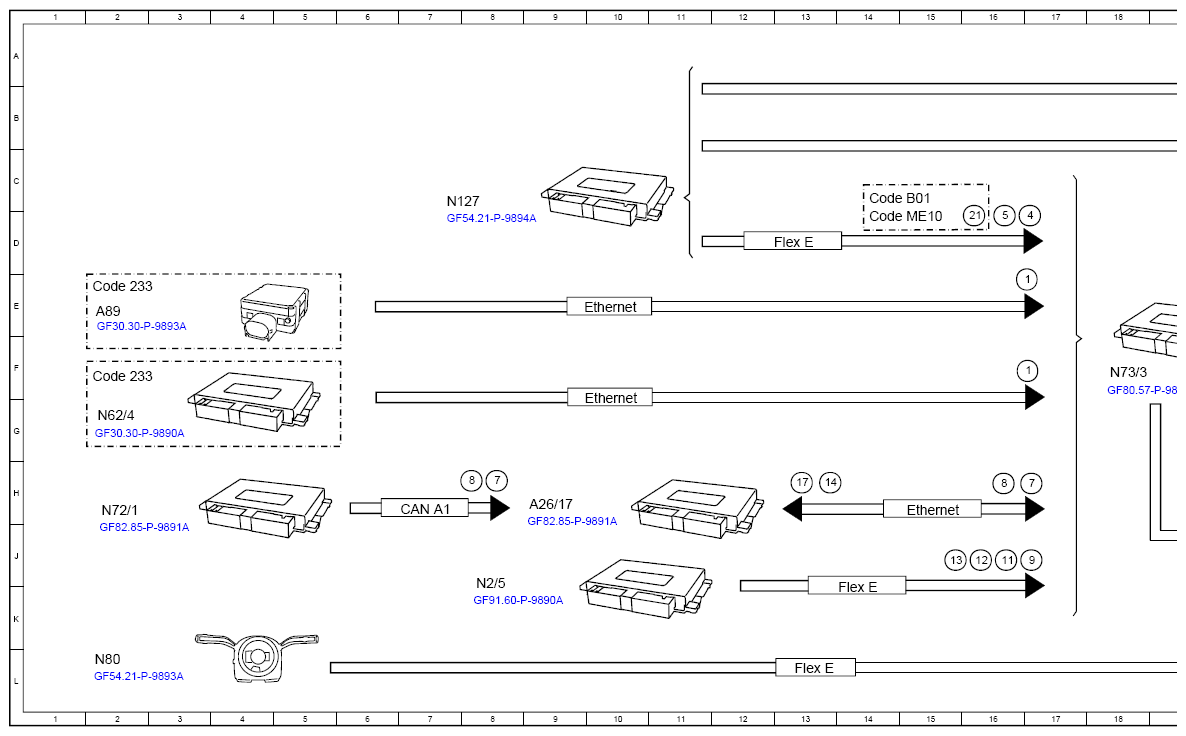

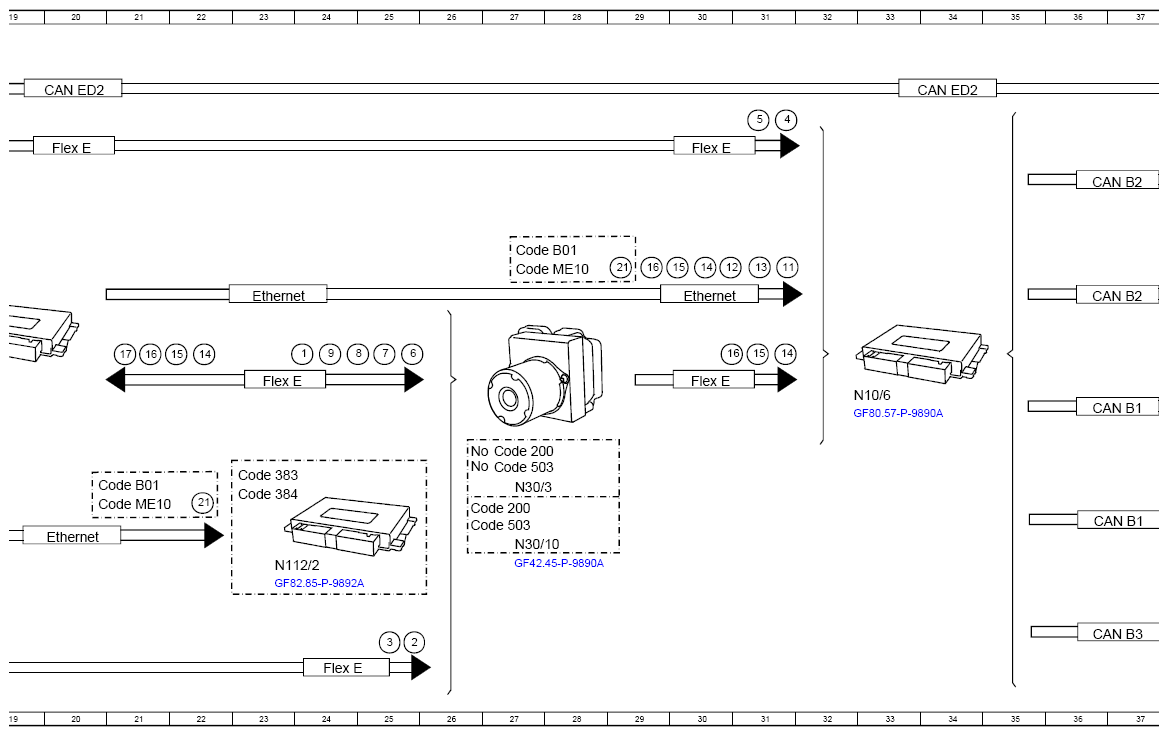

(Trigger Preventive Occupant Protection System, Function Schematic - PE91.40-P-2500-97C)
Model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Driver assistance system, status | 24F |
| 1 | Driver assistance system, status | 17E |
| 1 | Driver assistance system, status | 17F |
| 11 | Seat belt buckle switch, status | 16J |
| 11 | Seat belt buckle switch, status | 31D |
| 11 | Seat belt buckle switch, status | 39K |
| 11 | Seat belt buckle switch, status | 40D |
| 11 | Seat belt buckle switch, status | 40B |
| 12 | Crash, signal | 16J |
| 12 | Crash, signal | 30D |
| 12 | Crash, signal | 39K |
| 13 | Front passenger seat occupied recognition, status | 15J |
| 13 | Front passenger seat occupied recognition, status | 31D |
| 13 | Front passenger seat occupied recognition, status | 40C |
| 14 | PRE-SAFE®, status | 13H |
| 14 | PRE-SAFE®, status | 22F |
| 14 | PRE-SAFE®, status | 32F |
| 14 | PRE-SAFE®, status | 30D |
| 14 | PRE-SAFE®, status | 40K |
| 14 | PRE-SAFE®, status | 41H |
| 14 | PRE-SAFE®, status | 48F |
| 14 | PRE-SAFE®, status | 39D |
| 14 | PRE-SAFE®, status | 39B |
| 15 | Adjust PRE-SAFE®, request | 22F |
| 15 | Adjust PRE-SAFE®, request | 31F |
| 15 | Adjust PRE-SAFE®, request | 30D |
| 15 | Adjust PRE-SAFE®, request | 40H |
| 15 | Adjust PRE-SAFE®, request | 47F |
| 15 | Adjust PRE-SAFE®, request | 39D |
| 15 | Adjust PRE-SAFE®, request | 39B |
| 16 | PRE-SAFE® system stage, request | 21F |
| 16 | PRE-SAFE® system stage, request | 31F |
| 16 | PRE-SAFE® system stage, request | 29D |
| 16 | PRE-SAFE® system stage, request | 40J |
| 17 | PRE-SAFE® Sound, request | 13H |
| 17 | PRE-SAFE® Sound, request | 21F |
| 18 | Instrument cluster message, request | 47K |
| 18 | Instrument cluster message, request | 53J |
| 19 | Image data, signal | 59J |
| 2 | Steering wheel angle, signal | 25K |
| 20 | Display, actuation | 59K |
| 21 | Battery thermal runaway, request | 16C |
| 21 | Battery thermal runaway, request | 22H |
| 21 | Battery thermal runaway, request | 29D |
| 21 | Battery thermal runaway, request | 40H |
| 21 | Battery thermal runaway, request | 47F |
| 21 | Battery thermal runaway, request | 50B |
| 3 | Steering wheel velocity, signal | 25K |
| 4 | Engine running, signal | 17C |
| 4 | Engine running, signal | 31B |
| 4 | Engine running, signal | 41J |
| 5 | Drivetrain operational, signal | 16C |
| 5 | Drivetrain operational, signal | 31B |
| 5 | Drivetrain operational, signal | 40J |
| 6 | Circuit 15, status | 25E |
| 7 | ESP® mode, request | 8H |
| 7 | ESP® mode, request | 17H |
| 7 | ESP® mode, request | 25F |
| 8 | Transmission mode, request | 8G |
| 8 | Transmission mode, request | 16G |
| 8 | Transmission mode, request | 25E |
| 9 | Speed, turn rate and lateral acceleration, signal | 17H |
| 9 | Speed, turn rate and lateral acceleration, signal | 24F |
| A26/17 | Head unit | 9H |
| A40/18 | Instrument cluster display | 60L |
| A76 | Left front reversible emergency tensioning retractor | 42K |
| A76/1 | Right front reversible emergency tensioning retractor | 42K |
| A89 | Long-range radar sensor | 2E |
| A98 | Panoramic sliding sunroof control module | 48G |
| CAN A1 | CAN 1 for telematics | 7H |
| CAN A1 | CAN 1 for telematics | 57L |
| CAN B1 | CAN 1 for vehicle interior | 37J |
| CAN B1 | CAN 1 for vehicle interior | 36G |
| CAN B1 | CAN 1 for vehicle interior | 44G |
| CAN B2 | CAN 2 for vehicle interior | 36E |
| CAN B2 | CAN 2 for vehicle interior | 36C |
| CAN B3 | CAN 3 for vehicle interior | 37K |
| CAN B3 | CAN 3 for vehicle interior | 46K |
| CAN ED2 | CAN for energy management | 20B |
| CAN ED2 | CAN for energy management | 34B |
| CAN ED2 | CAN for energy management | 46B |
| Code 200 | Conditionally automated driving | 26H |
| Code 200 | Conditionally automated driving | 27G |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 2F |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 2E |
| Code 275 | Memory Package (driver's seat, steering column and mirrors) | 41B |
| Code 383 | RAMSES ENTRY communication module | 23H |
| Code 384 | RAMSES HIGH communication module | 23H |
| Code 406 | Multicontour seats in rear | 41E |
| Code 413 | Panoramic sliding sunroof/glass roof | 48F |
| Code 432 | Dynamic seat on left and right | 41D |
| Code 503 | Remote-controlled parking | 27H |
| Code 503 | Remote-controlled parking | 26J |
| Code B01 | 48V technology | 14C |
| Code B01 | 48V technology | 20H |
| Code B01 | 48V technology | 27D |
| Code B01 | 48V technology | 38H |
| Code B01 | 48V technology | 45F |
| Code ME10 | Hybrid vehicle | 14D |
| Code ME10 | Hybrid vehicle | 20H |
| Code ME10 | Hybrid vehicle | 27D |
| Code ME10 | Hybrid vehicle | 38H |
| Code ME10 | Hybrid vehicle | 45F |
| Code ME10 | Hybrid vehicle | 48C |
| Ethernet | Ethernet | 10G |
| Ethernet | Ethernet | 15H |
| Ethernet | Ethernet | 10E |
| Ethernet | Ethernet | 23E |
| Ethernet | Ethernet | 30E |
| Ethernet | Ethernet | 51K |
| Ethernet | Ethernet | 20J |
| Flex E | Chassis FlexRay | 13L |
| Flex E | Chassis FlexRay | 24L |
| Flex E | Chassis FlexRay | 14K |
| Flex E | Chassis FlexRay | 13D |
| Flex E | Chassis FlexRay | 23F |
| Flex E | Chassis FlexRay | 30F |
| Flex E | Chassis FlexRay | 20C |
| Flex E | Chassis FlexRay | 30C |
| HSVL | High-speed video link | 57K |
| N10/6 | Front signal acquisition and actuation module control unit | 48L |
| N10/6 | Front signal acquisition and actuation module control unit | 33G |
| N112/2 | Telematics services communication module | 23J |
| N116/5 | DC/DC converter charger | 48E |
| N127 | Drivetrain control unit | 7C |
| N133/1 | Instrument cluster control unit | 54L |
| N164/1 | Left front multicontour seat control unit | 41D |
| N164/2 | Right front multicontour seat control unit | 41E |
| N164/3 | Left rear multicontour seat control unit | 41E |
| N164/4 | Right rear multicontour seat control unit | 41F |
| N2/5 | Supplemental restraint system control unit | 8K |
| N30/10 | Electronic Stability Program control unit | 27J |
| N30/3 | Electronic Stability Program control unit | 27H |
| N32/2 | Front passenger seat control unit | 41C |
| N62/4 | Driver assistance systems control unit | 2G |
| N69/1 | Left front door control unit | 41H |
| N69/2 | Right front door control unit | 41H |
| N69/3 | Left rear door control unit | 41J |
| N69/4 | Right rear door control unit | 41J |
| N72/1 | Upper control panel control unit | 2H |
| N73/3 | Electronic ignition switch control unit | 18F |
| N80 | Steering column module control unit | 2L |
