Wiring Diagram For Steering Column Module Control Unit - PE46.10-P-2101-97IBA
Model 177
Control unit N80
| Code: | Designation: | Position: |
|---|---|---|

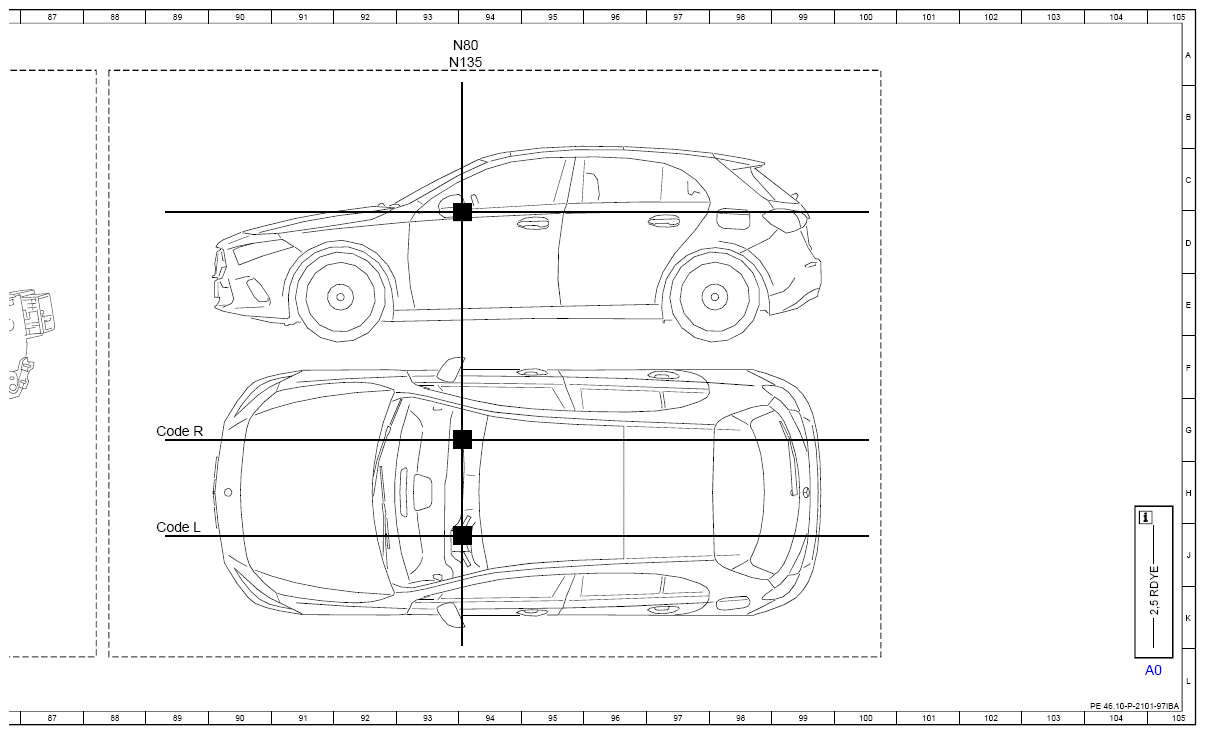

| A0 | Use of wiring diagrams | 105L |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 15G |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 12G |
| Code 239 | Active Distance Assist DISTRONIC | 15G |
| Code 239 | Active Distance Assist DISTRONIC | 12G |
| Code 258 | Active Brake Assist | 15H |
| Code 258 | Active Brake Assist | 12H |
| Code 426 | 8G-DCT | 42A |
| Code 429 | 7G-DCT | 42A |
| Code 443 | Steering wheel heater | 38A |
| Code 460 | Canada version | 19A |
| Code 460 | Canada version | 26A |
| Code 494 | USA version | 19A |
| Code 494 | USA version | 26A |
| Code L | LEFT-HAND DRIVE | 47L |
| Code L | LEFT-HAND DRIVE | 52L |
| Code L | LEFT-HAND DRIVE | 6E |
| Code L | LEFT-HAND DRIVE | 89J |
| Code R | RIGHT-HAND DRIVE | 47L |
| Code R | RIGHT-HAND DRIVE | 52L |
| Code R | RIGHT-HAND DRIVE | 6F |
| Code R | RIGHT-HAND DRIVE | 89G |
| F152/4 | Vehicle interior fuse and relay module | 5L |
| F152/4f110 | Fuse 110 | 6L |
| F152/4f164 | Fuse 164 | 4L |
| Flex E | Chassis FlexRay | 16K |
| Flex E | Chassis FlexRay | 10K |
| Flex E | Chassis FlexRay | 14K |

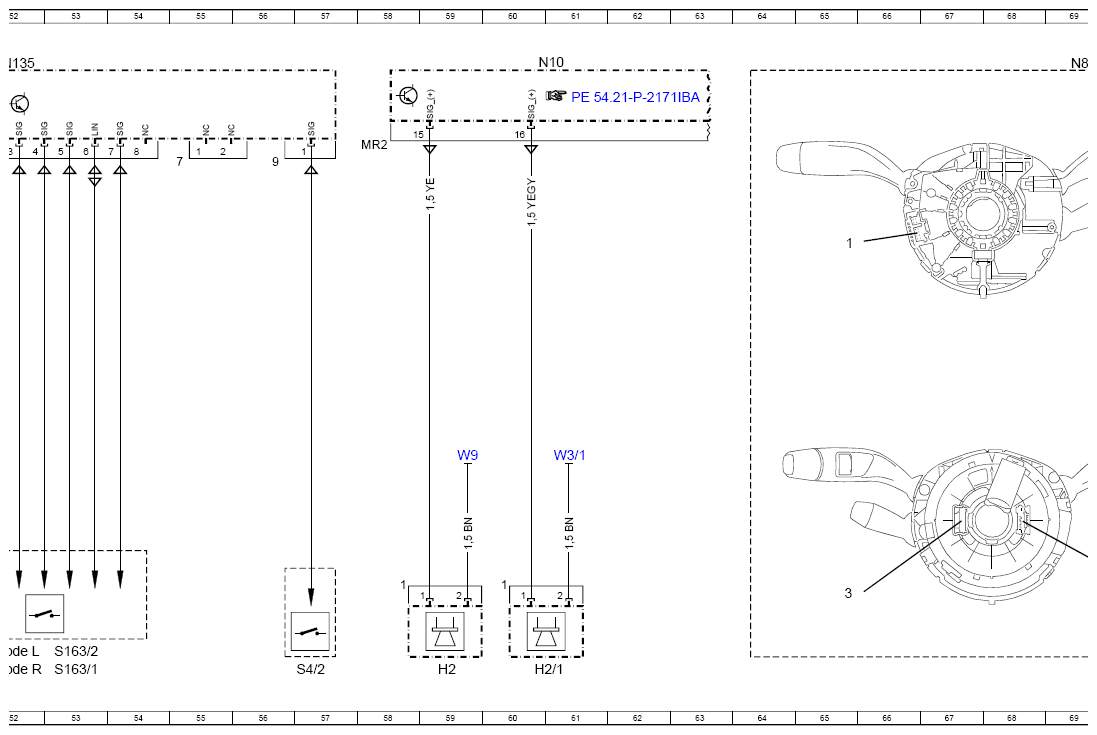

| H2 | Left fanfare horn | 59L |
| H2/1 | Right fanfare horn | 60L |
| N10 | Central control module | 60A |
| N127 | Drivetrain control unit | 14L |

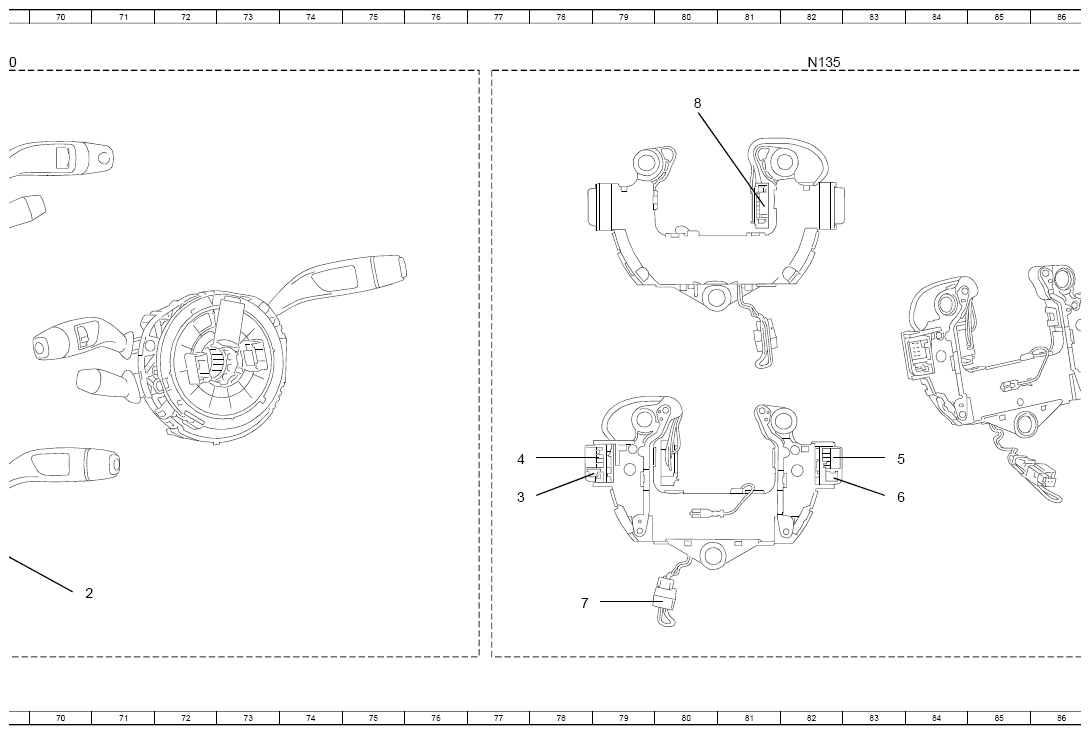

| N135 | Steering wheel electronics | 36A |
| N135 | Steering wheel electronics | 44A |
| N135 | Steering wheel electronics | 52A |
| N135 | Steering wheel electronics | 82A |
| N135 | Steering wheel electronics | 93A |
| N2/10 | Supplemental restraint system control unit | 20L |
| N68 | Electrical power steering control unit | 16L |
| N73 | Electronic ignition switch control unit | 10L |

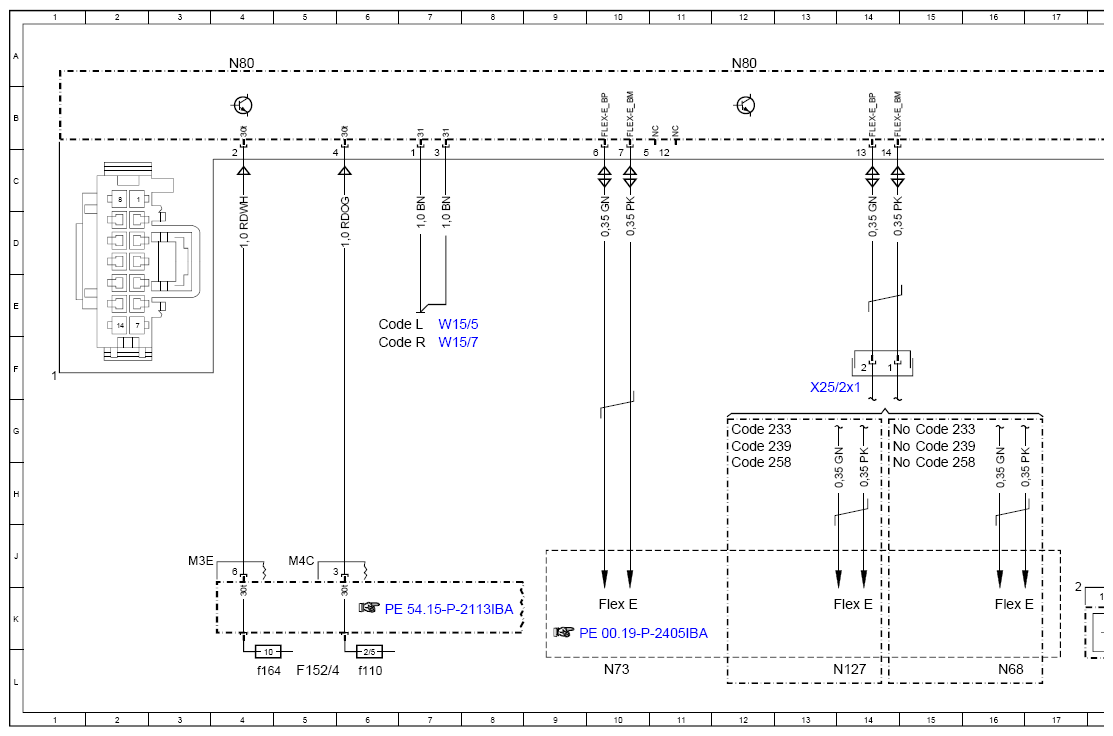

| N80 | Steering column module control unit | 4A |
| N80 | Steering column module control unit | 12A |
| N80 | Steering column module control unit | 28A |
| N80 | Steering column module control unit | 21A |
| N80 | Steering column module control unit | 69A |
| N80 | Steering column module control unit | 94A |

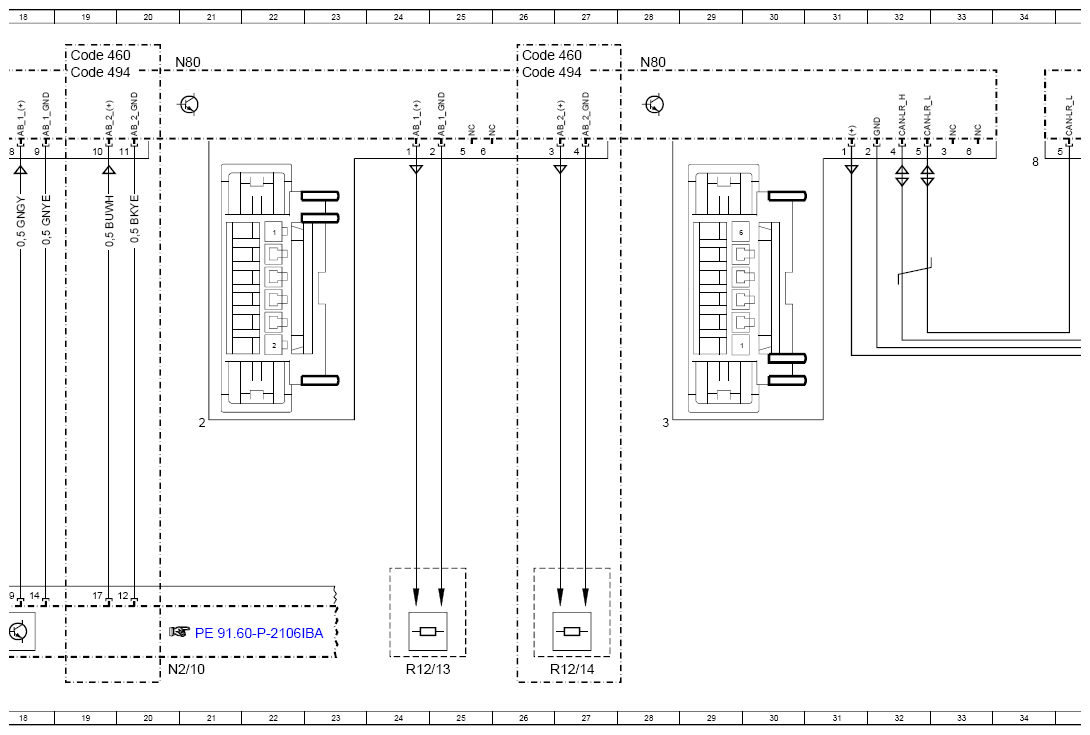

| R12/13 | Driver airbag squib 1 | 24L |
| R12/14 | Driver airbag squib 2 | 27L |

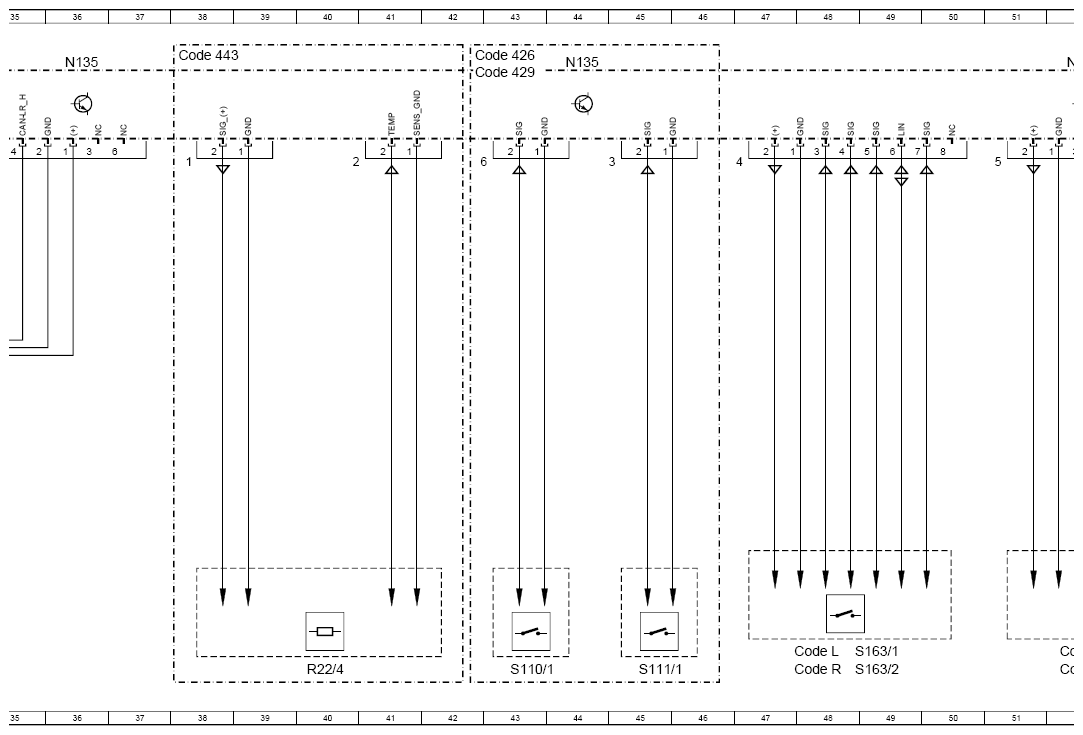

| R22/4 | Steering wheel heater | 40L |
| S110/1 | Steering wheel downshift button | 43L |
| S111/1 | Steering wheel upshift button | 45L |
| S163/1 | Instrument cluster multifunction steering wheel button group | 53L |
| S163/1 | Instrument cluster multifunction steering wheel button group | 48L |
| S163/2 | Head unit multifunction steering wheel button group | 53L |
| S163/2 | Head unit multifunction steering wheel button group | 48L |
| S4/2 | Horns contact plate | 57L |
| W15/5 | Left front footwell ground point | 7E |
| W15/7 | Right front footwell ground point | 7F |
| W3/1 | Ground point (right front wheel well) | 61G |
| W9 | Left front ground point | 59G |
| X25/2x1 | Engine compartment/vehicle interior electrical connector | 13F |
