Remove/Install Electrical Power Steering (ES) Control Unit Motor - AR46.20-P-0701MFA
Model 118, 177, 247
Shown on model 177.0

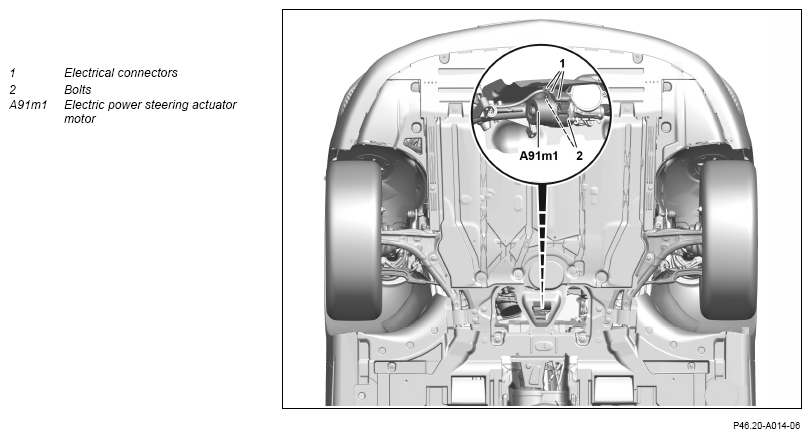

Fig 1: Electrical Power Steering Actuator/Motor Components Location - Model 177 (Shown On Model 177.0)
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Turn front wheels to straight-ahead position and fix steering wheel at center position. | Fig 2 | |
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove lower engine compartment lining. | Model 118, 177, 247 with engine 260 with code M016 (Uprated engine) Model 118, 177, 247.7 with engine 139 |
AR61.20-P-1105MFR |
| Model 118, 177, 247 with engine 260 except code M016 (Uprated engine) Model 118, 177, 247 with engine 282 |
AR61.20-P-1105MFA | ||
| Model 118, 177, 247 with engine 608, 654 | AR61.20-P-1105MFE | ||
| 4 | Release and disconnect electrical connections (1). | ||
| 5 | Remove screws (2). | ||
| *BA46.20-P-1003-01T | |||

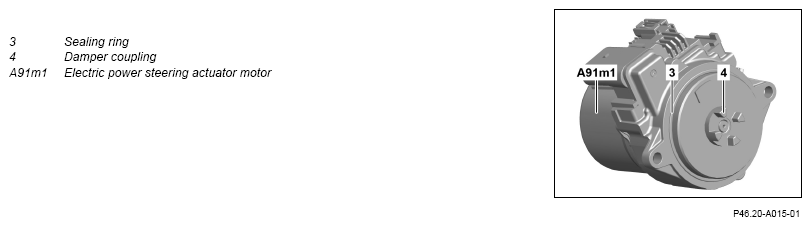

| 6 | Remove electric power steering actuator motor (A91m1). | Ensure that the sealing ring (3) is seated correctly. |
|
| 7 | Protect rack-and-pinion steering and electric power steering actuator motor (A91m1) against soiling using lint-free rags. | ||
| Check | |||
| 8 | Check damper coupling (4) for damage. | If damage is found, ↓ Replace electric power steering actuator motor (A91m1). |
|
| 9 | Install in the reverse order. | ||
| Initial startup | |||
| 10 | Slowly turn steering wheel to and fro out of center position by 2°. | ||
| 11 | Calibrate torque sensor of electric power steering actuator motor (A91m1). | When replacing electric power steering actuator motor (A91m1). | |
Do not perform any work on the vehicle during the adjustment process. Otherwise, the adjustment may be negatively influenced. |
AD00.00-P-2000-06MFA |
STEERING GEAR
| Number | Designation | Model 118, 177, 247 | |
|---|---|---|---|
| BA46.20-P-1003-01T | Bolt, motor controller unit (ES) to rack-and-pinion steering | Nm | 19 |
