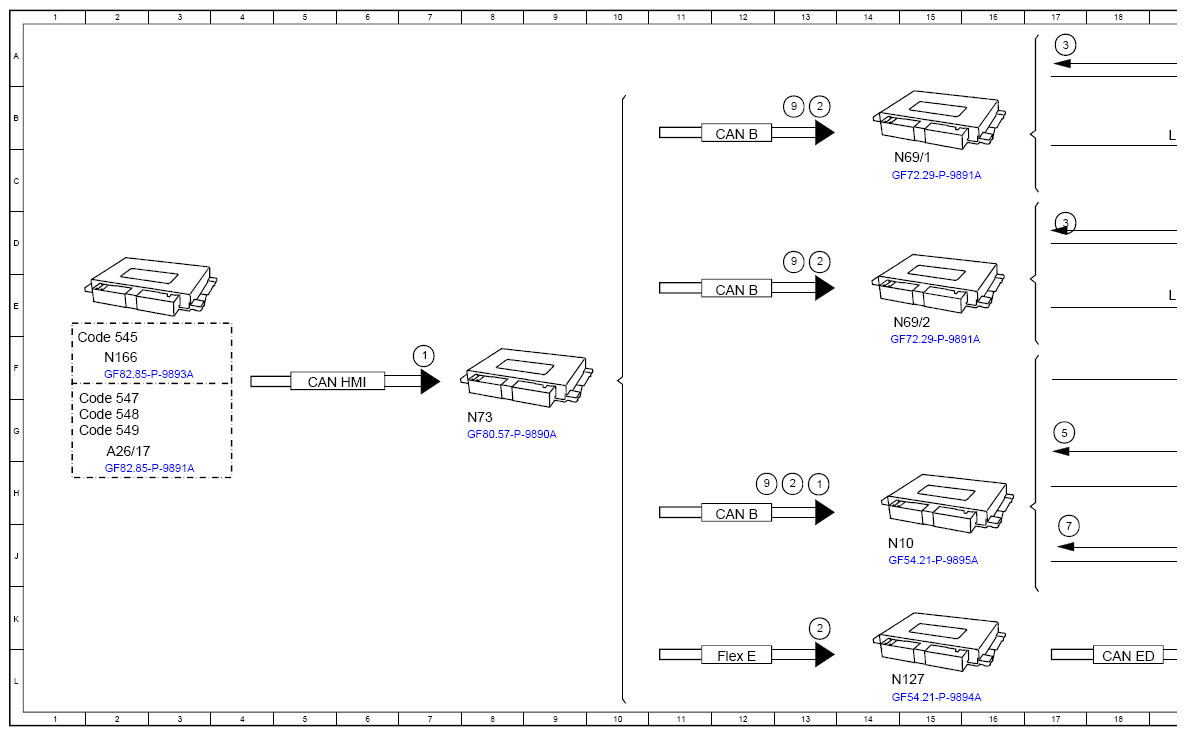

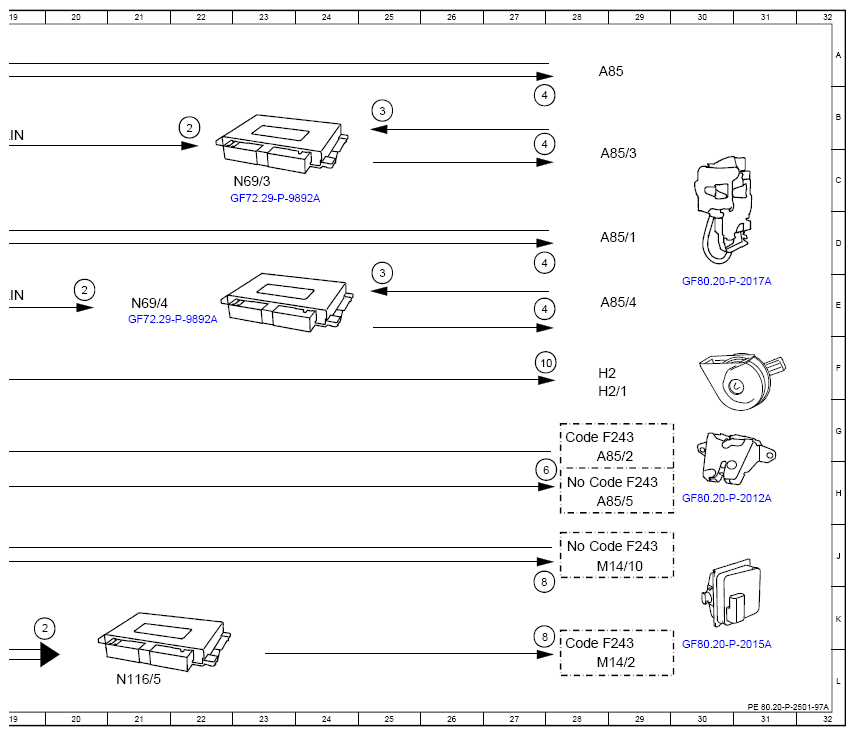

Function Schematic For Unlocking/Locking Vehicle Through Central Locking System - PE80.20-P-2501-97A
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Acoustic locking feedback, status | 7F |
| 1 | Acoustic locking feedback, status | 13H |
| 10 | Fanfare horns, actuation | 27F |
| 2 | Lock/unlock central locking, request | 22B |
| 2 | Lock/unlock central locking, request | 20E |
| 2 | Lock/unlock central locking, request | 13B |
| 2 | Lock/unlock central locking, request | 13D |
| 2 | Lock/unlock central locking, request | 13H |
| 2 | Lock/unlock central locking, request | 13K |
| 2 | Lock/unlock central locking, request | 20K |
| 3 | Main locking position microswitch, status | 17A |
| 3 | Main locking position microswitch, status | 17D |
| 3 | Main locking position microswitch, status | 25B |
| 3 | Main locking position microswitch, status | 25D |
| 4 | Central locking motor, actuation | 28B |
| 4 | Central locking motor, actuation | 28B |
| 4 | Central locking motor, actuation | 28D |
| 4 | Central locking motor, actuation | 28E |
| 5 | Trunk lid/liftgate lock main catch switch, status | 17G |
| 6 | Trunk lid/liftgate lock motor, actuation | 27G |
| 7 | Tank cap central locking actuator, status | 17J |
| 8 | Tank cap central locking actuator, actuation | 28J |
| 9 | Turn signal confirmation, request | 13B |
| 9 | Turn signal confirmation, request | 13D |
| 9 | Turn signal confirmation, request | 12H |
| A26/17 | Head unit | 2G |
| A85 | Driver door lock | 28A |
| A85/1 | Front passenger door lock | 29D |
| A85/2 | Liftgate latch | 28G |
| A85/3 | Left rear door lock | 29C |
| A85/4 | Right rear door lock | 29E |
| A85/5 | Trunk lid/liftgate lock | 28H |
| CAN B | Interior CAN | 12H |
| CAN B | Interior CAN | 12E |
| CAN B | Interior CAN | 12B |
| CAN ED | Electric drive system CAN | 18L |
| CAN HMI | User interface CAN | 5F |
| Code 545 | Connect 5 (NTG6) | 1F |
| Code 547 | Connect 20 Entry (NTG6) | 1G |
| Code 548 | Connect 20 MID (NTG6) | 1G |
| Code 549 | Connect 20 HIGH (NTG6) | 1G |
| Code F243 | MODEL SERIES 243 | 28G |
| Code F243 | MODEL SERIES 243 | 28H |
| Code F243 | MODEL SERIES 243 | 28K |
| Code F243 | MODEL SERIES 243 | 28J |
| Flex E | Chassis FlexRay | 12L |
| H2 | Left fanfare horn | 28F |
| H2/1 | Right fanfare horn | 28F |
| LIN | Local Interconnect Network | 19B |
| LIN | Local Interconnect Network | 19E |
| M14/10 | Tank cap central locking actuator | 28J |
| M14/2 | Socket flap central locking system actuator | 28L |
| N10 | Signal acquisition and actuation module | 14J |
| N116/5 | DC/DC converter charger | 21L |
| N127 | Drivetrain control unit | 15L |
| N166 | Head unit/instrument cluster control unit | 2F |
| N69/1 | Driver door control unit | 15C |
| N69/2 | Front passenger door control unit | 15E |
| N69/3 | Left rear door control unit | 23C |
| N69/4 | Right rear door control unit | 21E |
| N73 | Electronic ignition switch control unit | 8G |
