Power Window Assembly And Outside Mirror Adjustment Switch Group, Driver'S Side, Basic Function - GF72.29-P-2006A
Model All (4xWD)
Model All (CAR)

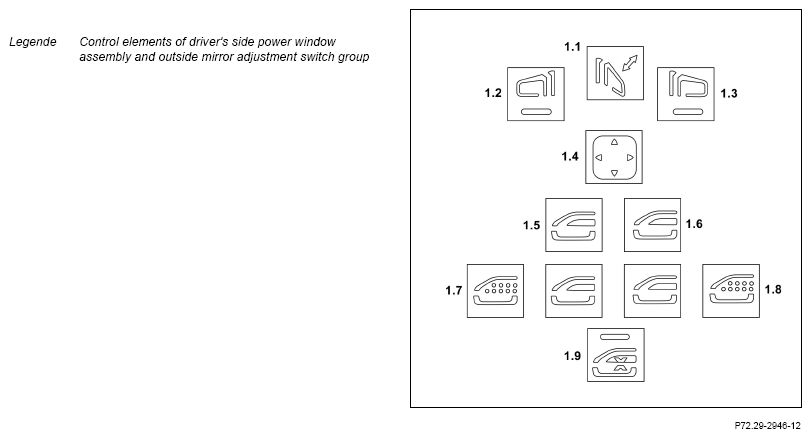

| Item | Function | Designation | Equipment |
|---|---|---|---|
| 1.1 | Fold out/in outside mirror | Outside mirror fold-in/fold-out switch | Vehicles with electric folding outside mirror |
| 1.2 | Select left outside mirror | Left outside mirror adjustment switch | - |
| 1.3 | Select right outside mirror | Right outside mirror adjustment switch | - |
| 1.4 | Change mirror glass adjustment | Outside mirror adjustment switch | - |
| 1.5 | Lower/raise left Front side window | Left Front power window switch | - |
| 1.6 | Lower/raise right Front side window | Right Front power window switch | - |
| 1.7 | Lower/raise left Rear side window | Left Rear power window switch | - |
| Extend/retract left Rear side window roller sunblind | - | Vehicles with roller sunblind in Rear doors | |
| 1.8 | Lower/raise right Rear side window | Right Rear power window switch | - |
| Extend/retract right Rear side window roller sunblind | - | Vehicles with roller sunblind in Rear doors | |
| 1.9 | Disable operation for side window in Rear | Rear side window child safety lock switch | - |

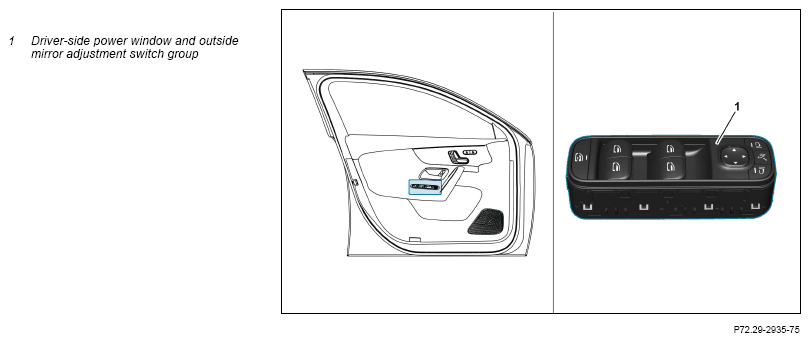

Location
The power window assembly and outside mirror adjustment switch group is located in the trim of the driver's door.
Task
The following functions can be operated using the power window assembly switch group and outside mirror adjustment:
- Power windows
- Electric outside mirrors
- Electrical child safety lock
- Electrical rear side window roller sunblinds (vehicles with roller sunblinds in rear doors)
The power window assembly and outside mirror adjustment switch group is connected to the driver's door control unit.
| Component description | |||
|---|---|---|---|
| Rear power window button group, component description | Model 223 | GF72.29-P-0007A | |
| Model 243 | GF72.29-P-0007B | ||
| Model 206 | GF72.29-P-0007C | ||
| Button group for Front passenger power window, component description | Model 223 | GF72.29-P-0008A | |
| Model 243 | GF72.29-P-0008B | ||
| Model 206 | GF72.29-P-0008C | ||
| Button group for driver-side power window, component description | Model 223 | GF72.29-P-0009A | |
| Model 243 | GF72.29-P-0009B | ||
| Model 206 | GF72.29-P-0009C |
