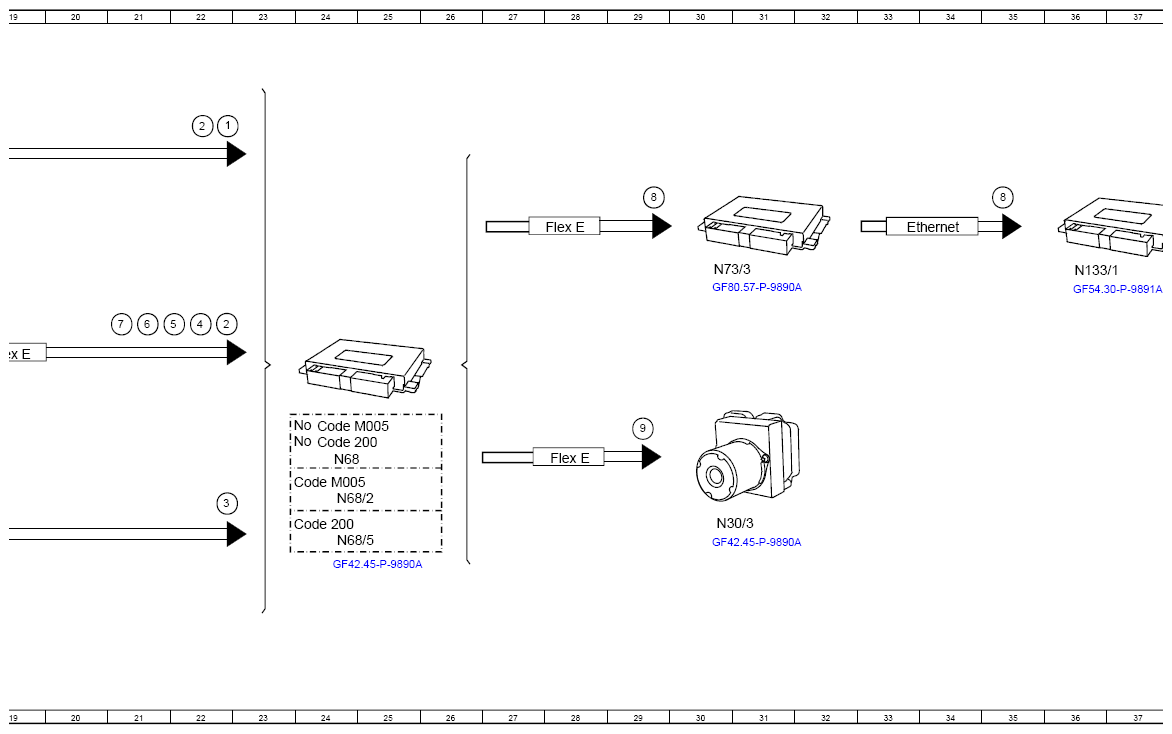

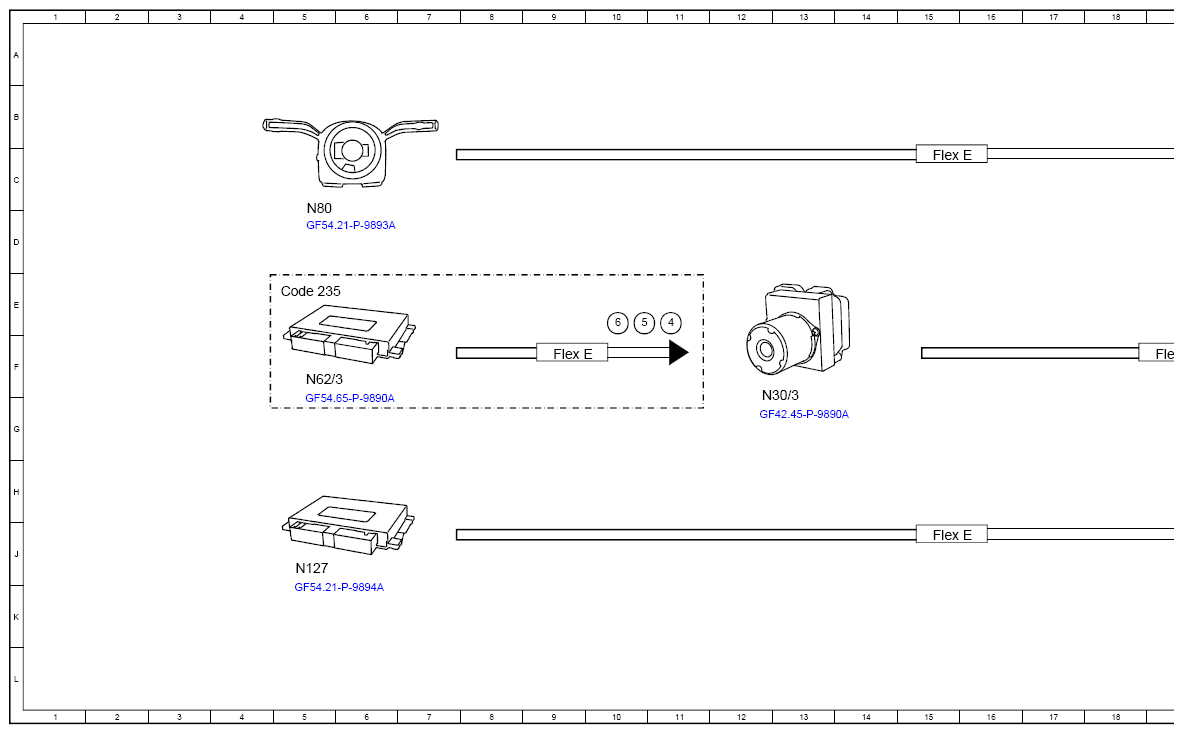

(Function Schematic For Electric Power Steering - PE46.35-P-2500-97E)
Model 206, 214, 236, 254, 294, 296
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Steering wheel angle, signal | 22C |
| 10 | Image data, signal | 41C |
| 2 | Steering wheel velocity, signal | 22C |
| 2 | Steering wheel velocity, signal | 22E |
| 3 | Engine management, communication | 23H |
| 4 | Parking system control unit, status | 11E |
| 4 | Parking system control unit, status | 22E |
| 5 | Vehicle stop, signal | 11E |
| 5 | Vehicle stop, signal | 22E |
| 6 | Electric power steering, request | 10E |
| 6 | Electric power steering, request | 21E |
| 7 | Steering assistance, request | 21E |
| 8 | Instrument cluster message, request | 29C |
| 8 | Instrument cluster message, request | 35C |
| 9 | Steer Assist, status | 29G |
| A40/18 | Instrument cluster display | 42E |
| Code 200 | Conditionally automated driving | 23J |
| Code 200 | Conditionally automated driving | 24G |
| Code 235 | Active Park Assist | 5E |
| Code M005 | Vehicles with 4MATIC/all-wheel drive | 24G |
| Code M005 | Vehicles with 4MATIC/all-wheel drive | 23H |
| Ethernet | Ethernet | 33D |
| Flex E | Chassis FlexRay | 28D |
| Flex E | Chassis FlexRay | 19F |
| Flex E | Chassis FlexRay | 15J |
| Flex E | Chassis FlexRay | 28H |
| Flex E | Chassis FlexRay | 15C |
| Flex E | Chassis FlexRay | 9F |
| HSVL | High-speed video link | 39D |
| N127 | Drivetrain control unit | 5J |
| N133/1 | Instrument cluster control unit | 36E |
| N30/3 | Electronic Stability Program control unit | 30J |
| N30/3 | Electronic Stability Program control unit | 12G |
| N62/3 | Parking system control unit | 5F |
| N68 | Power steering control unit | 24H |
| N68/2 | Power steering control unit | 24H |
| N68/5 | Power steering control unit | 24J |
| N73/3 | Electronic ignition switch control unit | 30E |
| N80 | Steering column module control unit | 5D |
