Remove/Install Engine Cooling System Fan Unit - AR20.40-P-5050MFD
Engine 260, 282 in model 118, 177, 247

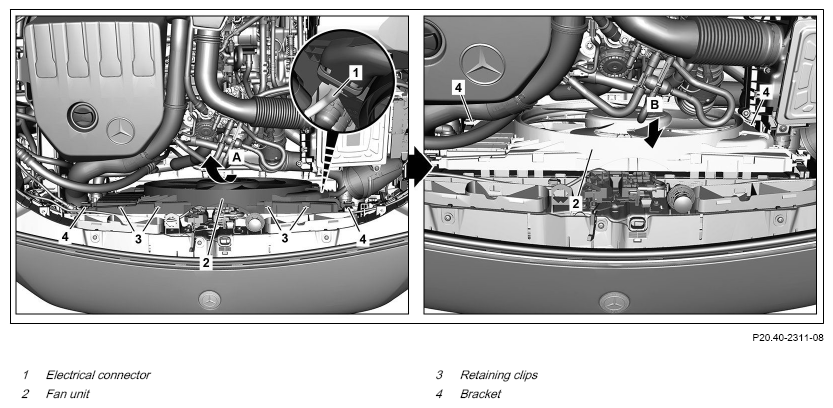

Fig 1: Engine Cooling System Fan Unit Components Location - Model 118 With Engine 260 (Shown On Model 177 With Engine 282)
Shown on model 177 with engine 282
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove engine air intake duct upstream of air filter. | ||
| 3 | Release and disconnect electrical connector (1) of fan unit (2). | ||
| 4 | Unlock retaining clamps (3) at the top of the fan unit (2) and push the fan unit (2) slightly downwards (arrow A). | ||
| 5 | Pull the fan unit (2) upwards out of the lower and upper brackets (4) and remove it (arrow B). | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run and check fan unit (2) for proper operation. |
