Remove/Install Alternator - AR15.40-P-5032MFC

Engine 260 in model 118, 177, 247

except code B01 (48V technology)

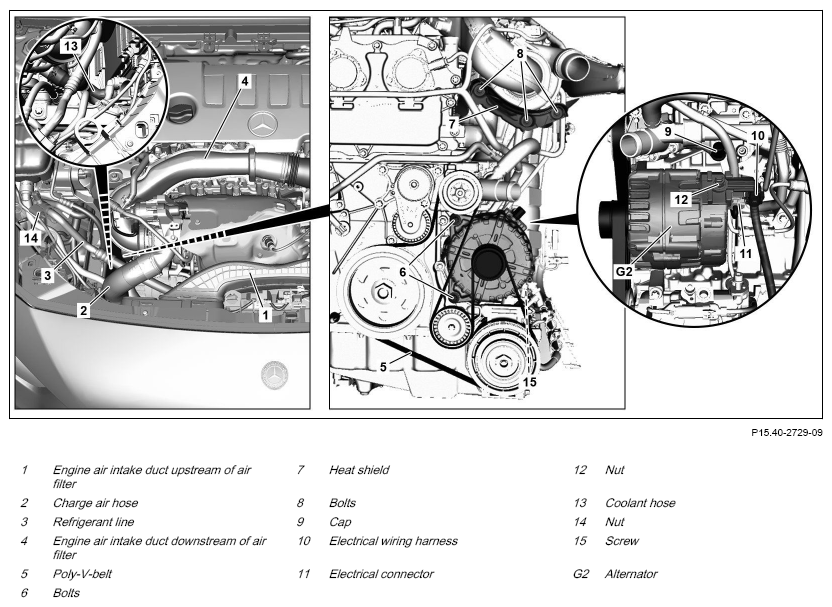

Fig 1: Alternator Components Location - Model 118 With Engine 260 Except Code B01 (Shown On Model 177 Except Code M016)
G16048558Courtesy of MERCEDES-BENZ USA

Shown on model 177 with engine 260 except code M016 (Performance-enhanced engine)

DANGER Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices.
Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.
No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. AS54.10-Z-0001-01A
DANGER Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. AS83.00-Z-0007-01A
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
WARNING Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. AS83.00-Z-0006-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice  Notes on coolant   AH20.00-P-2080-01KOA
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on handling refrigerant R134a   AH83.30-P-0003-01KOA
  Notes on handling refrigerant R1234yf   AH83.30-P-0003-02A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVINGINSTALLING Remove/install
1 Disconnect ground line of starter battery.   AR54.10-P-0003MFA
2 Discharge air conditioning system.   AR83.30-P-1760MFA
3 Drain off coolant.   AR20.00-P-1142MFC
4 Remove engine air intake duct upstream of air filter (1).
5 Remove engine air intake duct downstream of air filter (4).   AR09.10-P-8130MFC
6 Remove right charge air hose (2). Engine 260 in model 118, 177, 247 except code B01 (48V technology)
except code M016 (Uprated engine)
AR09.41-P-1311-01AL
    SPECIAL TOOL Set of protective covers Fig 3
7 Remove fan unit.   AR20.40-P-5050MFD
8 Insert cooler protective plate.
REFER TO SHOP-MADE TOOLS     WF58.50-P-0110-01A
9 Unscrew bolts (8) and remove side heat shield (7) at exhaust gas turbocharger. TORQUE SPECIFICATION Bolt/nut, heat shield to turbocharger *BA09.40-P-1009-02G
10 Remove nut (14) and remove refrigerant line (3). TORQUE SPECIFICATION Nut, refrigerant line connecting point *BA83.30-P-1002-01T
    SPECIAL TOOL Record plug Fig 5
11 Remove the poly-V-belt (5).   AR13.22-P-1202MFC
12 Remove coolant hose (13) at coolant pump, and remove cooler and place to one side. SPECIAL TOOL Hose clamp pliers Fig 4
13 Unscrew screw (15) at refrigerant compressor. TORQUE SPECIFICATION Bolt, refrigerant line to refrigerant compressor *BA83.55-P-1002-02F
14 Remove refrigerant line (3). INSTALLATION IMPORTANT Replace seals.
Wet seals with compressor oil.
SPECIAL TOOL Record plug
Fig 5
    SPECIAL TOOL Assembly tool Fig 2
15 Release and disconnect electrical connector (11) at alternator (G2).
16 Remove cover (9) from circuit 30 at alternator (G2).
17 Remove nut (12) at alternator (G2) and place electrical wiring harness (10) to one side. TORQUE SPECIFICATION Nut, circuit B+ to alternator *BA15.40-P-1002-01W
18 Unscrew bolts (6) at alternator (G2). INSTALLATION IMPORTANT Observe tightening procedure. AR15.40-P-0002-01MFA
    TORQUE SPECIFICATION Screw, alternator to timing case/major assembly carrier *BA15.40-P-1001-01W
19 Carefully remove alternator (G2) upwards.
20 Install in the reverse order.
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1009-02G Bolt/nut, heat shield to turbocharger Nm 8
ALTERNATOR

Number Designation Engine 260
BA15.40-P-1001-01W Screw, alternator to timing case/major assembly carrier Stage 1 Nm 8
Stage 2 Nm 20
ALTERNATOR

Number Designation Engine 260
BA15.40-P-1002-01W Nut, circuit B+ to alternator Nm 16
AIR CONDITIONING

Number Designation Model 118 Model 177
BA83.30-P-1002-01T Nut, refrigerant line connecting point M6 Nm 12 12
M8 Nm 20 20
AIR CONDITIONING

Number Designation Model 247
BA83.30-P-1002-01T Nut, refrigerant line connecting point M6 Nm 12
M8 Nm 20
REFRIGERANT COMPRESSOR

Number Designation Engine 260
BA83.55-P-1002-02F Bolt, refrigerant line to refrigerant compressor Nm 20
Fig 2: Identifying Assembly Tool (000 589 93 63 00)
G12939678Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Set Of Protective Covers (001 589 03 91 00)
G12081180Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Hose Clamp Pliers (454 589 00 37 00)
G12939525Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
