Steering Wheel Heater, Basic Function - GF46.11-P-9900A

Model All (CAR)

with code 443 (Heated steering wheel)

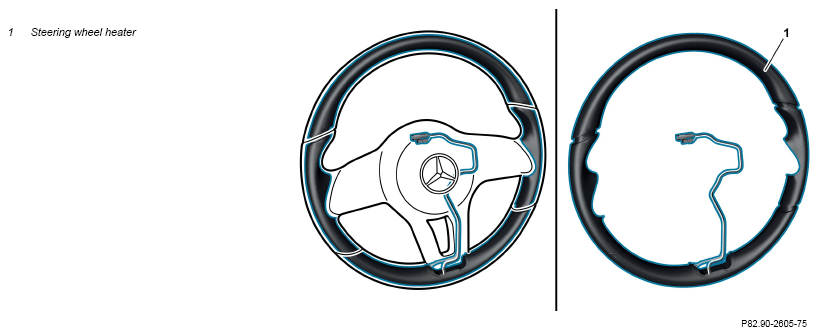

Example illustration of steering wheel heater

Fig 1: Steering Wheel Heater Components Location - Model All (Car) With Code 443

Courtesy of MERCEDES-BENZ USA

Overview

This document contains information on:

• General
• Function requirement
• Function

General

The steering wheel heater (1) increases the temperature on the steering wheel rim and so improves driver comfort, particularly in the event of low outside temperatures.

Function requirement

• Vehicle interior temperature below approx. 30°C

Function

The steering wheel heater (1) is controlled by the steering wheel electronics. Heat is provided by a heating element in the steering wheel rim.

A temperature sensor in the heating element records the surface temperature of the steering wheel rim. The steering wheel electronics read in the signals from the temperature sensor and regulate the surface temperature of the steering wheel rim to approx. 35°C.

Depending on the model series, the steering wheel heater (1) is operated by a switch on the steering column tube or using the central display. If the steering wheel heater (1) is switched on, an LED illuminates in the steering wheel heater switch (1).
