Function Schematic, ECO Start/Stop Function Energy Management - PE54.10-P-2500-97A
Model 118, 177, 247 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
Model 167 except code B01 (48V technology) except code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
| Code: | Designation: | Position: |
|---|---|---|
| A40/16 | Head unit/instrument cluster display cluster | 37H |

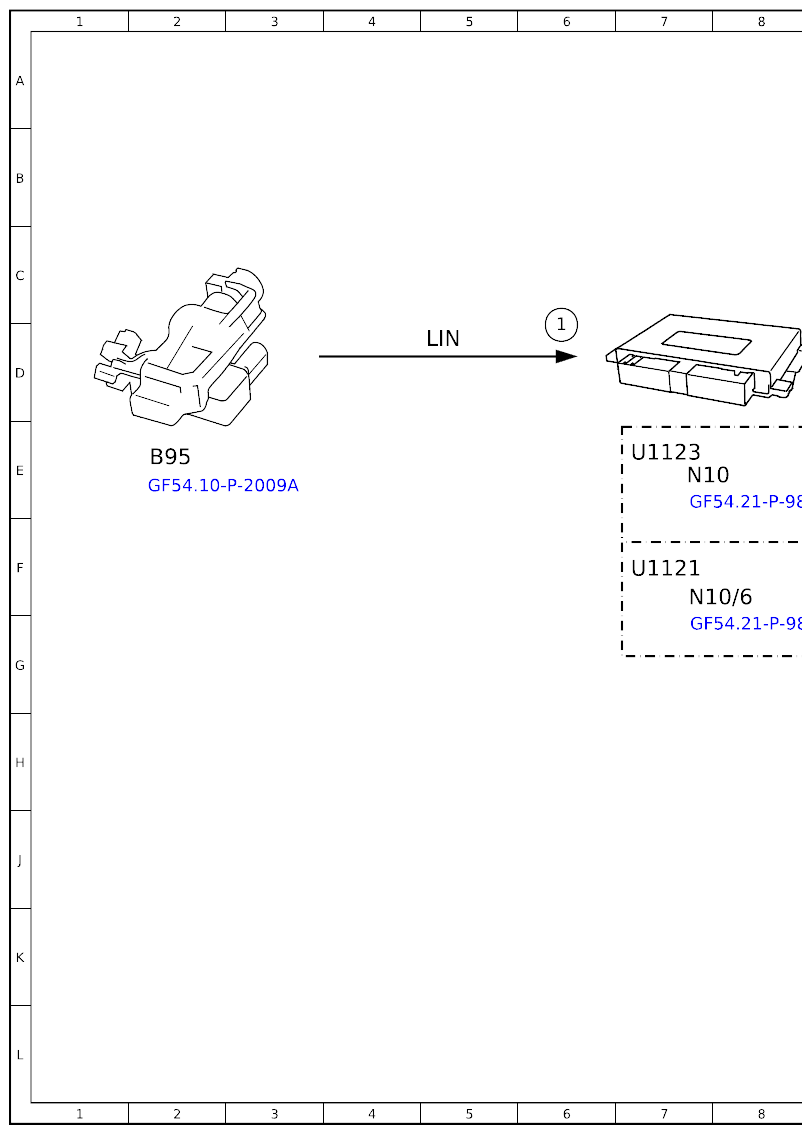

| B95 | Battery sensor | 2E |
| Code 545 | Connect 5 (NTG6) | 30H |
| Code 547 | Connect 20 Entry (NTG6) | 30J |
| Code 548 | Connect 20 MID (NTG6) | 30J |
| Code 549 | Connect 20 HIGH (NTG6) | 30K |

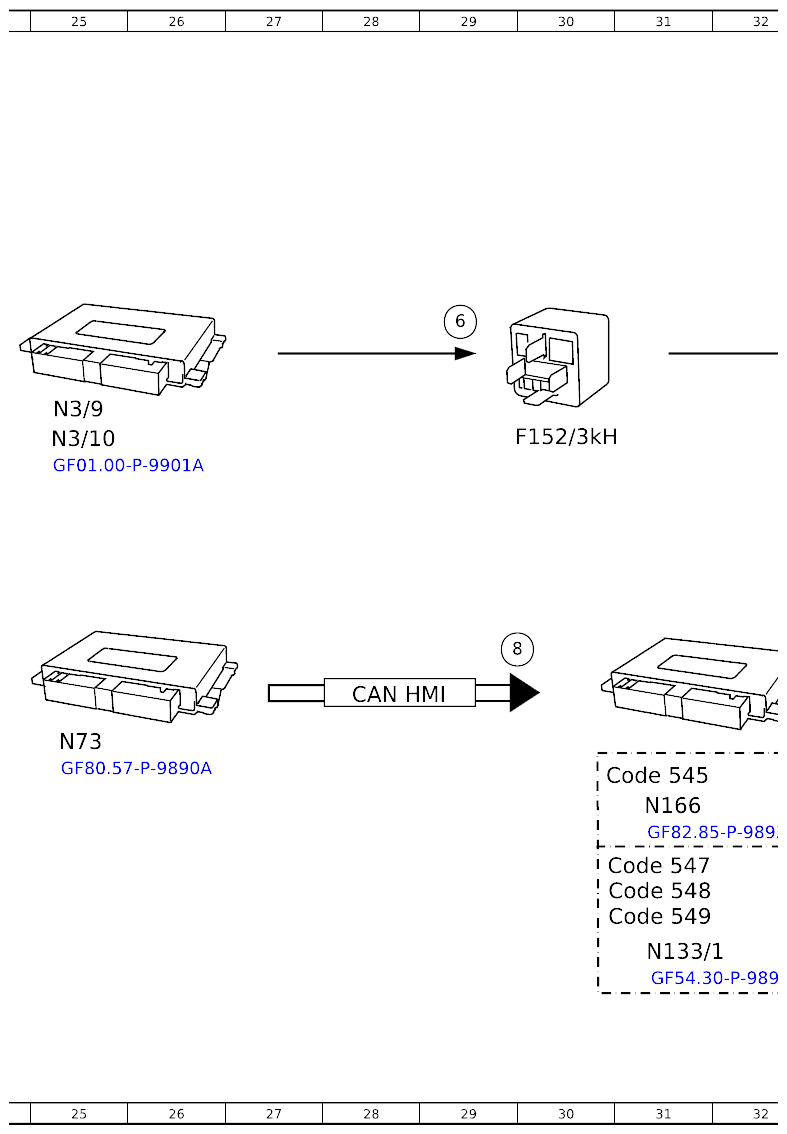

| F152/3kH | Circuit 50 relay | 30E |
| HSVL | High-speed video link | 34G |
| N3/9 | CDI control unit | 13H |
| N3/9 | CDI control unit | 25D |
| N3/10 | ME-SFI [ME] control unit | 13H |
| N3/10 | ME-SFI [ME] control unit | 25E |
| N10 | Central control module | 7E |
| N10/6 | - | 7F |

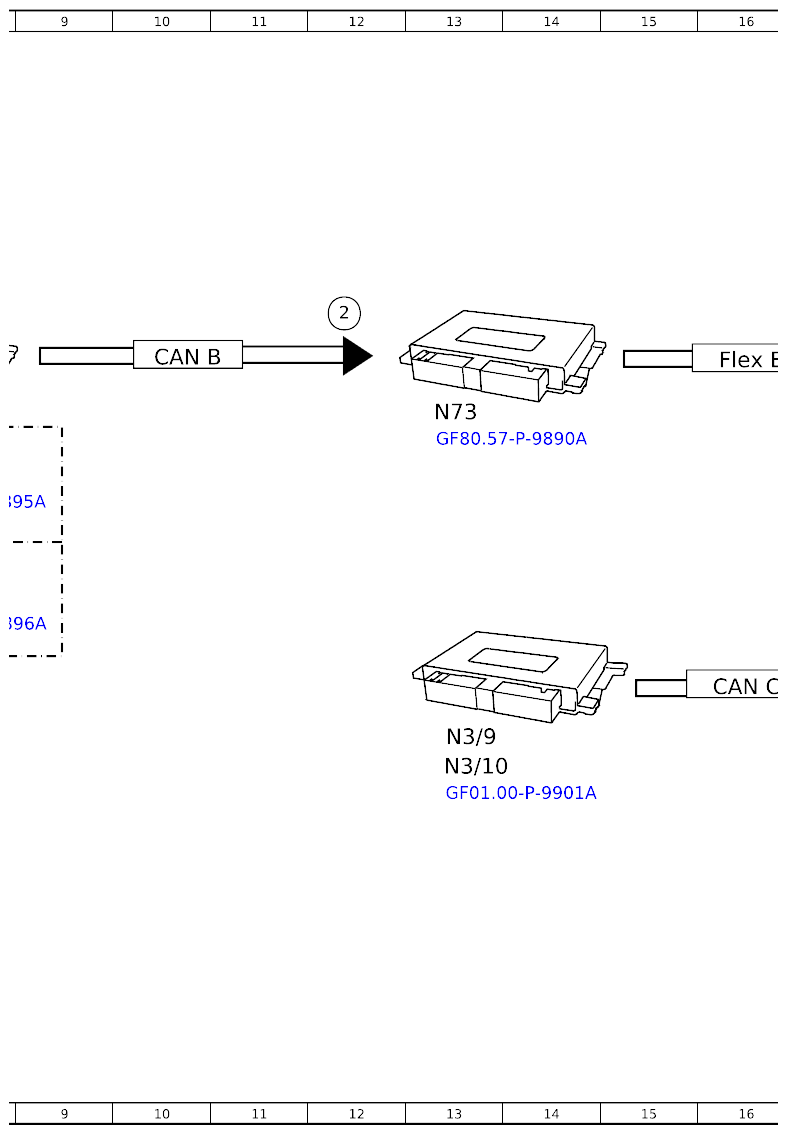

| N73 | Electronic ignition switch control unit | 25H |
| N73 | Electronic ignition switch control unit | 13D |

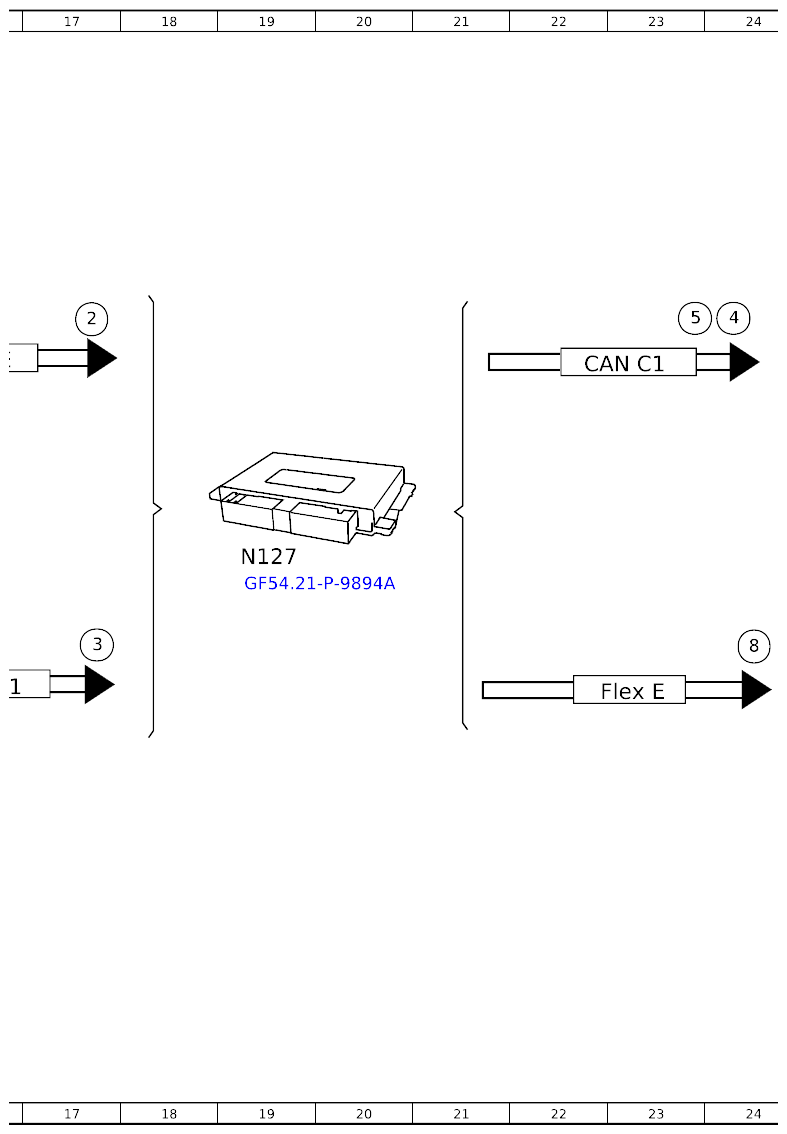

| N127 | Drivetrain control unit | 19F |
| N133/1 | Instrument cluster control unit | 31K |
| N166 | Head unit/instrument cluster control unit | 31J |

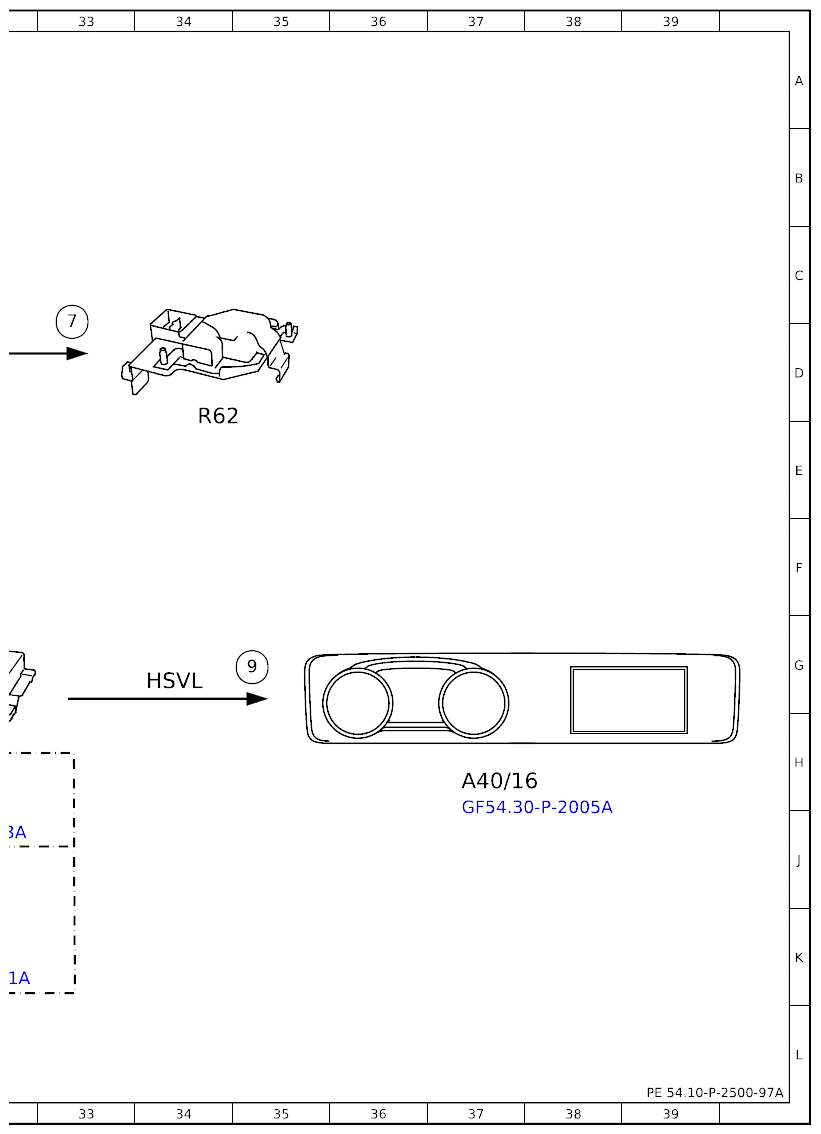

| R62 | Voltage dip limiter | 34E |
| U1121 | Valid for model 167 | 7F |
| U1123 | Valid for model 118, 177, 247 | 7E |
| CAN B | Interior CAN | 10D |
| CAN C1 | Drive train CAN | 16G |
| CAN C1 | Drive train CAN | 23D |
| CAN HMI | User interface CAN | 28G |
| Flex E | Chassis FlexRay | 23G |
| Flex E | Chassis FlexRay | 16D |
| LIN | Local Interconnect Network | 5D |
| 1 | Battery sensor, signal | 6D |
| 2 | On-board electrical system energy state, signal | 12C |
| 2 | On-board electrical system energy state, signal | 17D |
| 3 | Engine running, signal | 17G |
| 4 | Engine stop, request | 24C |
| 5 | Engine start, request | 23C |
| 6 | Starter circuit 50 relay, actuation | 29D |
| 7 | Circuit 50, status | 33D |
| 8 | Instrument cluster message, request | 24G |
| 8 | Instrument cluster message, request | 30G |
| 9 | Image data, signal | 35G |
