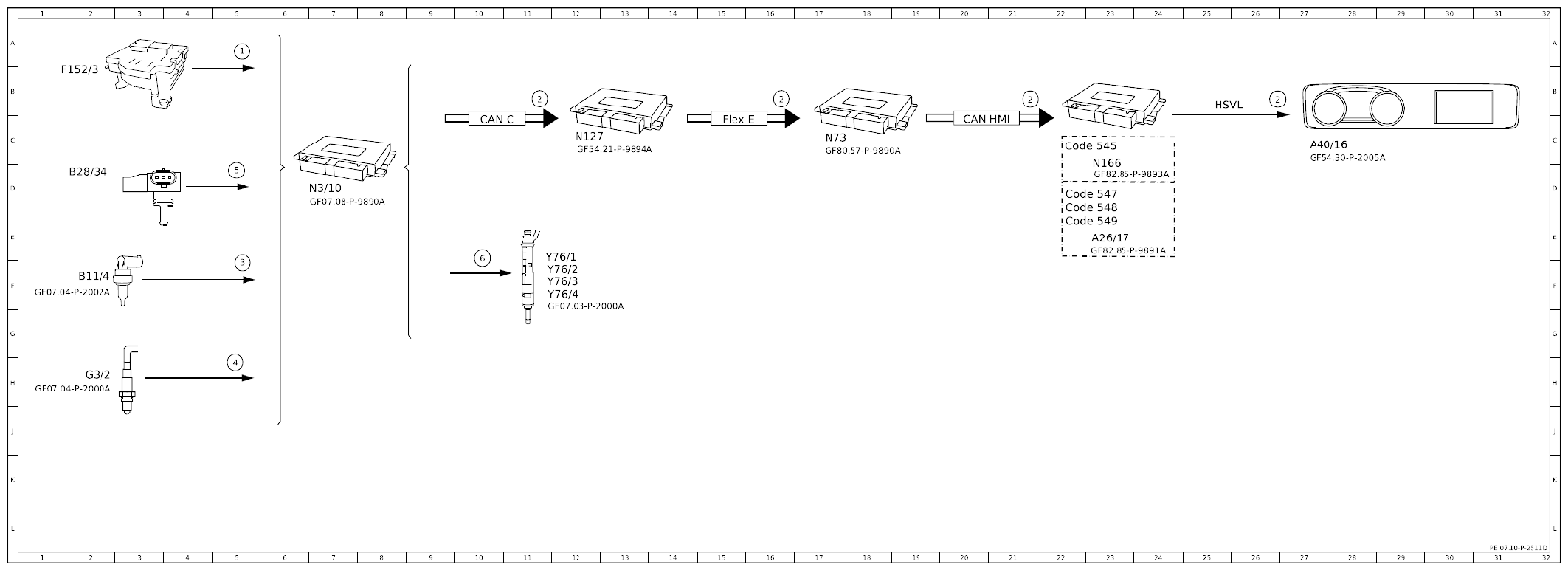

Function Schematic For Lambda Control - PE07.10-P-2511-97D
Engine 139 in model 118, 177, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 5L |
| 2 | Instrument cluster, message | 26B |
| 2 | Instrument cluster, message | 11B |
| 2 | Instrument cluster, message | 21B |
| 2 | Instrument cluster, message | 16B |
| 3 | Coolant temperature sensor, signal | 5P |
| 4 | Oxygen sensor, sensor element, signal | 5R |
| 5 | Pressure and temperature sensor downstream of throttle valve, signal | 5N |
| 6 | Fuel injectors, actuation | 10P |
| A26/17 | Head unit | 23P |
| A40/16 | Head unit/instrument cluster display cluster | 27N |
| B11/4 | Coolant temperature sensor | 2P |
| B28/34 | Intake manifold pressure and temperature sensor | 2N |
| CAN C | Engine CAN | 10M |
| CAN HMI | User interface CAN | 20M |
| Code 545 | Connect 5 (NTG6) | 22N |
| Code 547 | Connect 20 Entry (NTG6) | 220 |
| Code 548 | Connect 20 MID (NTG6) | 220 |
| Code 549 | Connect 20 HIGH (NTG6) | 220 |
| F152/3 | Engine compartment fuse and relay module | 2L |
| Flex E | Chassis FlexRay | 15M |
| G3/2 | Oxygen sensor upstream of catalytic converter | 2R |
| HSVL | High-speed video link | 25M |
| N127 | Drivetrain control unit | 12M |
| N166 | Head unit/instrument cluster control unit | 23N |
| N3/10 | ME-SFI [ME] control unit | 70 |
| N73 | Electronic ignition switch control unit | 17N |
| Y76/1 | Cylinder 1 fuel injector | 12P |
| Y76/2 | Cylinder 2 fuel injector | 12P |
| Y76/3 | Cylinder 3 fuel injector | 12P |
| Y76/4 | Cylinder 4 fuel injector | 12Q |
