Pedestrian Protection Sensor, Basic Function - GF91.60-P-2016A

Model All (CAR)

with code U60 (Pedestrian protection - Active hood)

Overview

This document contains information on:

• General
• Function

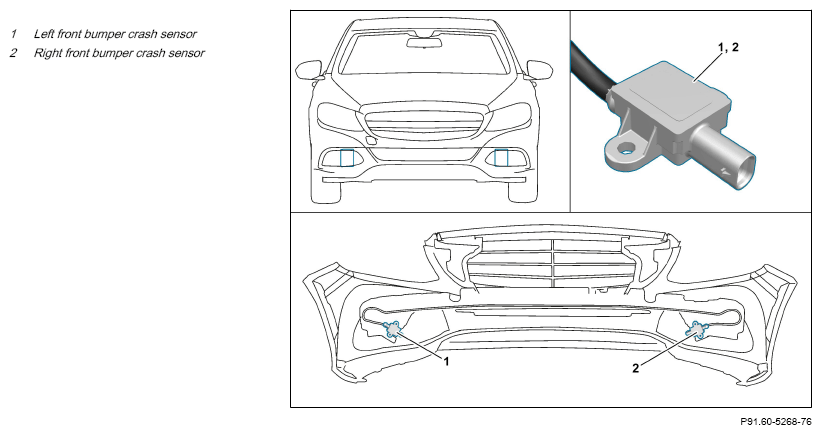

Example illustration of bumper impact sensors

Courtesy of MERCEDES-BENZ USA

General

The left and right front bumper impact sensors (1, 2) are located at the left and right in the front bumper. The impact sensors detect an impact at the front area of the vehicle. In the event of an impact, measures are initiated that increase the protection of pedestrians and other unprotected road users.

Function

The left and right front bumper impact sensors (1, 2) are connected to each other through a hose. They record the pressure in this hose. If the pressure increases as a result of an impact when the bumper is pressed in, the signals are evaluated by the supplemental restraint system (SRS) control unit.. Corresponding protection countermeasures are then initiated.
