Weight Sensing System Control Unit, Basic Function - GF91.60-P-9891A
Model All (CAR)
with code U10 (Front passenger seat with weight sensor)

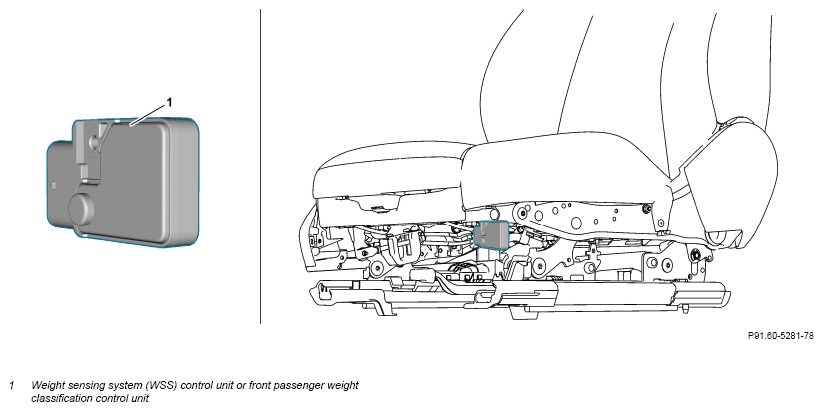

Example illustration of weight sensing system control unit
Overview
This document contains information on:
- General
- Function
General
The WSS/weight classification control unit (1) uses sensors or a sensor mat to determine the weight applied on a seat and provides the determined values to the restraint system control unit for precise control of the deployment stages of the airbag, among other things.
Function
The WSS/weight classification control unit (1) determines the weight on the front passenger seat by means of a pressure measurement in a silicone-filled seat mat.
The WSS/weight classification control unit (1) reads in the signals of the WSS sensor directly and sends them to the Supplemental Restraint System (SRS) control unit, the powertrain control unit and/or the telematics services communication module, depending on the equipment installed.
| Component descriptions | |||
| Component description for Weight Sensing System (WSS) control unit | Model 223 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4046A | |
| Model 206 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4046C | ||
| Model 297 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4046D | ||
| Model 295 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4046E | ||
| Model 232 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4046F | ||
| Model 296 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4046G | ||
| Model 254 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4046H | ||
| Model 214 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4046K | ||
| Model 118 as of model year 2023 with code U10 (Front passenger seat with weight sensor) Model 177, 247 as of model year 2022 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4046L | ||
| Model 294 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4046N | ||
| Component description for Weight Sensing System (WSS) control unit | Model 243 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4069B | |
| Model 118 as of model year 2023 with code U10 (Front passenger seat with weight sensor) Model 177, 247 as of model year 2022 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4069L | ||
| Model 167 as of model year 2023 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4069M |
